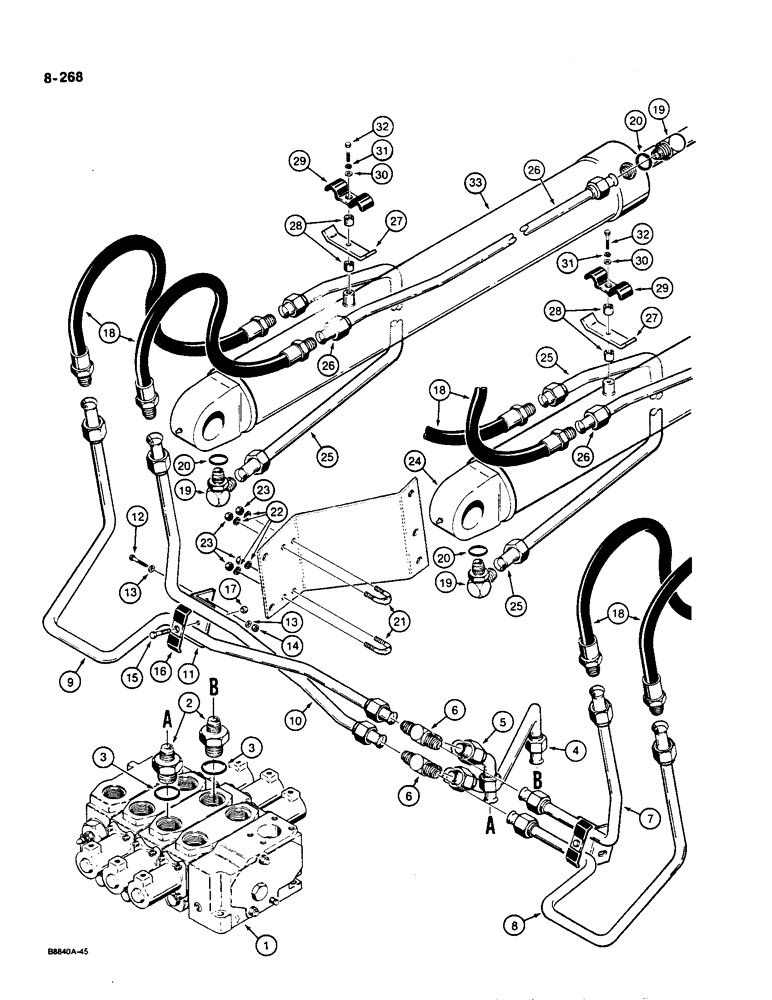

Запчасти Case W36 (8-268) - LOADER BUCKET HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - loader control see Figure 8-284 for correct valve and components

1шт.

2

218-5086

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

ADAPTER - straight, male, Includes: Ref. 3

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

4

L72129

TUBE,1" OD

- rod end of cylinder

1шт.

5

L72131

PIPE,1" OD x 6.07, 2.85" L

TUBE - head end of cylinder

1шт.

6

218-598

TEE,1 5/16"-12 37 Degree

- bucket cylinders

2шт.

7

L79829

TUBE,1" OD x 17.43, 11.01" L

- right-hand, to head end of cylinder

1шт.

8

L79827

TUBE ASSY.,1" OD

TUBE - right-hand, to rod end of cylinder

1шт.

9

L79547

TUBE,1" OD

- left-hand, to head end of cylinder

1шт.

10

L79549

TUBE ASSY.,1" OD x 19.71, 27.18" L

TUBE - left-hand, to rod end of cylinder

1шт.

11

L47468

BRACKET

- tube mounting

2шт.

12

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

13

195-104

WASHER,3/8"

- flat, , plated 3/8"

8шт.

14

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC

4шт.

15

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

16

L102739

CLAMP

- tube

2шт.

17

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

18

L112987

HOSE

- 50" (1270 mm) long, hydraulic control valve to bucket cylinders

4шт.

19

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, adjustable, Incl. Ref. 20

4шт.

20

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

21

L78947

U-BOLT

- special

8шт.

22

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

16шт.

23

9635082

NUT,5/16" - 18, Gr 5

16шт.

24

E156086

CYLINDER

ASSEMBLY - tilt, right-hand, parts list Figure 8-282

1шт.

25

E156083

HYD TUBE,25.4 mm OD x 514, 206.5 mm L

TUBE - to cylinder head end

2шт.

26

E156081

TUBE

- to cylinder rod end

2шт.

27

L47503

BRACKET

CLAMP - tube

2шт.

28

D35217

BUSHING

SPACER - tube

4шт.

29

L26312

CLAMP

- tube

2шт.

30

195-104

WASHER,3/8"

- flat, , plated 3/8"

2шт.

31

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

32

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

33

E156087

CYLINDER

ASSEMBLY - tilt, left-hand, parts list Figure 8-282

1шт.
