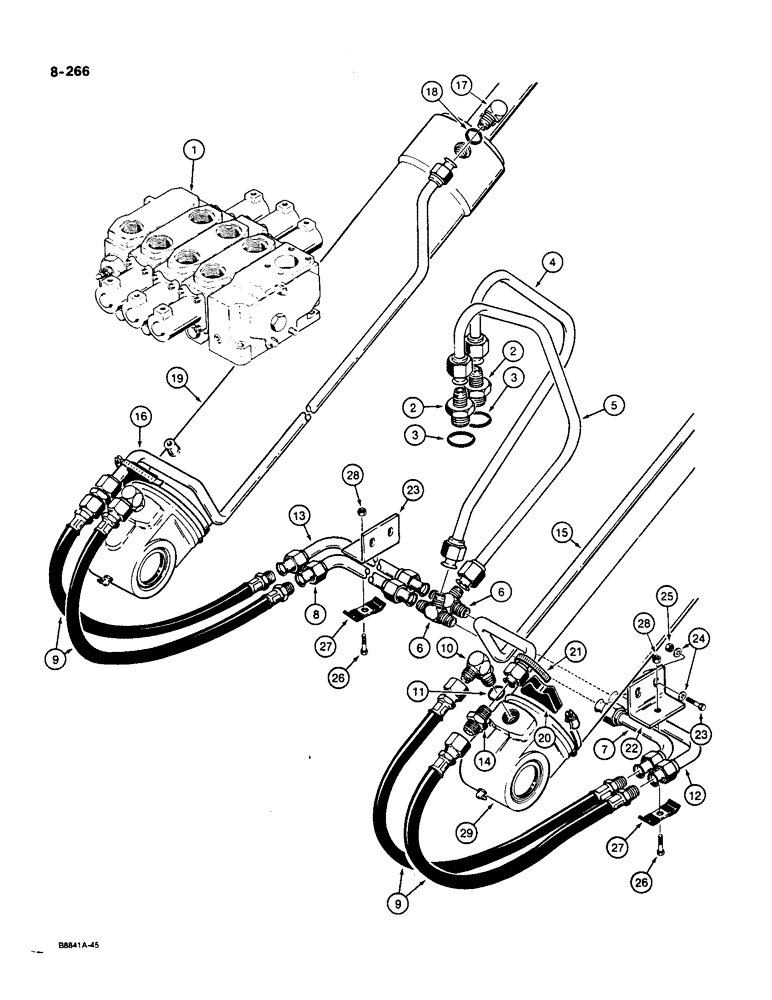

Запчасти Case W36 (8-266) - LOADER LIFT HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - hydraulic control, see Figure 8-284 for correct valve and components

1шт.

2

218-5086

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

ADAPTER - straight, male, Includes: Ref. 3

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

4

L103626

TUBE,1" OD

- head end, lift

1шт.

5

L123764

TUBE ASSY.,1" OD

TUBE - rod end, lift

1шт.

6

218-598

TEE,1 5/16"-12 37 Degree

- lift cylinder

2шт.

7

L71947

TUBE ASSY.,1" OD x 8.47, 4.08" L

TUBE - right-hand, head end

1шт.

8

L71949

TUBE ASSY.,1" OD x 34.07, 4.08" L

TUBE - left-hand, head end

1шт.

9

L112988

HYDRAULIC HOSE

HOSE - 37" (940 mm) long, hydraulic control valve to lift cylinders

4шт.

10

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, adjustable, Incl. Ref. 11

2шт.

11

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

12

L71964

TUBE ASSY.,1" OD x 10.47, 6.33" L

TUBE - right-hand, rod end

1шт.

13

L71966

TUBE ASSY.,1" OD x 36.07, 6.35" L

TUBE - left-hand, rod end

1шт.

14

218-739

UNION,1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree

ADAPTER - straight

2шт.

15

E155982

TUBE ASSY.

TUBE - right-hand cylinder, rod end

1шт.

16

E156001

TUBE

- left-hand cylinder, rod end

1шт.

17

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, adjustable, Incl. Ref. 18

2шт.

18

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

19

E155977

CYLINDER

ASSEMBLY - lift, left-hand, parts list Figure 8-280

1шт.

20

L79937

SADDLE

CUSHION - rubber

2шт.

21

214-285

HOSE CLAMP,#136, 8.12" - 9", Type F Worm

CLAMP - tube

2шт.

22

L47468

BRACKET

- tube mounting

2шт.

23

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

24

95-6

WASHER,3/8"

- flat, 3/8"

8шт.

25

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC

4шт.

26

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex head, 3/8" - 16 NC x 1-3/4"

2шт.

27

L102739

CLAMP

- tube

2шт.

28

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

29

E155976

CYLINDER

ASSEMBLY - lift, right-hand, parts list Figure 8-280

1шт.
