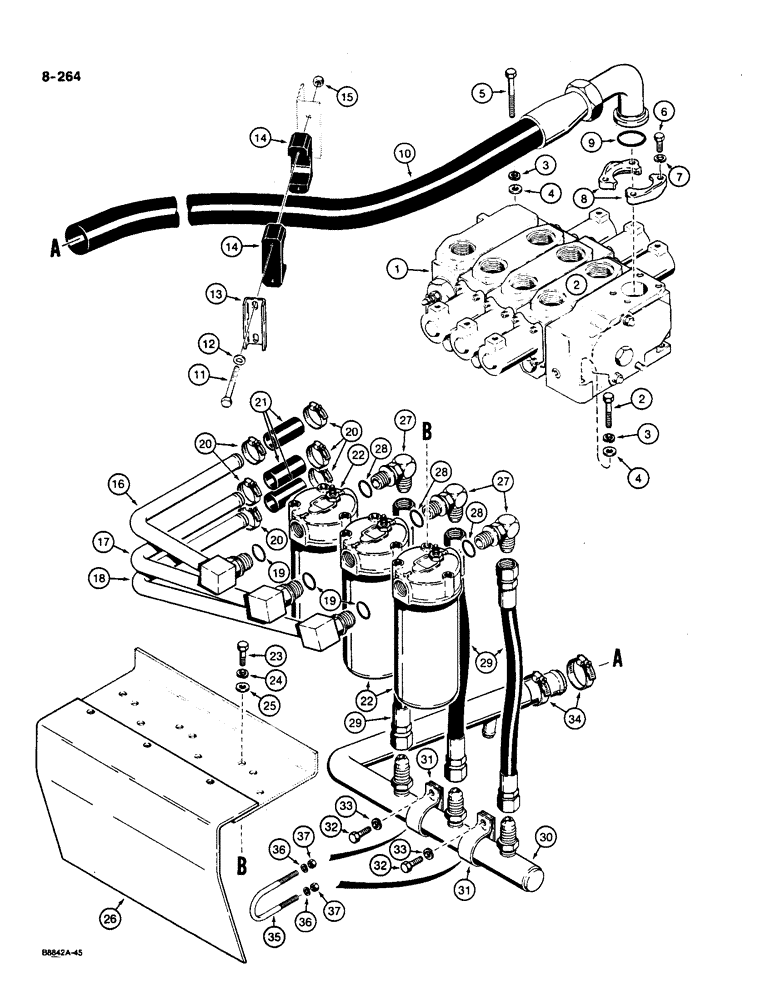

Запчасти Case W36 (8-264) - LOADER HYDRAULIC CIRCUIT, VALVE TO FILTER AND HYDRAULIC RESERVOIR (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - loader control, see Figure 8-284 for correct valve and components

1шт.

2

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

4

195-106

WASHER,1/2"

- flat, , plated 1/2"

3шт.

5

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex head, 1/2" - 13 NC x 2-1/2", plated

2шт.

6

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

7

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

8

A14141

FLANGE

SPLIT FLANGE - tube

2шт.

9

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

- split flange

1шт.

10

E97069

HOSE

- 2325 mm long, return

1шт.

11

113-259

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

4шт.

12

195-104

WASHER,3/8"

- flat, , plated 3/8"

4шт.

13

L76698

ANGLE

BRACKET - hose clamp

2шт.

14

L116651

BLOCK

- two piece, hose clamp

2шт.

15

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC

4шт.

16

E156955

TUBE,25.4 mm OD x 198, 112 mm L

- return, left-hand filter

1шт.

17

E156951

TUBE,25.4 mm OD x 268, 172 mm L

- return, center filter

1шт.

18

E156953

TUBE,25.4 mm OD x 428, 146 mm L

- return, right-hand filter

1шт.

19

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- tube

1шт.

20

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

6шт.

21

D38435

HOSE,1" ID x 1 1/2" OD 3.5" L

- 1" (25 mm) ID x 3-1/2" (89 mm), Serial Range: long,-tank

3шт.

22

L114122

FILTER

ASSEMBLY - hydraulic return, parts list Figure 8-278

3шт.

23

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 3/4", plated

9шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

9шт.

25

195-104

WASHER,3/8"

- flat, , plated 3/8"

9шт.

26

E156239

COVER PLATE

GUARD - hydraulic filters

1шт.

27

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, adjustable, Incl. Ref. 28

3шт.

28

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

29

E155949

HYDRAULIC HOSE,25.40 mm ID x 490.00 mm, SAE J516, SAE J517 Type 100R3

Return to Filter 25.40 mm ID x 490.00 mm, SAE J516, SAE J517 Type 100R3

3шт.

30

E155937

TUBE

- manifold, Serial Range: return-filters

1шт.

31

R14097

CLAMP

- tube, if used

2шт.

32

13-88

BOLT - hex head, 1/2" - 13 NC x 1/2", if used

2шт.

33

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , If used 1/2"

2шт.

34

214-377

CLAMP,#50, 2.44"-2.75", T-Bolt

- hose

2шт.

35

E155913

U-BOLT

CLAMP - U-type, tube, if used

2шт.

36

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

37

9635082

NUT,5/16" - 18, Gr 5

4шт.
