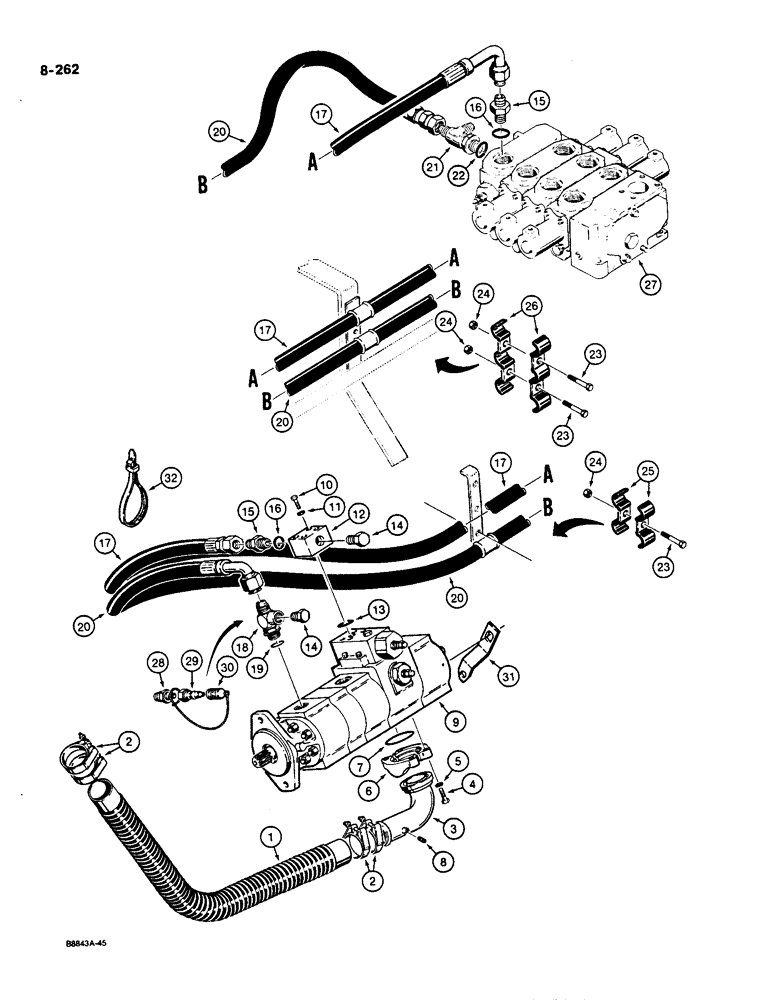

Запчасти Case W36 (8-262) - LOADER HYDRAULIC CIRCUIT, HYDRAULIC RESERVOIR TO PUMP AND VALVE (08) - HYDRAULICS

1

E155968

HOSE

- 2-1/2" (64 mm) ID x 28" (711 mm) long, Serial Range: reservoir-pump

1шт.

2

214-355

CLAMP,#64, 2.87"-3.18", T-Bolt

- hose

2-4шт.

3

E68304

TUBE,0.36" ID x 0.59" OD x 70, 3.9" L

- suction

1шт.

4

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

5

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

6

L14386

CLAMP

SPLIT FLANGE - tube

2шт.

7

L53822

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

- split flange

1шт.

8

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - square head, 1/8" NPT

1шт.

9

L72333

PUMP

- steering and loader, parts list Figures 8-272 - 8-276

1шт.

10

113-351

BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5

4шт.

11

81547

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

12

L72248

BLOCK

- tee

1шт.

Ref. 21 - Special Feature units equipped with 4 spool valve use L301517 45 degree fitting at this location

1шт.

13

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

- block

1шт.

14

221-655

PLUG,Hex Hd, 3/4"-14

- hex head, 3/4" NPT

2шт.

15

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, male, Incl. Ref. 16

2шт.

16

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

17

E156017

HOSE

- 2896 mm long, pump to loader valve

1шт.

18

L53125

TEE

- special, Includes: Ref. 19

1шт.

19

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- tee

1шт.

20

E156018

HOSE

- 2921 mm long, pump to loader valve

1шт.

21

218-5245

TEE,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- adjustable, Includes: Ref. 22

1шт.

22

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- tee

1шт.

23

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

3шт.

24

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC

3шт.

25

L103288

CLAMP

- hose

2шт.

26

L102862

CLAMP

- hose

2шт.

27

REF

INSTRUCTION

VALVE - loader control, see Figure 8-284 for correct valve and components

1шт.

28

217-1092

HYD CONNECTOR,3/4"-14 NPTF x 1/4"-18 NPTF

CONNECTOR - straight, if used

1шт.

29

S206607

DISC

COUPLING - if used

1шт.

30

D123387

DUST CAP

COVER - dust, if used

1шт.

31

E97844

SUPPORT

- pump, use existing hardware

1шт.

32

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
