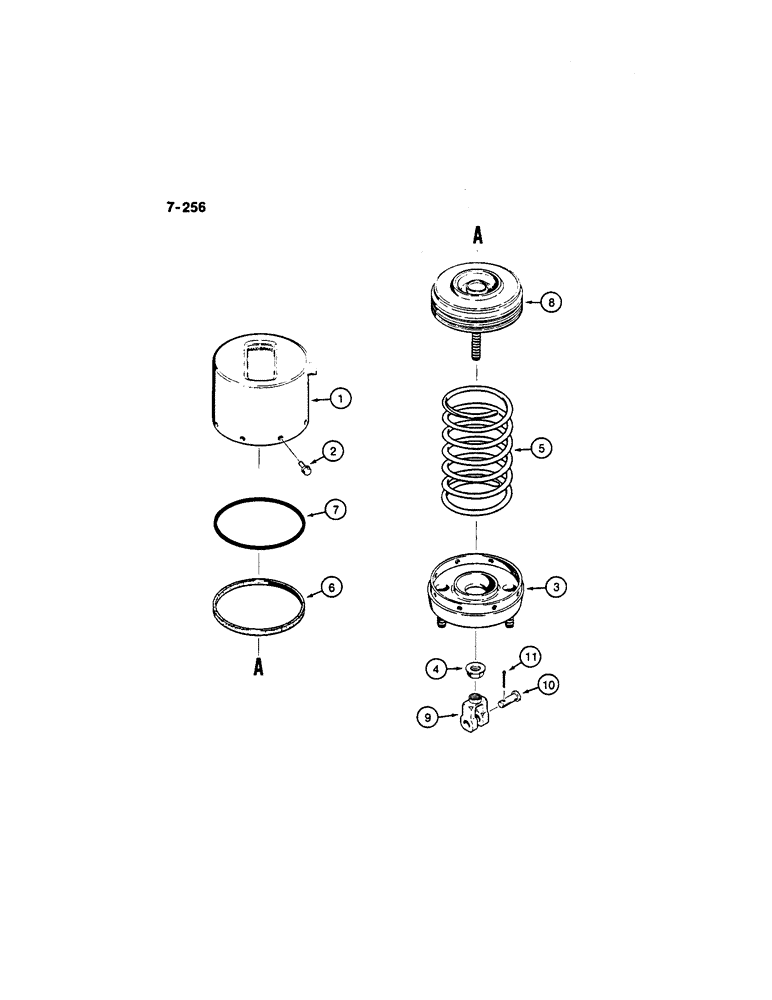

Запчасти Case W36 (7-256) - PARKING BRAKE ACTUATOR AND BRAKE FLUID RESERVOIR PARKING (07) - BRAKES

L112239

CHAMBER

ACTUATOR ASSEMBLY - parking brake, L112239, Includes: Ref. 1 - 11

1шт.

1

N8657

CYLINDER

- brake actuator, parking, L112239

1шт.

2

121-124

BOLT,Hex Flg, 5/16"-24 x 1/2", Serr

- hex flange head, self-locking, 5/16" - 24 NF x 1/2", plated, parking brake actuator, L112239

8шт.

3

N6900

PLATE

- mounting, plated, parking brake actuator, L112239

1шт.

4

S89907

FLANGE NUT

- flange, 5/8" - 18 NF, plated, parking brake actuator, L112239

1шт.

5

S87131

SPRING

- piston return, plated, parking brake actuator, L112239

1шт.

6

S89912

WIPER

- felt, plated, parking brake actuator, L112239

1шт.

7

21295R1

O-RING,5.725" ID x 6.275" OD x 0.275"

- large, plated, parking brake actuator, L112239

1шт.

8

N8658

PISTON

- brake actuator, plated, parking brake actuator, L112239

1шт.

L35613

YOKE

CLEVIS ASSEMBLY - parking brake actuator, L112239, Includes: Ref. 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

CLEVIS - shaft, parking brake actuator, L112239

1шт.

10

NSS

NOT SOLD SEPARAT

PIN - clevis, parking brake actuator, L112239

1шт.

11

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4", parking brake actuator, L112239

1шт.

L71279

TANK

RESERVOIR ASSEMBLE - brake fluid, parking actuator, L112239

1шт.
