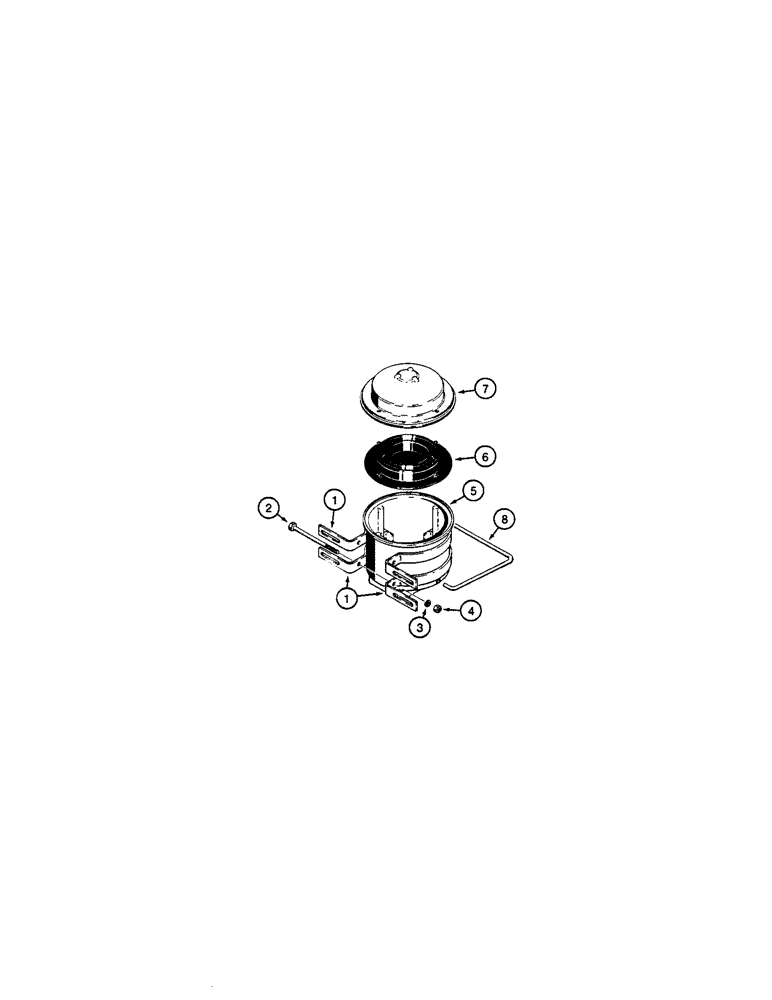

Запчасти Case W36 (7-256[1]) - BRAKE FLUID RESERVOIR - L71279 (07) - BRAKES

1

NSS

NOT SOLD SEPARAT

BRACKET - reservoir

2шт.

2

13-464

BOLT,Hex, 1/4" - 20 x 4", Gr 5

- hex head, 1/4" - 20 NC x 4"

2шт.

3

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

4

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

5

NSS

NOT SOLD SEPARAT

BODY - reservoir

1шт.

6

D75884

DIAPHRAGM

- reservoir

1шт.

7

D75883

COVER

- reservoir

1шт.

8

D75882

BAIL

- reservoir

1шт.
