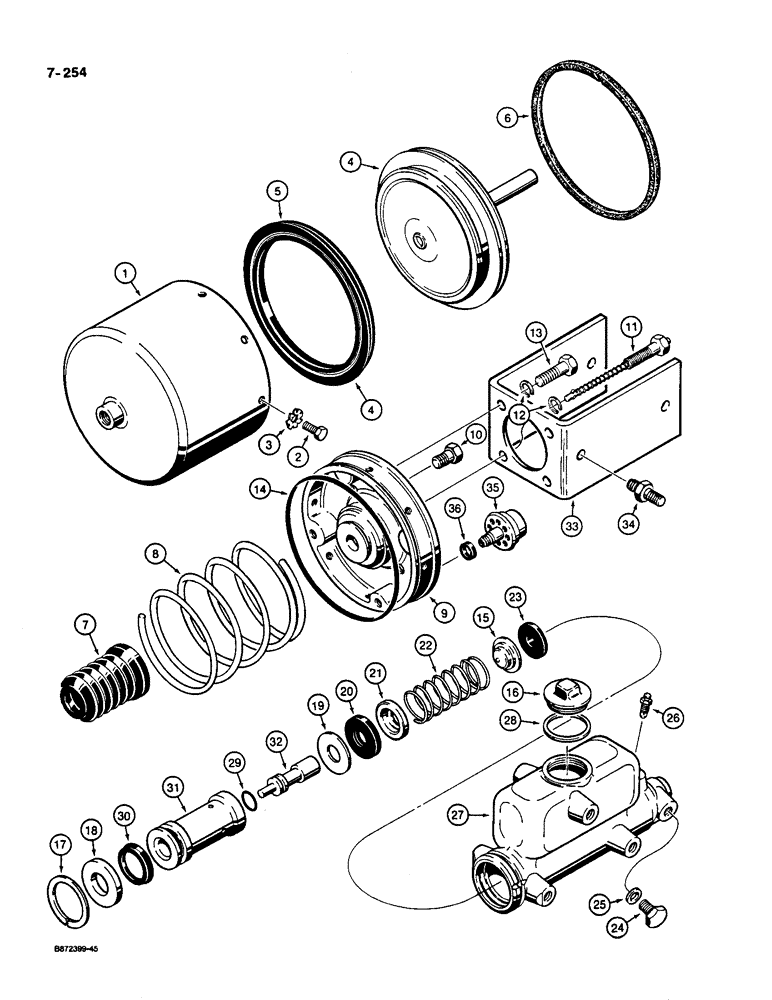

Запчасти Case W36 (7-254) - BRAKE ACTUATOR - L107177 (07) - BRAKES

L107177

MASTER CYLINDER

ACTUATOR ASSEMBLY - brake, Includes: Ref. 1 - 37

2шт.

N8015

CYLINDER

AIR CHAMBER ASSEMBLY - brake actuator, Includes: Ref. 1 - 14

1шт.

1

D78273

COVER

- air chamber assembly

1шт.

2

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

8шт.

3

193-45

WASHER,Ext-Int Tooth, 5/16"

- external-internal tooth lock, 5/16"

8шт.

4

NSS

NOT SOLD SEPARAT

PISTON AND ROD ASSEMBLY - air chamber

1шт.

5

L32785

SEAL

CUP - piston packing, air chamber

1шт.

6

L32784

WIPER

SEAL - piston

1шт.

7

D78277

BOOT

- piston rod

1шт.

8

D78276

SPRING

- return piston

1шт.

9

NSS

NOT SOLD SEPARAT

HEAD - for service order N8015 air chamber assembly

1шт.

10

14-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

- hex head, 1/2" - 20 NF x 3/4", used as plug

1шт.

11

D78274

INDICATOR

- stroke

1шт.

12

92-6

LOCK WASHER,3/8"

4шт.

13

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

3шт.

14

A40052

O-RING,0.139" Thk x 6.48" ID, -260, Cl 5, 75 Duro

- air chamber head

1шт.

N6324

CYLINDER

MASTER CYLINDER ASSEMBLY - brake actuator, Includes: Ref. 15 - 32

1шт.

15

NSS

NOT SOLD SEPARAT

VALVE - check

1шт.

Part of kit P/N N6722.

1шт.

16

D78284

FILLER CAP

CAP - filler

1шт.

17

D28436

SNAP RING,2", Int, #200

Ring, Snap, 2", Int, #200

1шт.

Part of kit P/N N6722.

1шт.

18

D78282

LARGE PLATE

WASHER - piston retaining

1шт.

19

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

Part of kit P/N N6722.

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL - U-cup, piston

1шт.

Part of kit P/N N6722.

1шт.

21

NSS

NOT SOLD SEPARAT

RETAINER - spring

1шт.

22

NSS

NOT SOLD SEPARAT

SPRING - piston, Replaces N6330

1шт.

23

NSS

NOT SOLD SEPARAT

SEAT - valve

1шт.

Part of kit P/N N6722.

1шт.

24

S12090

PLUG

- special

2шт.

25

A12988

GASKET

- plug

2шт.

26

T30270

SCREW

- bleeder

1шт.

27

NSS

NOT SOLD SEPARAT

HOUSING - master cylinder

1шт.

28

A19755

GASKET

- filler plug

1шт.

Part of kit P/N N6722.

1шт.

29

A64436

O-RING,0.549" ID x 0.755" OD

- piston

1шт.

Part of kit P/N N6722.

1шт.

NSS

NOT SOLD SEPARAT

PISTON ASSEMBLY - master cylinder, Includes: Ref. 30 and 31

1шт.

Part of kit P/N N6722.

1шт.

30

N6333

CUP

SEAL - piston

1шт.

31

NSS

NOT SOLD SEPARAT

PISTON - master cylinder

1шт.

32

NSS

NOT SOLD SEPARAT

PISTON - secondary

1шт.

Part of kit P/N N6722.

1шт.

33

D78269

SUPPORT

BRACKET - mounting, actuator

1шт.

34

D78270

STUD

- master cylinder

4шт.

35

A27173

BREATHER

- air chamber

1шт.

36

D78272

SEAL

- breather

1шт.

37

D82838

LUBRICANT

- tube, 8 oz., not shown

1шт.

N6722

SET OF PARTS

KIT - Includes: Ref. 15, 17, 19, 20, 23, 28, 29, master cylinder piston assembly (NSS) and Ref. 32

1шт.
