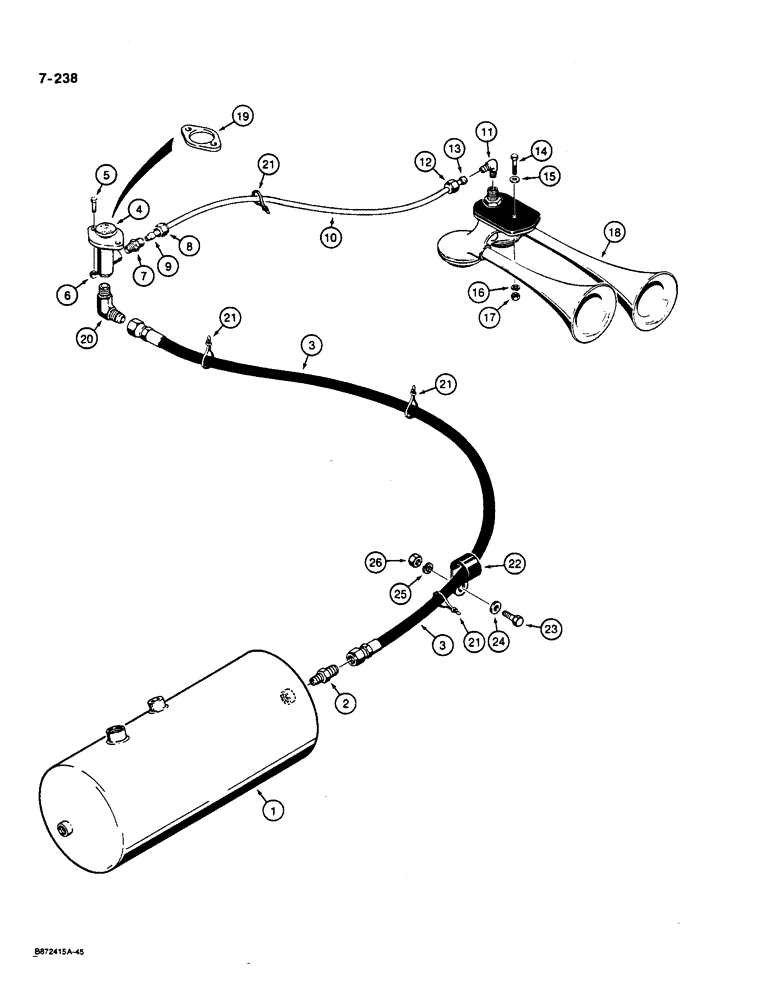

Запчасти Case W36 (7-238) - AIR HORN SYSTEM (07) - BRAKES

1

E156061

AIR TANK

RESERVOIR - air, auxiliary

1шт.

2

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

ADAPTER - straight

1шт.

3

L71229

HOSE ASSY.,0.25" ID x 92.00", SAE J1402C Type A

HOSE ASSY, 0.25" ID x 92.00", SAE J1402C, Type A, Auxiliary Reservoir to Horn Valve

1шт.

4

L12647

VALVE

- horn, parts list Figure 7-240

1шт.

5

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

6

131-2

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC

2шт.

222-2625

FITTING,7/16"-24 x 1/8" NPT, Comp

- compression, straight, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

8

222-2600

NUT

NUT - compression, fitting

1шт.

9

222-2610

SLEEVE

- fitting

1шт.

10

L54225

TUBE,0.25" OD x 64" L

- 1/4" (6 mm) ID x 25" (635 mm) long

1шт.

222-2640

ELBOW,90 Degree, 7/16"-24 x 1/8" NPT, Comp

FITTING - compression, 90 degree, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

12

222-2600

NUT

NUT - compression, elbow

1шт.

13

222-2610

SLEEVE

- elbow

1шт.

14

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

15

195-102

WASHER,1/4"

- flat, , plated 1/4"

1шт.

16

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

17

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

18

L76560

HORN

- air, parts list Figure 7-242

1шт.

19

L114090

SPACER

- horn valve

1шт.

20

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

- 90 degree

1шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

22

R13931

CLAMP

- hose

1шт.

23

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

24

195-104

WASHER,3/8"

- flat, , plated 3/8"

1шт.

25

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

26

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.
