Заказать запчасти

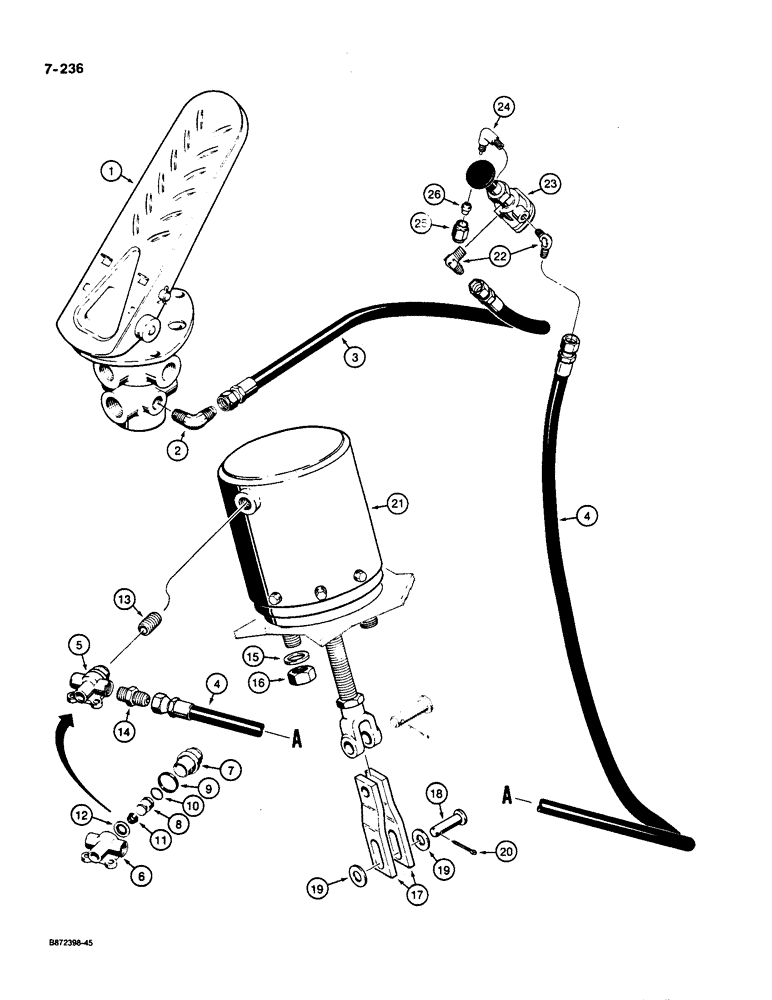

Запчасти Case W36 (7-236) - PARKING BRAKE SYSTEM (07) - BRAKES
№
Артикул
Название
Примечание
Количество
1
L73042
VALVE, BRAKE
TREADLE ASSEMBLY - right-hand, parts list Figure 7-244
1шт.
2
218-491
ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF
- 90 degree
1шт.
3
L52184
HOSE
- 56" (1422 mm) long, parking brake valve to right-hand treadle
1шт.
4
L71225
HOSE ASSY.,0.25" ID x 72.00", SAE J1402 Type B
HOSE ASSY, 0.25" ID x 72.00", SAE J1402, Type B, Parking Brake Valve to Quick Release Valve
1шт.
5
L55335
LOCK VALVE
VALVE ASSEMBLY - quick release, Includes: Ref. 6 - 12
1шт.
6
NSS
NOT SOLD SEPARAT
HOUSING - valve
1шт.
7
NSS
NOT SOLD SEPARAT
FITTING - inlet
1шт.
8
N6200
SEAT
- valve
1шт.
N6201
SEAL KIT
- seal, Includes: Ref. 9 - 12
1шт.
9
NSS
NOT SOLD SEPARAT
GASKET - valve assembly
1шт.
10
NSS
NOT SOLD SEPARAT
O-RING - valve seat
1шт.
11
NSS
NOT SOLD SEPARAT
VALVE - check
1шт.
12
NSS
NOT SOLD SEPARAT
SEAL - valve assembly
1шт.
13
221-1131
PIPE,Nipple, 1/4" NPT x 1"
NIPPLE - 1" x 1/4" NPT
1шт.
14
218-1022
HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF
ADAPTER - straight
1шт.
15
D43266
WASHER
- hardened
2шт.
16
131-676
LOCK NUT,5/8"-11, GB
NUT - hex, self-locking, 5/8" - 11 NC
2шт.
17
L107710
DRAG LINK
LINK - parking brake
2шт.
18
141-12
CLEVIS PIN,3/8" x 1 5/16"
- 3/8" x 1-5/16"
1шт.
19
95-6
WASHER,3/8"
- flat, 3/8"
2шт.
20
132-26
COTTER PIN
Pin, Split (Cotter), 3/32" x 3/4"
1шт.
21
L112239
CHAMBER
PARKING BRAKE ACTUATOR - parts list Figure 7-256
1шт.
22
218-481
ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF
- 90 degree
2шт.
23
L103834
VALVE
ASSEMBLY - parking brake, mounts with lock nut, parts list Figure 7-252
1шт.
222-2640
ELBOW,90 Degree, 7/16"-24 x 1/8" NPT, Comp
FITTING - compression, 90 degree elbow, Includes: Ref. 24 - 26
1шт.
24
NSS
NOT SOLD SEPARAT
BODY - elbow
1шт.
25
222-2600
NUT
COMPRESSION NUT - elbow
1шт.
26
222-26
HYD CONNECTOR,5/8"-24 x 1/8" NPTF W/Nut
SLEEVE - elbow
1шт.
Выбрано товаров: 28
