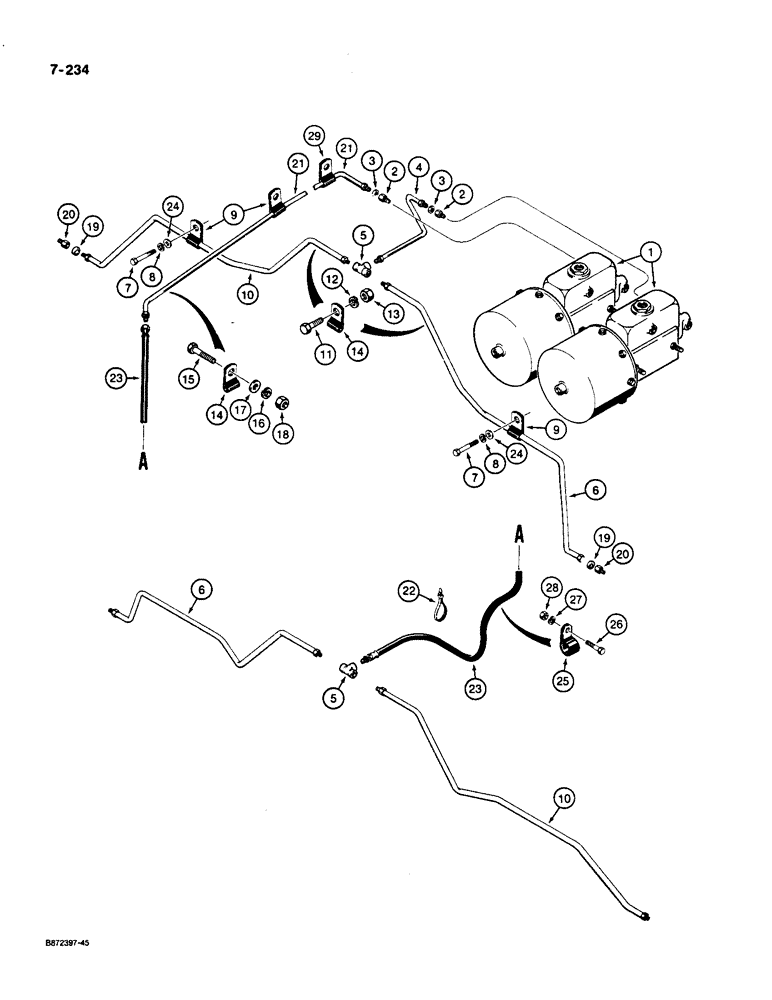

Запчасти Case W36 (7-234) - BRAKE ACTUATOR TO WHEEL CYLINDER (07) - BRAKES

1

L107177

MASTER CYLINDER

ACTUATOR - brake, parts list Figure 7-254

2шт.

2

222-1116

ADAPTER,7/16"-24 Fem x 1/2"-20, Inv Fl

- straight

2шт.

3

33260

GASKET

- adapter

2шт.

4

L71065

TUBE,0.25" OD

- brake actuator, front

1шт.

5

222-1150

TEE,7/16"-24, Inv Fl

- brake tubes

2шт.

6

L79751

TUBE,0.25" OD x 35.25, 14.92" L

- right-hand front and left-hand rear

2шт.

7

113-204

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

- hex head, 3/8" - 16 NC x 3", plated

4шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

9

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- tube

4шт.

10

L79749

TUBE,0.25" OD x 33.5, 14.92" L

- left-hand front and right-hand rear

2шт.

11

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

12

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

13

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

14

49769

HUB

- hose

5шт.

15

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

16

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

17

195-106

WASHER,1/2"

- flat, , plated 1/2"

1шт.

18

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

19

A12643

WASHER

GASKET - adapter

4шт.

20

L79764

ADAPTER

- special

4шт.

21

L71367

TUBE,0.25" OD

- brake actuator, rear

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

23

L74410

HOSE ASSY.,0.19" ID x 108.00", SAE J1401

HOSE ASSY, , Actuator to Rear Tubes 0.19" ID x 108.00", SAE J1401

1шт.

24

195-104

WASHER,3/8"

- flat, , plated 3/8"

4шт.

25

51200320

CLAMP

- hose, rear brake and transmission cables

1шт.

26

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

27

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

28

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

29

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- tube, use existing hardware

1шт.
