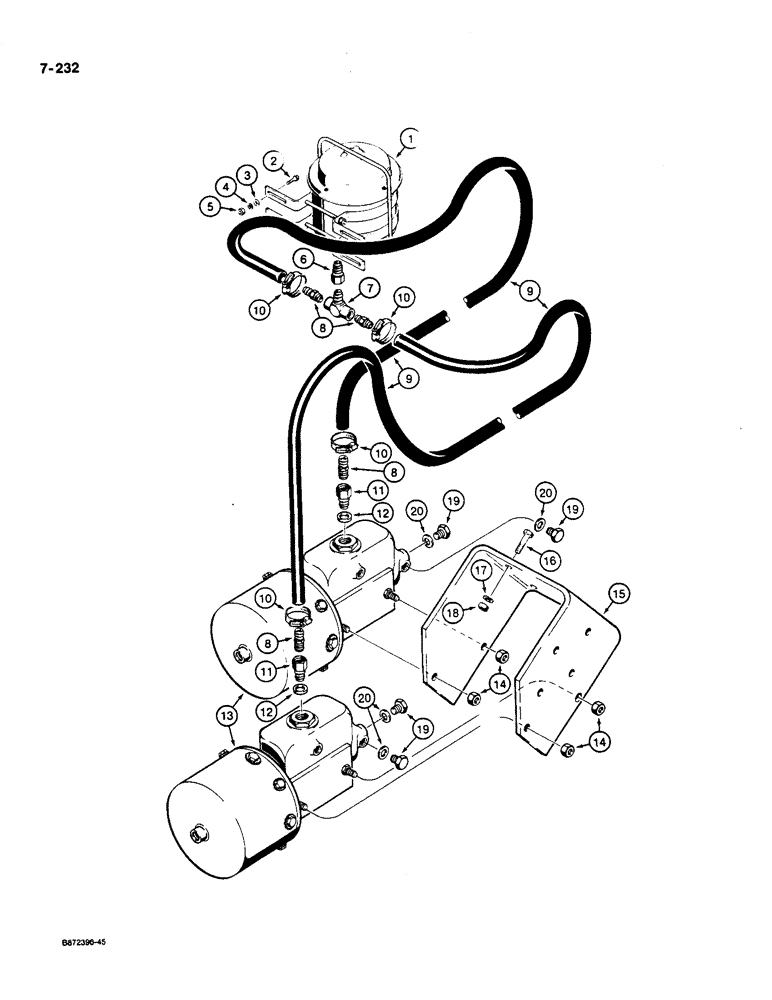

Запчасти Case W36 (7-232) - BRAKE FLUID RESERVOIR TO BRAKE ACTUATOR (07) - BRAKES

1

L71279

TANK

RESERVOIR ASSEMBLY - brake fluid, parts list Figure 7-256

1шт.

2

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

3

95-4

WASHER,1/4"

- flat, 1/4"

4шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

5

25-104

NUT,1/4"-20, G5

4шт.

6

221-1086

REDUCER,3/8" NPT x 1/4" NPT

- 3/8" NPT x 1/4" NPT

1шт.

7

217-1141

TEE,1/4"-18 Female x 1/4"-18 Male Br

- brake hoses

1шт.

8

217-119

FITTING,1/4" Hose x 1/4" NPTF, Barbed

BARB FITTING - straight

4шт.

9

L109193

HOSE

- 1/4" (6 mm) ID x 15-1/2" (394 mm), brake fluid reservoir to brake actuators

2шт.

10

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

4шт.

11

L76300

CONNECTOR, ELEC

ADAPTER - straight

2шт.

12

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - adapter

2шт.

13

L107177

MASTER CYLINDER

ACTUATOR - brake, parts list Figure 7-254

2шт.

14

131-90

LOCK NUT,7/16"-20, G8

NUT - hex, self-locking, 7/16" - 14 NC

4шт.

15

L71340

SUPPORT

BRACKET - brake actuator mounting

1шт.

16

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

17

92-8

LOCK WASHER,1/2"

4шт.

18

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

19

S12090

PLUG

- brake actuator

4шт.

20

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - plug

4шт.
