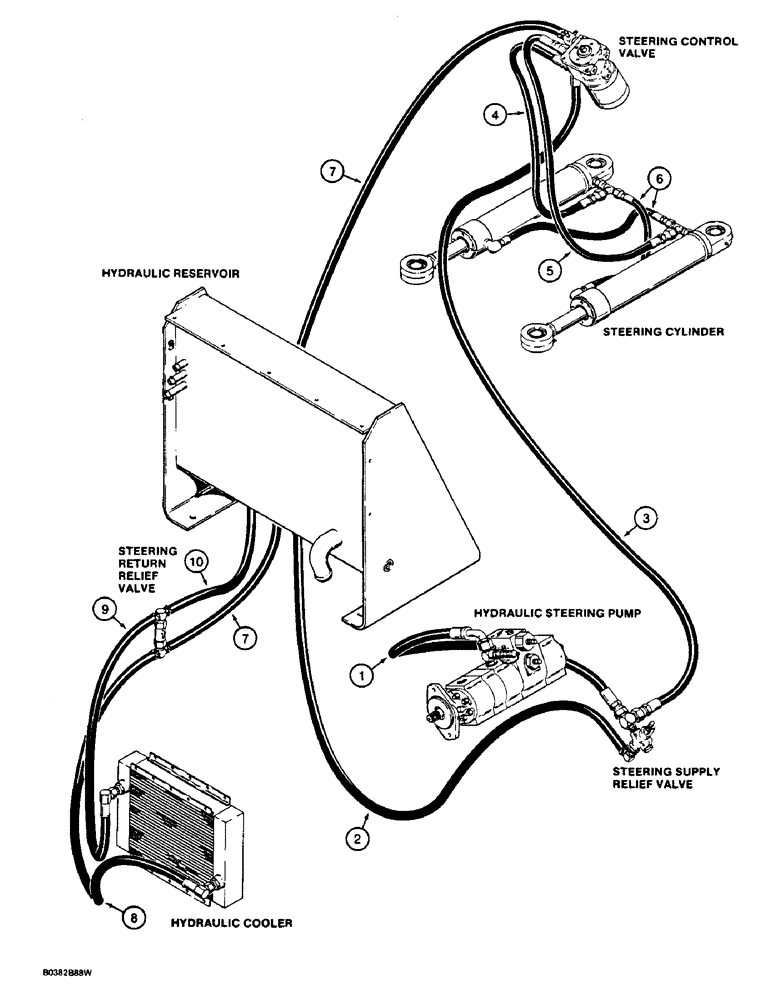

Запчасти Case W36 (1-10) - PICTORIAL INDEX, STEERING AND COOLING HYDRAULIC CIRCUIT (00) - PICTORIAL INDEX

1

Steering supply hose, hydraulic pump to relief valve, Page 5-147

1шт.

2

Return hose from steering supply relief valve to hydraulic reservoir, Page 5-147

1шт.

3

Steering supply hose, tee at steering supply relief valve to steering valve, Page 5-147

1шт.

4

Hose to left-hand cylinder, right-hand turn, control valve to tee, Page 5-157

1шт.

5

Hose to right-hand cylinder, left-hand turn, control valve to tee, Page 5-157

1шт.

6

Hose from tees to steering cylinders, Page 5-157

1шт.

7

Return hose from steering valve to tee at steering return relief valve, Page 5-147

1шт.

8

Return hose from tee at steering relief valve to oil cooler, Page 5-151

1шт.

9

Supply hose from oil cooler to tee at steering return relief valve, Page 5-151

1шт.

10

Hose from tee at steering return relief valve to hydraulic reservoir, Page 5-151

1шт.
