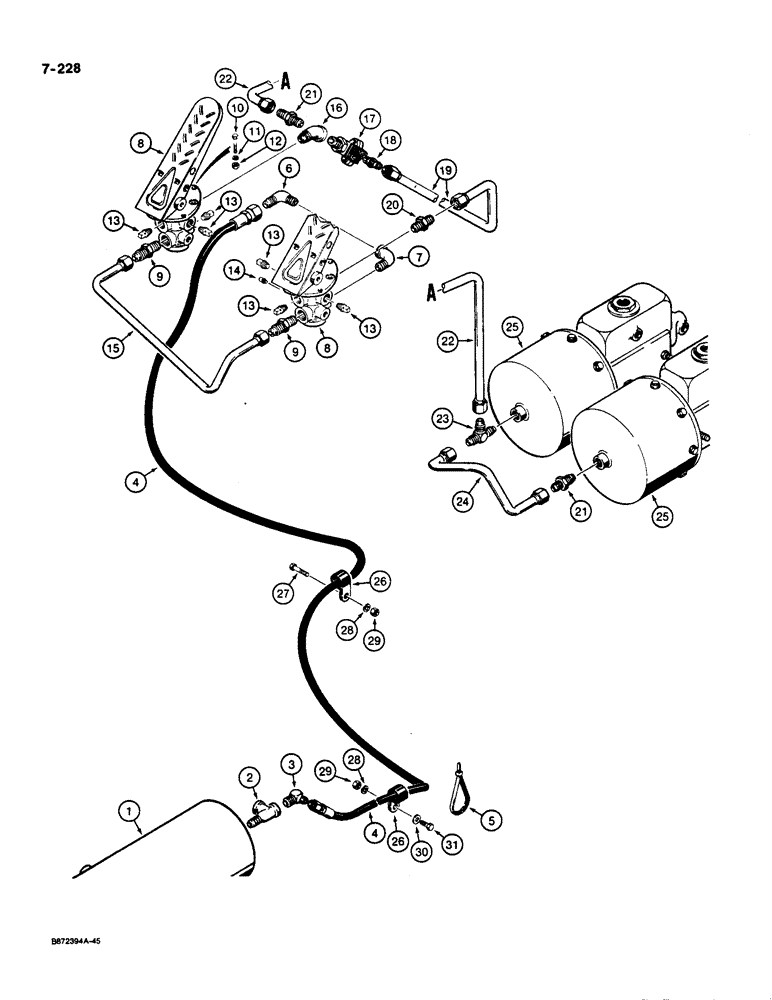

Запчасти Case W36 (7-228) - RESERVOIR TO TREADLE AND BRAKE ACTUATOR (07) - BRAKES

1

E156059

TANK

RESERVOIR - air, main, for mounting and related parts see Figure 7-224

1шт.

2

221-1693

TEE,Street, 1/2" NPT

- 1/2" NPT

1шт.

3

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- 45 degree, male

1шт.

4

L71228

FUEL HOSE

HOSE - 117" (2972 mm) long, Serial Range: reservoir-treadle

1шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

6

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree

1шт.

7

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

- street, 90 degree, 1/2" NPT

1шт.

8

L73042

VALVE, BRAKE

TREADLE AND VALVE ASSEMBLY - brake, parts list Figure 7-244

2шт.

9

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, male

2шт.

10

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

12

9635082

NUT,5/16" - 18, Gr 5

6шт.

13

221-1014

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - square head, 1/2" NPT

6шт.

14

221-1012

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - square head, 1/4" NPT

1шт.

15

E155302

TUBE,15.87 mm OD x 70, 292 mm L

- treadle crossover

1шт.

16

221-1404

ELBOW,45 Degree, 1/2"-14, NPT

- street, 45 degree

1шт.

17

L48128

VALVE

- double check, parts list Figure 7-246

1шт.

18

218-455

HYD CONNECTOR,3/4" - 16 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight

1шт.

19

L71327

TUBE,0.5" OD

- check valve

1шт.

20

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight

1шт.

21

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ADAPTER - straight

2шт.

22

L117989

TUBE ASSY.,12.7 mm OD

TUBE - to brake actuators

1шт.

23

218-614

TEE,3/4"-16, 37 Degree x 3/8"-18, NPTF Run

Tube 3/4"-16, 37º x 3/8"-18, NPTF Run

1шт.

24

L71277

TUBE,0.5" OD

- between brake actuators

1шт.

25

L107177

MASTER CYLINDER

ACTUATOR - brake, parts list Figure 7-254

2шт.

26

R13931

CLAMP

- hose

2шт.

27

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

28

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

29

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

30

195-104

WASHER,3/8"

- flat, , plated 3/8"

1шт.

31

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.
