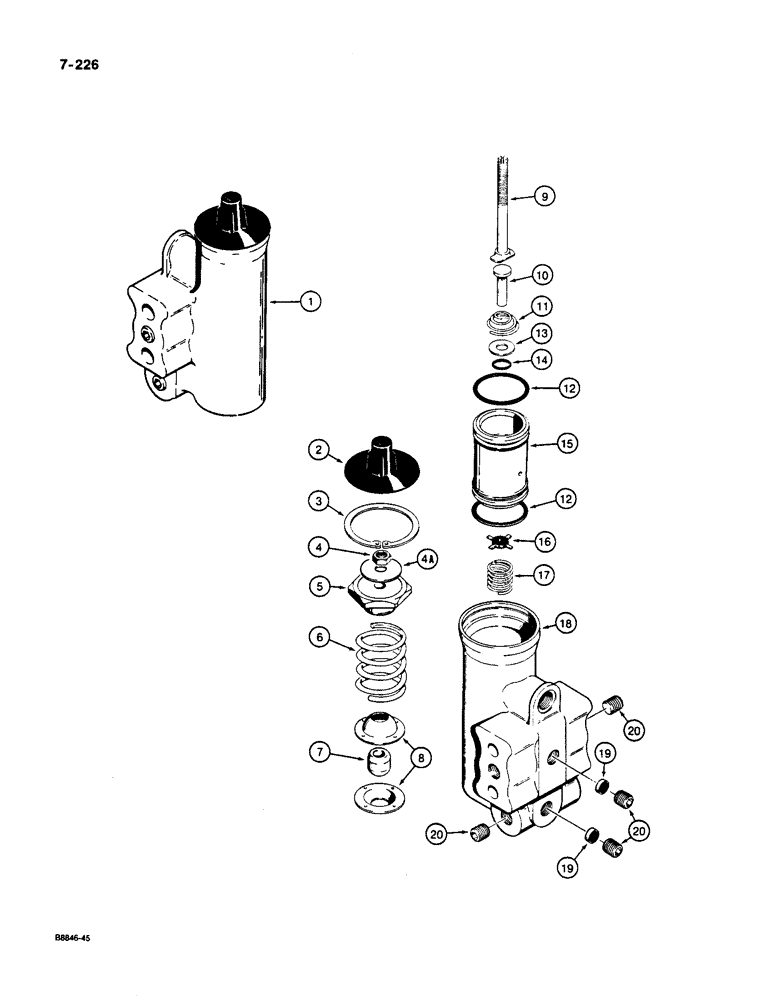

Запчасти Case W36 (7-226) - AIR COMPRESSOR GOVERNOR (07) - BRAKES

1

E97640

REGULATOR

GOVERNOR ASSEMBLY - air compressor, Includes: Ref. 2 - 20

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - top, governor

1шт.

Part of governor repair kit P/N E68632.

1шт.

3

NSS

NOT SOLD SEPARAT

SNAP RING - governor

1шт.

Part of governor repair kit P/N E68632.

1шт.

L31533

WASHER

ADJUSTING ASSEMBLY - governor, Includes: Ref. 4 - 9

1шт.

4

25-104

NUT,1/4"-20, G5

1шт.

4a

NSS

NOT SOLD SEPARAT

WASHER - special

1шт.

5

NSS

NOT SOLD SEPARAT

SEAT - spring, upper

1шт.

6

NSS

NOT SOLD SEPARAT

SPRING - tension

1шт.

7

NSS

NOT SOLD SEPARAT

GUIDE - adjusting spring

1шт.

8

NSS

NOT SOLD SEPARAT

SEAT - spring, lower

2шт.

9

NSS

NOT SOLD SEPARAT

SCREW - special, adjusting

1шт.

10

NSS

NOT SOLD SEPARAT

STEM - exhaust

1шт.

Part of governor repair kit P/N E68632.

1шт.

11

NSS

NOT SOLD SEPARAT

SPRING - stem, exhaust

1шт.

Part of governor repair kit P/N E68632.

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - stem

2шт.

Part of governor repair kit P/N E68632.

1шт.

L31528

PLUNGER

PISTON ASSEMBLY - governor, Includes: Ref. 13 - 15

1шт.

13

L31541

WASHER

- special

1шт.

14

L31540

O-RING,0.07" Thk x 0.208" ID, -9, Cl 5, 75 Duro

- piston

1шт.

Part of governor repair kit P/N E68632.

1шт.

15

NSS

NOT SOLD SEPARAT

PISTON - governor

1шт.

16

NSS

NOT SOLD SEPARAT

VALVE - inlet and exhaust

1шт.

Part of governor repair kit P/N E68632.

1шт.

17

NSS

NOT SOLD SEPARAT

SPRING - valve, inlet and exhaust

1шт.

Part of governor repair kit P/N E68632.

1шт.

18

NSS

NOT SOLD SEPARAT

BODY - governor

1шт.

19

NSS

NOT SOLD SEPARAT

FILTER - inlet and outlet ports

2шт.

Part of governor repair kit P/N E68632.

1шт.

20

221-1849

PLUG

- hex socket head, 1/8" NPT

4шт.

E68632

KIT

- governor repair, Includes: Ref. 2, 3, 10 - 12, 14, 16, 17 and 19

1шт.
