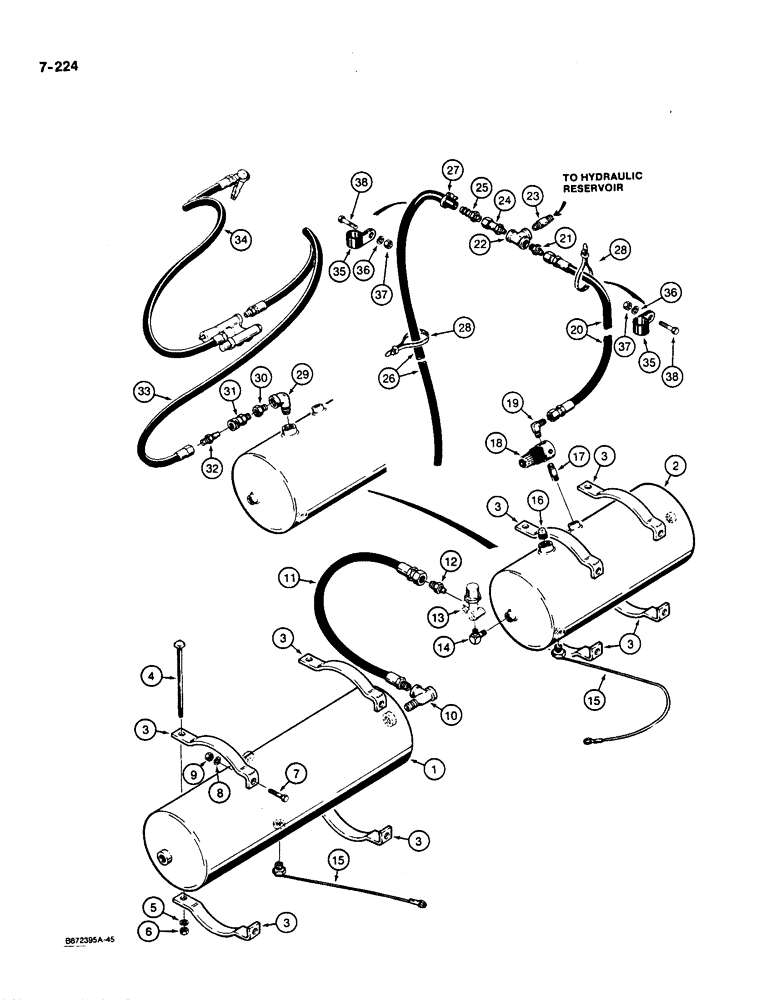

Запчасти Case W36 (7-224) - AIR RESERVOIRS AND RELATED PARTS (07) - BRAKES

1

E156059

TANK

RESERVOIR - air, main

1шт.

2

E156061

AIR TANK

RESERVOIR - air, auxiliary, if used

1шт.

3

L32871

SUPPORT

BRACKET - mounting

8шт.

4

17-696

BOLT,Sq Hd, 3/8" - 16 x 6", Gr 2

- square head, 3/8" - 16 NC x 6"

4шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

7

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

8шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

10

221-1693

TEE,Street, 1/2" NPT

- 1/2" NPT

1шт.

11

L71400

FUEL HOSE

HOSE - 16" (406 mm) long, main reservoir to auxiliary reservoir

1шт.

12

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight

1шт.

13

L13530

VALVE

- pressure protection, parts list Figure 7-240

1шт.

14

217-1225

ELBOW,90 Degree, 1/4"-18 Male

- 90 degree, 1/4" NPT

1шт.

15

E156324

SHUT-OFF VALVE

VALVE - drain, reservoir, includes wire

2шт.

16

221-1014

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - square head, 1/2" NPT, if used

1шт.

17

221-1131

PIPE,Nipple, 1/4" NPT x 1"

NIPPLE - 1" x 1/4" NPT

1шт.

18

L112300

VALVE

- pressure reducing, parts list Figure 7-248

1шт.

19

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, 1/4" NPT

1шт.

20

L52184

HOSE

- 56" (1422 mm) long, auxiliary reservoir to hydraulic reservoir

1шт.

21

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

ADAPTER - straight

1шт.

22

221-422

TEE,Pipe, 1/4" NPT

- 1/4" NPT

1шт.

23

221-1131

PIPE,Nipple, 1/4" NPT x 1"

NIPPLE - 3/4" NPT x 1"

1шт.

24

L76420

LOCK VALVE

VALVE - relief

1шт.

25

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

stem - straight 3/8" Hose X 1/4" NPTF Beaded

1шт.

26

L76635

HOSE,0.38" ID x 72.00", SAE 30R2 Type 1

0.38" ID x 72.00", SAE 30R2, Type I, Vent

1шт.

27

214-251

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP - hose

1шт.

28

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

29

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

- 90 degree

1шт.

30

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

- 1/2" x 3/8"

1шт.

31

L13978

VALVE

COUPLER - adapter, female

1шт.

32

L13979

COUPLING

COUPLER - adapter, male

1шт.

33

L15274

HOSE

- 340" (8636 mm) long, auxiliary reservoir to air control valve

1шт.

34

L113543

SET OF PARTS

VALVE - air control, includes hose

1шт.

35

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- hose, to hydraulic reservoir

2шт.

36

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

37

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

38

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8"-16 NC x 1-1/2", plated

2шт.
