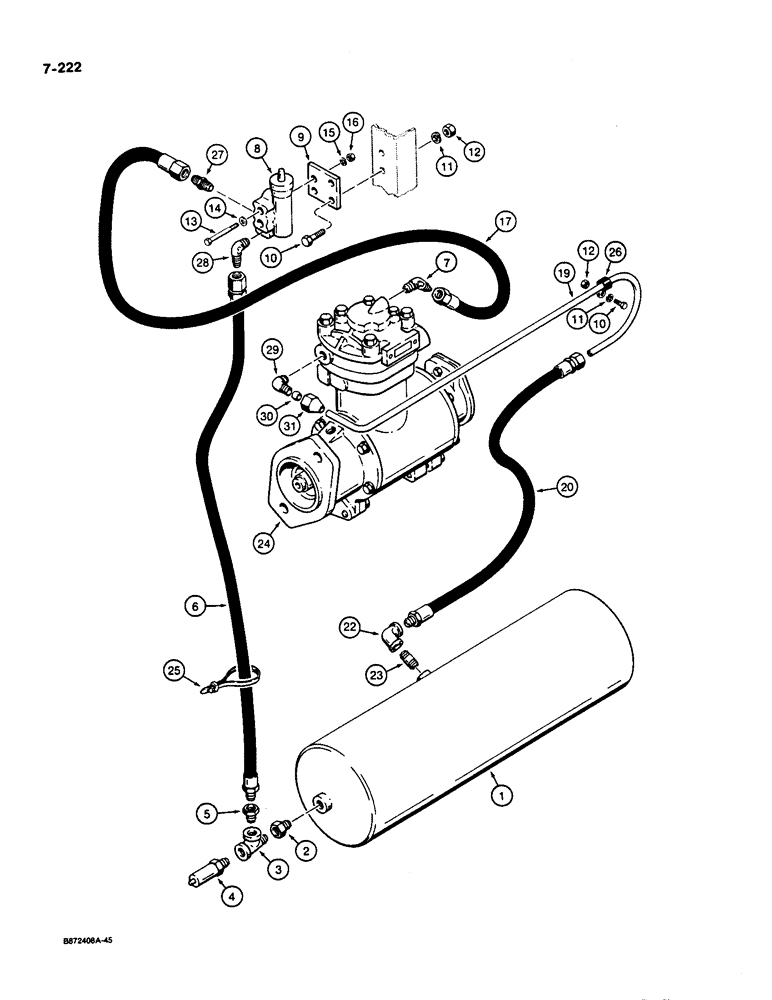

Запчасти Case W36 (7-222) - AIR COMPRESSOR TO RESERVOIR (07) - BRAKES

1

E156059

TANK

RESERVOIR - air, main, reservoir and related parts on Figure 7-224

1шт.

2

221-1088

REDUCER,Hex, 1/2" x 1/4" NPT

- 1/2" x 1/4" NPT

1шт.

3

221-1691

TEE,Street, 1/4" NPT

- Street, 1/4" NPT

1шт.

4

L48992

VALVE,1/4"

- safety

1шт.

5

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

- 1/4" x 1/8" NPT

1шт.

6

L71402

HOSE ASSY.,0.25" ID x 36.00", SAE J1402 Type B

HOSE ASSY, 0.25" ID x 36.00", SAE J1402, Type B, Reservoir to Governor

1шт.

7

218-531

ELBOW,45 Degree, 7/16-20" 37 Degree x 1/8"-27, NPTF

- 45 degree

1шт.

8

E97640

REGULATOR

GOVERNOR ASSEMBLY - air compressor, parts list Figure 7-226

1шт.

9

E156104

SUPPORT

BRACKET - valve, governor

1шт.

10

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

13

113-177

BOLT,Hex, 5/16" - 18 x 3", Gr 5

2шт.

14

195-103

WASHER,5/16"

- flat, , plated 5/16"

2шт.

15

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

16

9635082

NUT,5/16" - 18, Gr 5

2шт.

17

E156118

AIR HOSE,400.00 mm, SAE J1402 Type A

HOSE , Governor to Compressor 400.00 mm, SAE J1402 Type A

1шт.

19

E156800

TUBE,15.87 mm OD x 322, 518 mm L

- compressor to reservoir

1шт.

20

E156801

HOSE ASSY.

HOSE - 250 mm long, Serial Range: compressor-reservoir

1шт.

22

221-1382

ELBOW,90 Degree, Fem, 1/2" NPt x 3/8" NPT

- 90 degree, 3/8" NPT x 1/2" NPT

1шт.

23

221-1164

HYD CONNECTOR

NIPPLE - 3/8" NPT x 2"

1шт.

24

E156169

COMPRESSOR

- air, component parts not sold separately

1шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

26

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- tube, compressor to reservoir

1шт.

27

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - straight, 7/16" - 20 NF flare x 1/8" male NPT

1шт.

28

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree

1шт.

222-1856

ELBOW,90 Degree, 13/16"-18 x 1/8" NPT, Comp

- compression, 90 degree, male, 5/8" tube OD x 1/2" NPT, Includes: Ref. 29 - 31

1шт.

29

NSS

NOT SOLD SEPARAT

ELBOW - compression, 90 degree, male

1шт.

30

222-1864

SLEEVE,5/8" Tube, Comp

- spherical, 5/8" tube OD

1шт.

31

222-1869

TUBE NUT,13/16"-18, Sph Sleeve

NUT - compression, 5/8" tube OD, 13/16" - 18

1шт.
