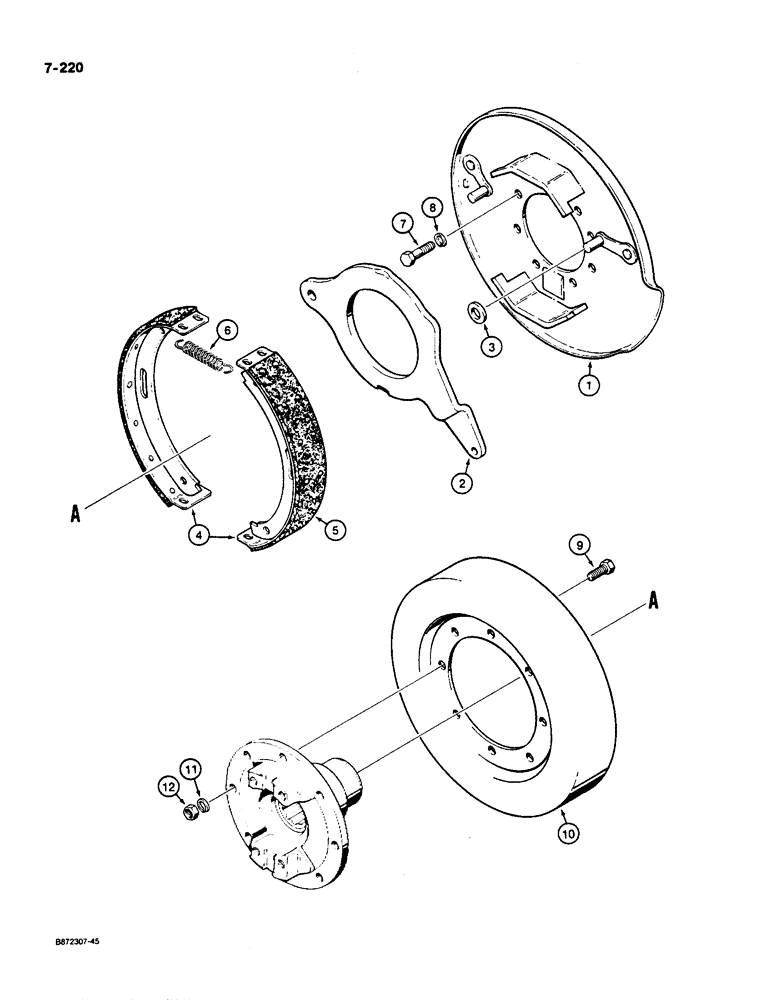

Запчасти Case W36 (7-220) - PARKING BRAKE (07) - BRAKES

N8235

BRAKE LINE

ASSEMBLY - parking, Includes: Ref. 1 - 6

1шт.

1

N8236

PLATE

Backing

1шт.

2

A12779

LEVER

Brake shoe

1шт.

3

A16642

WASHER

ROLLER - brake

1шт.

A12780

BRAKE SHOE

SHOE, BRAKE ASSEMBLY - parking brake, Includes: Ref. 4 and 5

2шт.

4

NSS

NOT SOLD SEPARAT

SHOE - brake, includes both halves

1шт.

5

NSS

NOT SOLD SEPARAT

LINING - brake, includes both halves

1шт.

6

A12778

SPRING

Brake shoe

2шт.

7

114-332

BOLT,Locking, 7/16" - 20 x 1", Gr 8, Full Thd

With poly-lok

8шт.

8

D47367

WASHER

Lock, special

8шт.

9

28-616

BOLT,Hex, 3/8" - 24 x 1", Gr 8

8шт.

10

A25271

BRAKE DRUM

DRUM, BRAKE Parking

1шт.

11

92-6

LOCK WASHER,3/8"

8шт.

12

129-524

NUT,3/8"-24, G8

8шт.

A12843

PACKAGE

KIT - lining, for 1 shoe

2шт.
