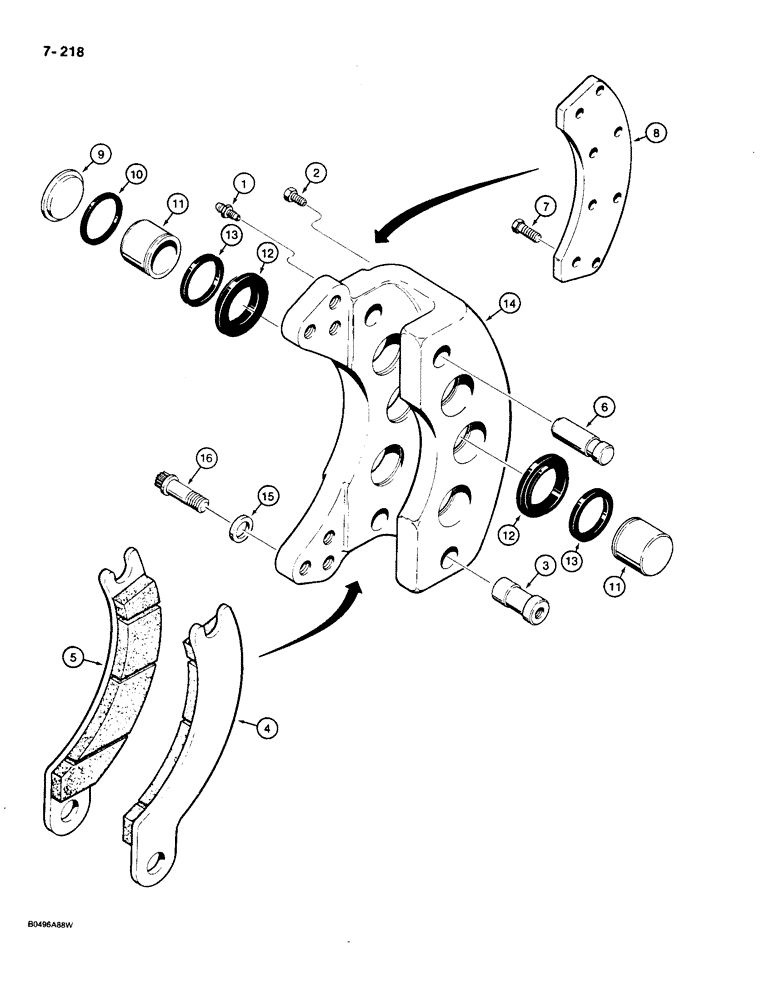

Запчасти Case W36 (7-218) - DISC BRAKE CALIPER (07) - BRAKES

L79475

CALIPER

ASSEMBLY - brake, Includes: Ref. 1 - 14

4шт.

1

D77517

VALVE

- hydraulic bleeder

2шт.

2

N6171

LOCK BOLT,Hex, 3/8" - 16 x 1", Cup Pt

BOLT - special

4шт.

3

N6170

PIN

- brake shoe, lower

2шт.

4

N6172

BRAKE LINING

CARRIER - lining, right-hand part of set

1шт.

5

N6173

BRAKE LINING

CARRIER - lining, left-hand part of set

1шт.

6

N6174

PIN

- brake shoe, upper

2шт.

7

N6175

HEX SOC SCREW

BOLT - special

8шт.

8

N6176

COVER PLATE

PLATE - cover

1шт.

9

N6177

PLUG

- piston

3шт.

10

N6178

SEAL

- outer

3шт.

Ref. Must order P/N S300320 Seal Kit to obtain.

1шт.

11

N6179

PISTON

- brake

6шт.

12

N6180

BOOT

- piston

6шт.

Ref. Is N S S.must order P/N S300320 Seal Kit to obtain.

1шт.

13

N6181

SEAL

- inner

6шт.

Ref.13 - Is N S S. Must order S300320 Seal Kit to obtain

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - caliper

1шт.

15

D34667

WASHER,23.02mm ID x 38.1mm OD x 3.57mm Thk

- special, 29/32"

24шт.

16

166-153

12 PT SCREW,Flg, 7/8" - 9 x 2 1/2", Gr 8

BOLT - Ferry head, 7/8" x 2-1/2", grade 8

24шт.
