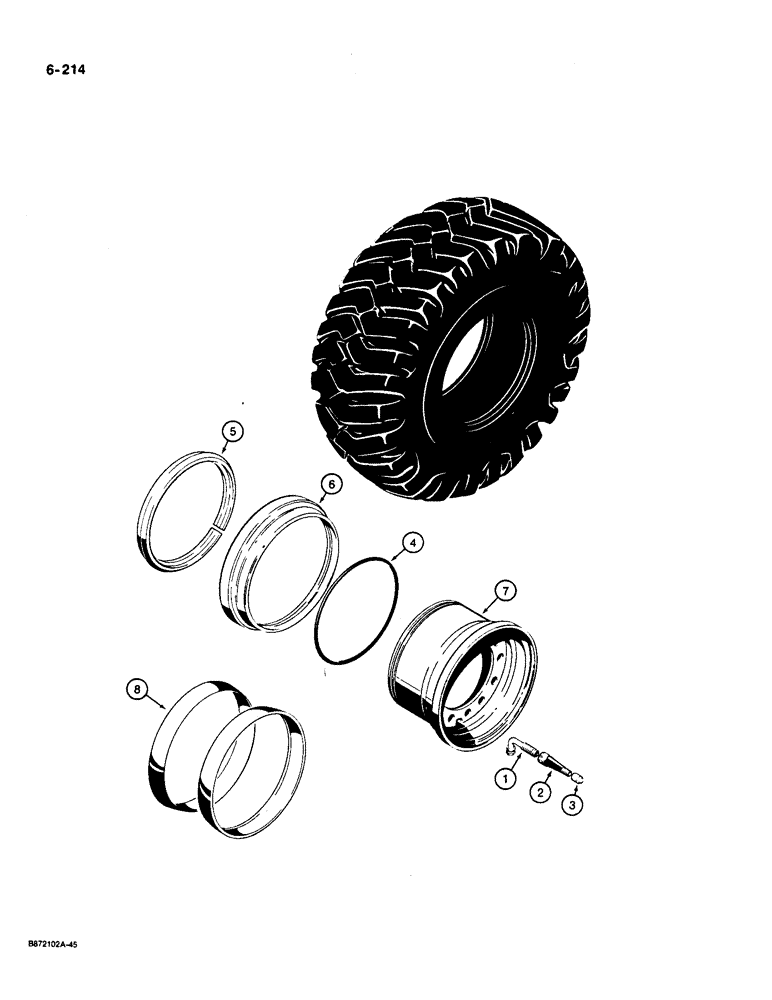

Запчасти Case W36 (6-214) - WHEELS (06) - POWER TRAIN

1

L11405

VALVE

- tubeless tire, elbow

4шт.

2

L11406

ADAPTER

- tire valve

4шт.

3

L19664

VALVE STEM

CAP - adapter

4шт.

4

A16425

O-RING,10.29mm Thk x 573.02mm ID, 65 Duro

- seal, use with E67118 or L111874 wheel assemblies

4шт.

4

E96051

O-RING

- seal, use with E67005 wheel assembly

4шт.

E67118

WHEEL

ASSEMBLY - Borlem, not available order L111874, for 23.5 x 25 tires, Includes: Ref. 5 - 8

4шт.

5

E67641

RING, LOCKING

RING - lock, for 23.5 x 25 tires

1шт.

6

E67136

RING, LOCKING

RING - lock, bead set, for 23.5 x 25 tires

1шт.

7

NSS

NOT SOLD SEPARAT

RIM - wheel, for 23.5 x 25 tires

1шт.

8

E67642

RING

- side rim, for 23.5 x 25 tires

1шт.

E67005

WHEEL

ASSEMBLY - Arcado, not available order L111874, for 23.5 x 25 tires, Includes: Ref. 5 - 8

4шт.

5

E96053

RING

- lock, for 23.5 x 25 tires

1шт.

6

E96052

RING

- lock, bead set, for 23.5 x 25 tires

1шт.

7

NSS

NOT SOLD SEPARAT

RIM - wheel, for 23.5 x 25 tires

1шт.

8

E96050

RING

- side rim, for 23.5 x 25 tires

1шт.

L111874

RIM

WHEEL ASSEMBLY - Electric Wheel/Can-Am, for 23.5 x 25 tires, Includes: Ref. 5 - 8

4шт.

5

A16424

RING, LOCKING

RING - lock, for 23.5 x 25 tires

1шт.

6

A16423

RING

RING - lock, bead set, for 23.5 x 25 tires

1шт.

7

L70470

WEIGHT, WHEEL

RIM - wheel, for 23.5 x 25 tires

1шт.

8

L12690

RING, SNAP

RING - side rim, for 23.5 x 25 tires

1шт.

L111874

RIM

WHEEL ASSEMBLY - Newton - GKN, for 23.5 x 25 tires, Includes: Ref. 5 - 8

4шт.

5

N8672

RING, SNAP

RING - lock, for 23.5 x 25 tires

1шт.

6

N8673

RING

- lock, bead set, for 23.5 x 25 tires

1шт.

7

NSS

NOT SOLD SEPARAT

RIM - wheel, for 23.5 x 25 tires

1шт.

8

N8671

RING

- side rim, for 23.5 x 25 tires

1шт.
