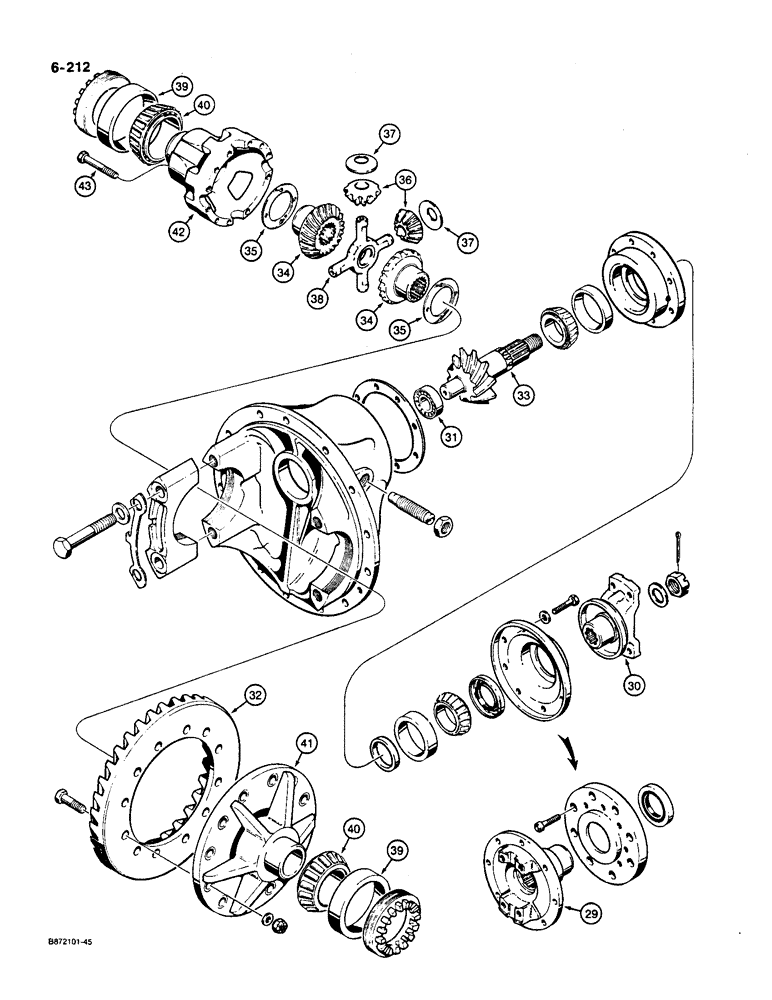

Запчасти Case W36 (6-212) - FRONT AND REAR AXLES, DIFFERENTIAL (06) - POWER TRAIN

REF

INSTRUCTION

AXLE ASSEMBLY - front and rear, Includes: Ref. 29 - 43 and Ref. 1 - 28 on Figure 6-210

2шт.

NSS

NOT SOLD SEPARAT

DIFFERENTIAL ASSEMBLY - axle, Includes: Ref. 29 - 43

1шт.

29

N6267

COUPLING

ASSEMBLY - internal spline, front

1шт.

30

N6266

COUPLING FLANGE

COUPLING ASSEMBLY - flange yoke, rear

1шт.

N6250

GEAR-SET

GEAR SET ASSEMBLY - front and rear differential, Includes: Ref. 31 - 33

1шт.

N6250, Ring gear has 37 teeth, pinnion has 8 teeth. Per NAPO Purchasiing

1шт.

31

A15438

BALL BEARING,1.378" ID x 3.1436" OD x 0.8868"

BEARING - ball, pinion

1шт.

32

NSS

NOT SOLD SEPARAT

RING GEAR - differential

1шт.

33

NSS

NOT SOLD SEPARAT

PINION SHAFT - differential

1шт.

N6242

CASE ASSY.

CASE ASSEMBLY - front and rear differential, Includes: Ref. 34 - 43

1шт.

34

N6245

GEAR

- differential

2шт.

35

N6246

WASHER

THRUST WASHER - differential gear

2шт.

36

N6247

PINION

- differential gear

4шт.

37

N6248

WASHER

THRUST WASHER - pinion gear

4шт.

38

N6249

SPIDER ASSY.

SPIDER - differential

1шт.

39

A7892

BEARING, CUP

CUP - tapered roller bearing

2шт.

40

A7893

ROLLER BEARING,3.375" ID x 1.172"

BEARING - tapered roller

2шт.

N6268

DIFFERENTIAL

CASE ASSEMBLY - differential, Includes: Ref. 41 - 43

1шт.

41

NSS

NOT SOLD SEPARAT

CASE - flange half

1шт.

42

NSS

NOT SOLD SEPARAT

CASE - plain half

1шт.

43

514-902

BOLT,Hex, M14 x 2 x 120mm, Cl 10.9

- hex head, self-locking, 14 mm - 2 x 120 mm (10.9)

12шт.
