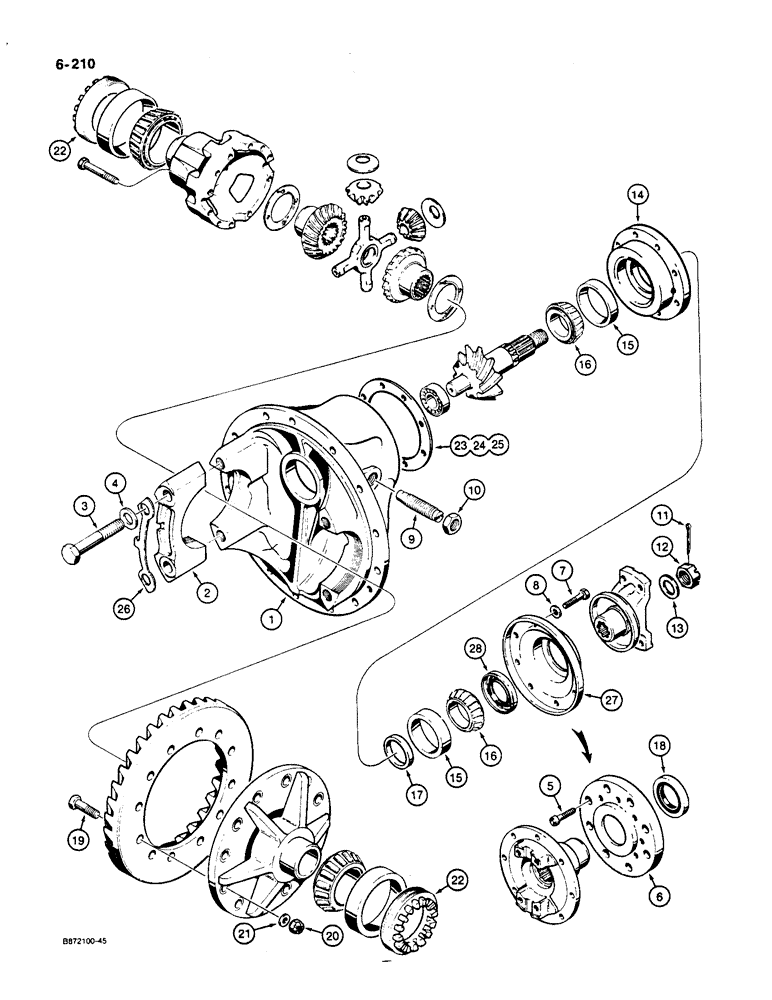

Запчасти Case W36 (6-210) - FRONT AND REAR AXLES, DIFFERENTIAL (06) - POWER TRAIN

L79467

AXLE HOUSING

AXLE ASSEMBLY - front, parts list Figures 6-206 - 6-210, Includes: Ref. 1 - 28 and Ref. 29 - 43 on Figure 6-212

1шт.

L79468

AXLE HOUSING

AXLE ASSEMBLY - rear, parts list Figures 6-206 - 6-210, Includes: Ref. 1 - 28 and Ref. 29 - 43 on Figure 6-212

1шт.

N6203

DIFFERENTIAL ASSY

DIFFERENTIAL ASSEMBLY - axle, front, Includes: Ref. 1 - 28

1шт.

N6202

DIFFERENTIAL

ASSEMBLY - axle, rear, Includes: Ref. 1 - 28

1шт.

N6210

CAGE

CARRIER AND CAP ASSEMBLY - differential, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

CASE - carrier

1шт.

2

NSS

NOT SOLD SEPARAT

CAP - bearing

2шт.

3

826-20120

BOLT,Hex, M20 x 2.5 x 120mm, Cl 10.9

- hex head, 20 mm - 2.5 x 120 mm (10.9)

4шт.

4

D80556

WASHER

- special

4шт.

5

861-12060

HEX SOC SCREW,M12 x 60mm, Cl 12.9

BOLT - hex socket head, 12 mm - 1.75 x 60 mm (12.9), used on front differential only

8шт.

6

N6254

PLATE

- anchor, used on front differential only

1шт.

7

514-811

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

- hex head, self-locking, 12 mm - 1.75 x 50 mm (10.9), used on rear differential only

8шт.

8

D74508

WASHER

- used on rear differential only

8шт.

9

N6213

SCREW,M22 x 2.5 x 2.5mm

- thrust

1шт.

10

N6255

LOCK NUT

- lock

1шт.

11

632-136

COTTER PIN,M3.2 x 50

- 3 mm x 50 mm

1шт.

12

N6256

NUT

NUT - hex, slotted, pinion

1шт.

13

N6257

WASHER

- yoke

1шт.

N7050

CAGE ASSY.

CAGE ASSEMBLY - pinion shaft bearing, Includes: Ref. 14 - 17

1шт.

14

NSS

NOT SOLD SEPARAT

CAGE - bearing

1шт.

15

NSS

NOT SOLD SEPARAT

CUP - tapered roller bearing

2шт.

16

NSS

NOT SOLD SEPARAT

BEARING - tapered roller

2шт.

17

N6217

KIT

SPACER KIT - includes (8) spacers, use as required

1шт.

18

N6265

OIL SEAL

- coupling, used on front differential only

1шт.

19

514-1003

BOLT

BOLT - hex head, self-locking, 16 mm - 2 x 57 mm (10.9)

12шт.

20

N6258

WASHER

NUT - special

12шт.

21

N6259

WASHER

- flat, 16 mm

12шт.

22

N6219

RING

- bearing adjustment

2шт.

23

N6220

SHIM,.254mm Thk

(.010") .254mm Thk

1шт.

24

N6221

SHIM,.127mm Thk

(.005") .127mm Thk

1шт.

25

N6222

SHIM,.076mm Thk

(.003") .076mm Thk

1шт.

26

N6223

LARGE PLATE

PLATE - lock

2шт.

N6218

RETAINER

ASSEMBLY - oil seal, used on rear differential only, Includes: Ref. 27 and 28

1шт.

27

NSS

NOT SOLD SEPARAT

RETAINER - oil seal

1шт.

28

N6265

OIL SEAL

- coupling

1шт.
