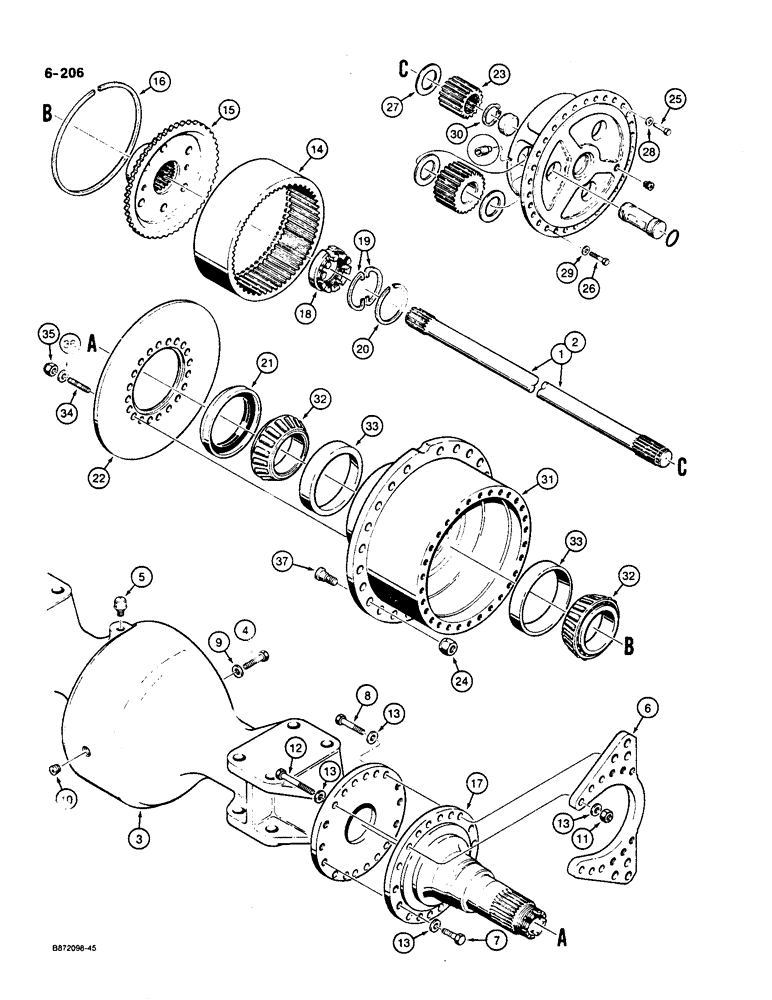

Запчасти Case W36 (6-206) - FRONT AND REAR AXLES, AXLE HOUSING AND PLANETARY (06) - POWER TRAIN

L79467

AXLE HOUSING

AXLE ASSEMBLY - front, GKN SN RP32.23HN - 12306-00307, parts list Figures 6-206 - 6-210, Includes: Ref. 1 - 37

1шт.

L79468

AXLE HOUSING

AXLE ASSEMBLY - rear, GKN SN RP32.23HN - 12307-00308, parts list Figures 6-206 - 6-210, Includes: Ref. 1 - 37

1шт.

1

N6205

SHAFT

- axle, long, front or rear axle, 52-1/2" (1334 mm) long

1шт.

2

N6206

SHAFT

- axle, short, front or rear axle, 50-3/4" (1288 mm) long

1шт.

3

N6207

HOUSING

- axle

1шт.

4

514-1002

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9

- hex head, self-locking, 16 mm - 2 x 45 mm, (10.9), differential carrier

12шт.

5

D74469

BREATHER

- axle

1шт.

6

N6208

PLATE

- brake mounting

2шт.

7

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex head, 3/4" - 10 NC x 2-1/2", grade 8

12шт.

8

114-733

BOLT,Locking, 3/4" - 16 x 3-3/4", Gr 8

- hex head, 3/4" - 16 NF x 3 - 3/4", plated, grade 8, housing to spindle and brake mounting plate

12шт.

9

D74504

WASHER

- flat, differential carrier

12шт.

10

K12362

PLUG

- filler

1шт.

11

129-182

NUT - hex, 3/4" - 16 NF

12шт.

12

28-1276

BOLT,Hex, 3/4" - 16 x 4-3/4", Gr 8

- hex head, 3/4" - 16 NF x 4-3/4", grade 8

12шт.

13

L79179

WASHER

- flat

48шт.

NSS

NOT SOLD SEPARAT

HUB ASSEMBLY - axle, Includes: Ref. 14 - 37

2шт.

14

N6228

GEAR

RING GEAR - planetary

1шт.

15

N7079

HUB

- ring gear

1шт.

16

N6230

RING, SNAP

RETAINER - ring gear

1шт.

17

N7080

SPINDLE

- wheel

1шт.

18

N7081

NUT

- ring gear hub

1шт.

19

N6233

RING, SNAP

RING - lock

2шт.

20

N6234

NUT

RING - nut retaining

1шт.

21

N14637

OIL SEAL

OIL SEAL - hub

1шт.

22

N6236

DISC

- brake

1шт.

23

N6237

GEAR

SUN GEAR - planetary

1шт.

24

A12522

WHEEL NUT

- wheel

16шт.

25

514-806

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9

- hex head, 12 mm - 1.75 x 35 mm (10.9)

35шт.

26

514-901

BOLT,Hex, M14 x 2 x 35mm, Cl 10.9

- hex head, 14 mm - 2.00 x 35 mm (10.9)

1шт.

27

N6260

WASHER

THRUST WASHER - sun gear

1шт.

28

D74508

WASHER

- hardened

35шт.

29

D74509

WASHER

- hardened

1шт.

30

N6263

SNAP RING,M55, Ext

- sun gear

1шт.

N7052

HUB

ASSEMBLY - wheel

1шт.

31

NSS

NOT SOLD SEPARAT

HUB - wheel

1шт.

N6226

BEARING ASSY

TAPERED ROLLER BEARING ASSEMBLY - hub, Includes: Ref. 32 and 33

2шт.

32

NSS

NOT SOLD SEPARAT

BEARING - tapered roller

1шт.

33

NSS

NOT SOLD SEPARAT

CUP - tapered roller bearing

1шт.

34

D74503

STUD

- hub

18шт.

35

D74505

NUT

- stud, Serial Range: disc-hub

18шт.

36

N6259

WASHER

- special

18шт.

37

D80560

STUD

BOLT - wheel, hub

16шт.
