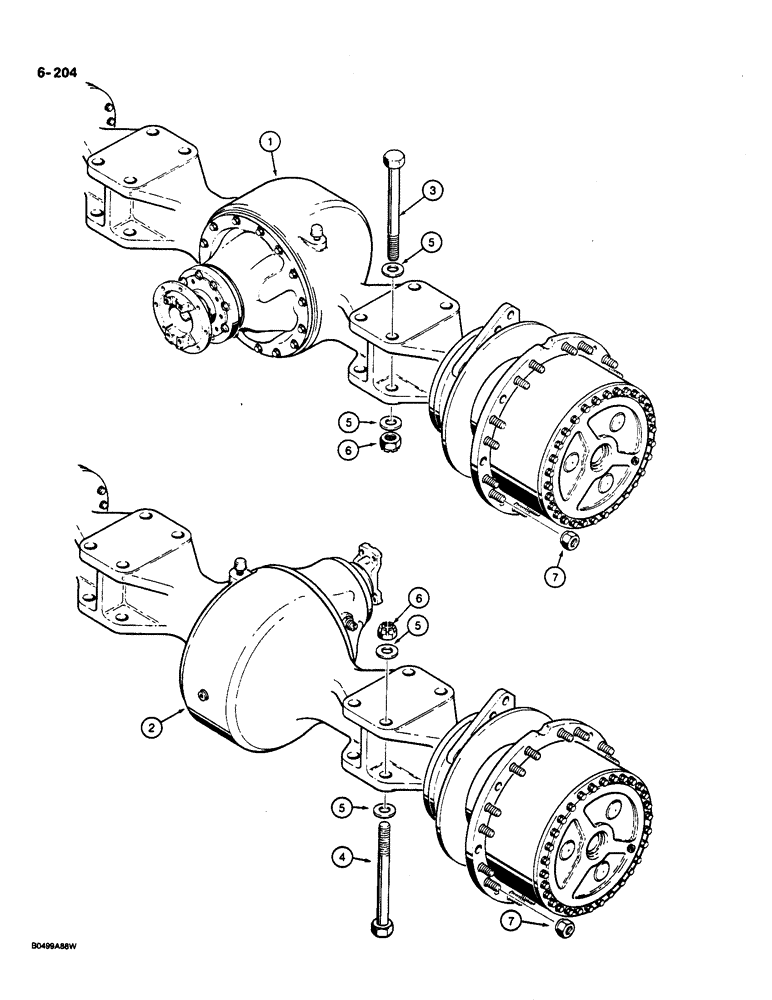

Запчасти Case W36 (6-204) - AXLE ASSEMBLIES AND MOUNTING (06) - POWER TRAIN

1

L79467

AXLE HOUSING

AXLE - front, includes parts on Figures 6-206 - 6-210

1шт.

2

L79468

AXLE HOUSING

AXLE - rear, includes parts on Figures 6-206 - 6-210

1шт.

3

116-1002

BOLT,Hex, 1-1/4" - 12 x 13", Gr 8

- hex head, 1-1/4 - 12 NF x 13", grade 8

8шт.

4

116-1000

SCREW,Hex, 1 1/4" - 12 x 12 1/2", Gr 8

BOLT - hex head, 1-1/4" - 12 NF x 12-1/2", rear axle

8шт.

5

G32351

WASHER

- 1-1/4", hardened

32шт.

6

131-1241

NUT,1 1/4"-12, GC

- hex, self-locking, 1-1/4" - 12 NF

16шт.

7

A12522

WHEEL NUT

- 3/4" - 16 NF, plated, special, wheel

64шт.
