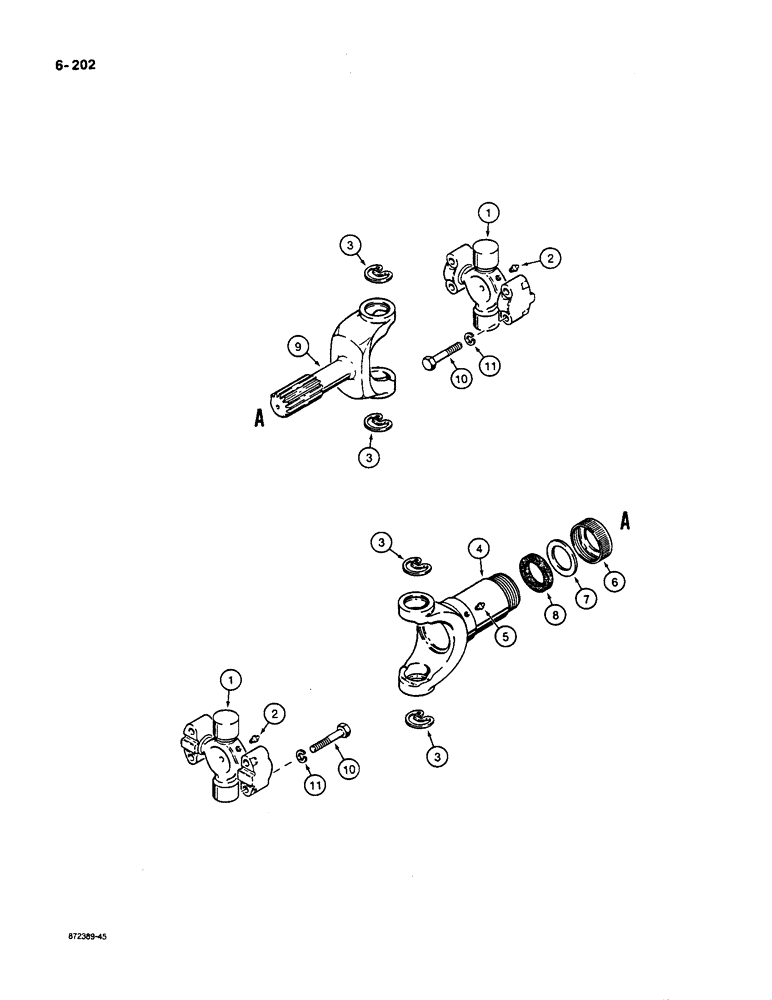

Запчасти Case W36 (6-202) - REAR DRIVE SHAFT (06) - POWER TRAIN

E155969

DRIVE SHAFT

SHAFT ASSEMBLY - drive, rear, Includes: Ref. 1 - 9

1шт.

E67291

DIFF. SPIDER

KIT - repair, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

JOINT - universal

2шт.

2

219-10

LUBE NIPPLE,1/4" - 28 NPTF

GREASE FITTING - straight, 1/4" - 28 NF taper

1шт.

3

E67286

RING, SNAP

RING - snap

2шт.

E156922

TUBE

YOKE AND TUBE ASSEMBLY - slip, axle end, Includes: Ref. 4 - 8

1шт.

4

NSS

NOT SOLD SEPARAT

YOKE AND TUBE - slip

1шт.

5

219-4

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, special extra short, 1/8" NPT

1шт.

E156184

SET

KIT - dust cap, Includes: Ref. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

CAP - dust

1шт.

7

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER - felt

1шт.

9

E156909

TUBE

YOKE AND TUBE ASSEMBLY - splined, transmission end

1шт.

10

28-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 8

- hex head, 1/2" - 20 NF x 2-1/4", grade 8

8шт.

11

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.
