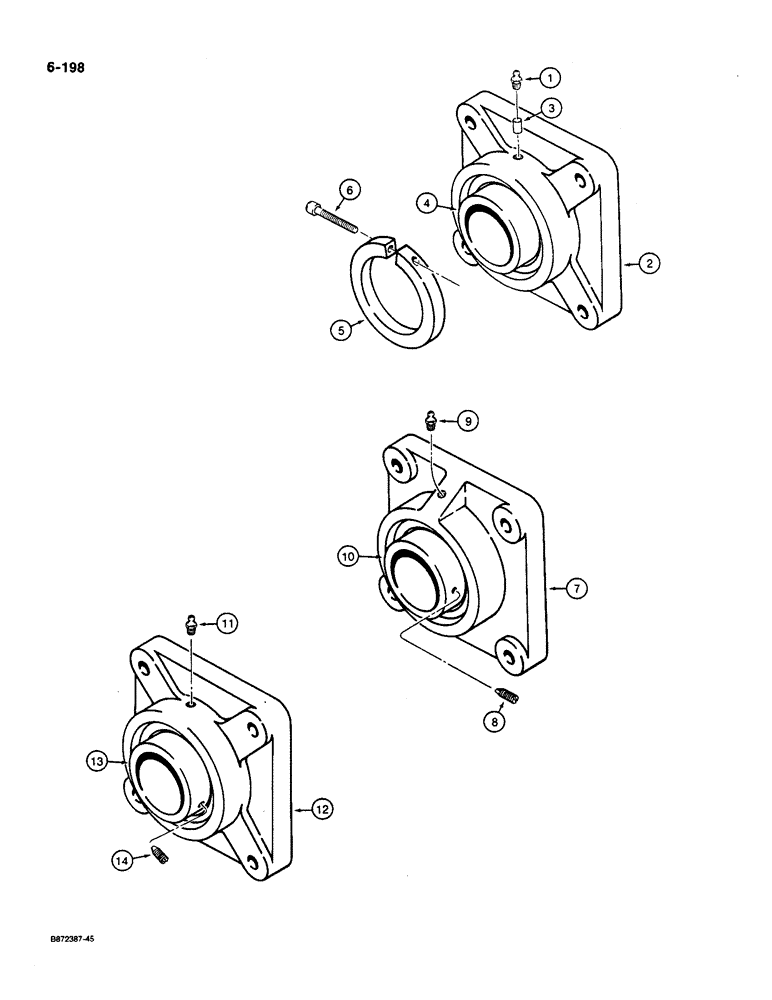

Запчасти Case W36 (6-198) - DRIVE SHAFT SUPPORT BEARINGS (06) - POWER TRAIN

L106406

FLANGED BEARING

BEARING ASSEMBLY - drive shaft support, with collar, L106406, Includes: Ref. 1 - 6

1шт.

1

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, bearing, L106406

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - bearing, L106406

1шт.

3

L35005

PIN

- lock, bearing, L106406

1шт.

N7358

BEARING ASSY

KIT - repair, bearing and collar, L106406, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

BEARING AND SEAL - drive shaft support, L106406

1шт.

5

NSS

NOT SOLD SEPARAT

COLLAR - bearing, L106406

1шт.

6

61-516

HEX SOC SCREW,5/16"-18 x 1"

BOLT - hex socket head, 5/16" - 18 NC x 1", bearing, L106406

1шт.

E68028

SUPPORT

BEARING ASSEMBLY - drive shaft support, uses set screws and grease fitting inserted at an angle into the bearing housing, bearing, E68028, Includes: Ref. 7 - 10

1шт.

7

NSS

NOT SOLD SEPARAT

HOUSING - bearing, E68028

1шт.

8

83-78

SET SCREW,Hex Soc, 7/16"-14 x 1/2"

SCREW - set, hex socket, cup point, 7/16" - 14 NC x 1/2", bearing, E68028

1шт.

9

219-27

LUBE NIPPLE,3/8" - 24

FITTING - grease, straight, 3/8" - 24 NF, bearing, E68028

1шт.

10

E68106

BEARING ASSY

BEARING - drive shaft support, E68028

1шт.

E64065

BEARING ASSY

BEARING ASSEMBLY - drive shaft support, uses set screws and grease fitting inserted straight into the bearing housing, E64065, Includes: Ref. 11 - 14

1шт.

11

219-25

LUBE NIPPLE,5/16" - 32

NIPPLE, LUBE, , Bearing, E64065 5/16"-32 x .66 lg

1шт.

12

NSS

NOT SOLD SEPARAT

HOUSING - bearing, E64065

1шт.

13

E68107

BEARING ASSY

BEARING - drive shaft support, E64065

1шт.

14

84-66

SET SCREW

SCREW - set, hex socket, cup point, 3/8" - 24 NF x 3/8", bearing, E64065

2шт.
