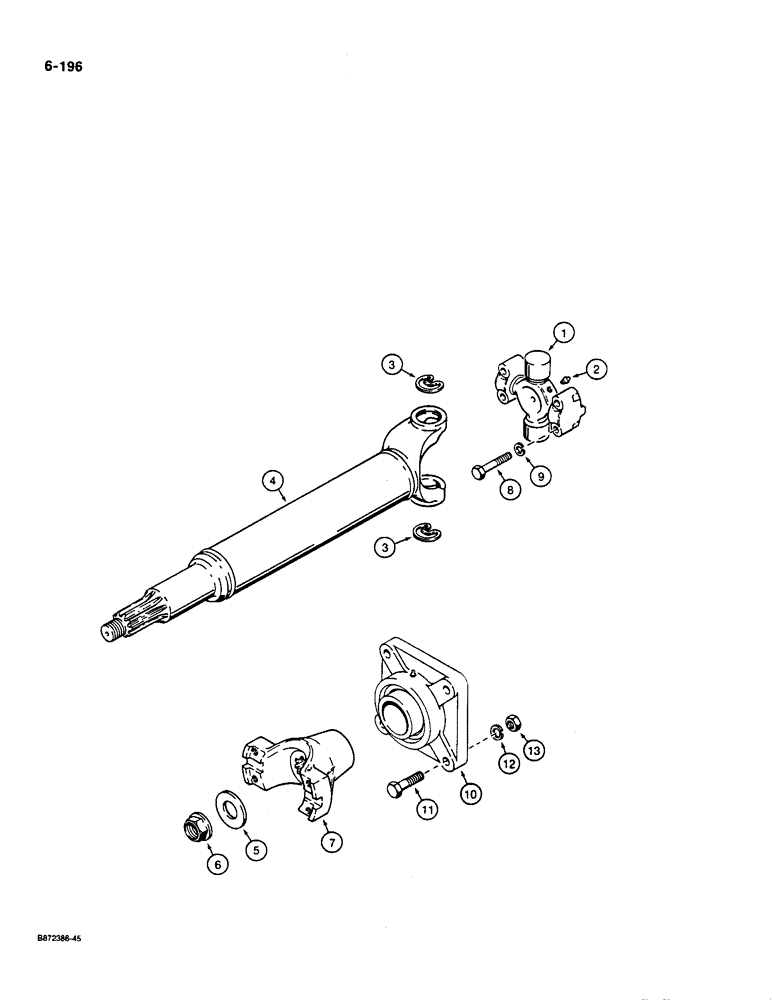

Запчасти Case W36 (6-196) - FRONT DRIVE SHAFT (06) - POWER TRAIN

E155967

DRIVE SHAFT

SHAFT ASSEMBLY - drive, front, Includes: Ref. 1 - 7

1шт.

E67291

DIFF. SPIDER

KIT - repair, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

JOINT - universal

1шт.

2

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4" - 28 NF taper

1шт.

3

E67286

RING, SNAP

RING - snap

2шт.

4

E156908

TUBE

YOKE AND TUBE - axle end

1шт.

5

E156259

WASHER

- hardened

1шт.

6

E156258

NUT

- special

1шт.

7

E95953

YOKE

- splined, drive shaft to center bearing

1шт.

8

28-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 8

- hex head, 1/2" - 20 NF x 2-1/4", grade 8

4шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

10

REF

INSTRUCTION

BEARING - support, drive shaft, see Figure 6-199 for correct assembly and components

1шт.

11

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

4шт.

12

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

13

129-107

NUT,5/8"-11, G5

4шт.
