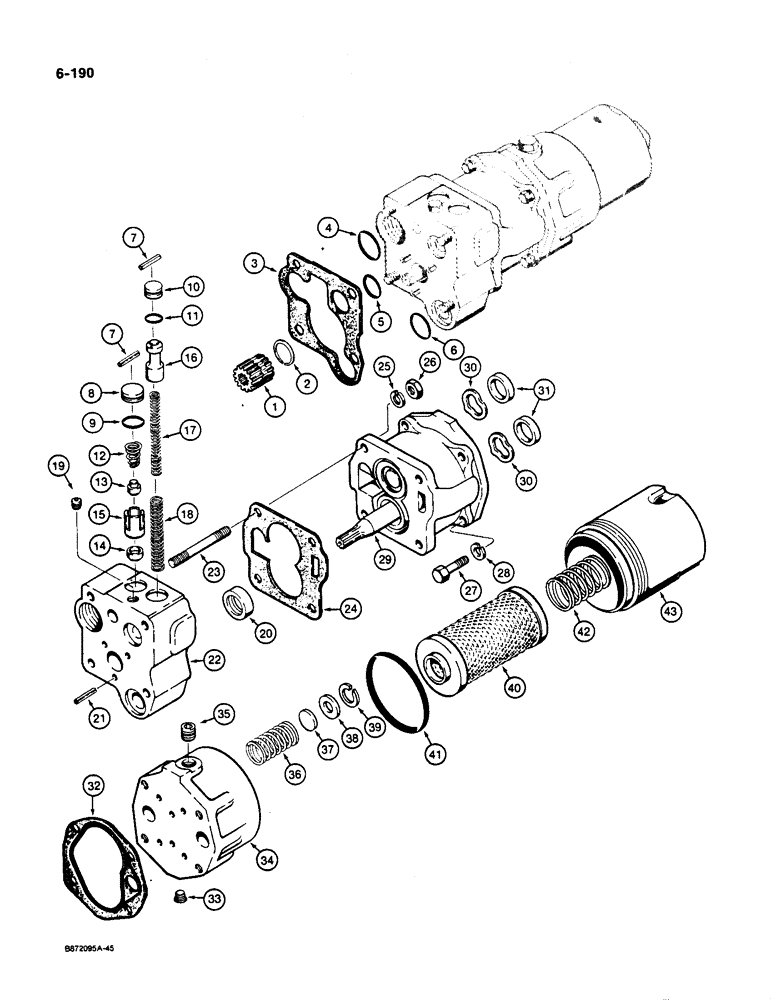

Запчасти Case W36 (6-190) - TRANSMISSION ASSEMBLY, FILTER, CHARGING PUMP AND PRESSURE REGULATOR VALVE (06) - POWER TRAIN

1

D78317

GEAR WHEEL

GEAR ASSEMBLY - drive, Includes: Ref. 2

1шт.

2

A18024

RING, SNAP

RING - retaining, drive gear

1шт.

3

N6271

GASKET

- valve

1шт.

4

L33541

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

- 1-3/16" (30 mm) ID

1шт.

5

L33542

O-RING,0.139" Thk x 0.796" ID, -211, Cl 7, 75 Duro

- 13/16" (21 mm) ID

1шт.

6

L33540

O-RING,0.139" Thk x 0.984" ID, -214, Cl 7, 70 Duro

- 1" (25 mm) ID

1шт.

L33537

VALVE

ASSEMBLY - pressure regulator, Includes: Ref. 7 - 22

1шт.

7

138-83

LOCK PIN,5/32" x 1 3/4", Slotted

PIN, 5/32" x 1 3/4", Slotted

2шт.

8

D59677

STOP

- large

1шт.

9

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- large

1шт.

10

A18038

STOP

- small

1шт.

11

A64436

O-RING,0.549" ID x 0.755" OD

- small

1шт.

12

A18004

SPRING

- safety valve

1шт.

13

A18003

PLUNGER

POPPET - safety valve

1шт.

14

D59678

SEAT

- poppet

1шт.

15

D59679

SEAT

SLEEVE - safety valve

1шт.

16

L33553

VALVE

PISTON - valve

1шт.

17

L30048

VALVE SPRING

SPRING - inner

1шт.

18

D76971

SPRING

- outer

1шт.

19

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

20

L33556

OIL SEAL

OIL SEAL - shaft

1шт.

21

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

3шт.

22

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

23

REFERENCE

SPARE PART

- 7/16" - 20 NF

4шт.

24

L33539

GASKET,0.71mm Thk

- valve

1шт.

25

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

26

425-117

NUT,7/16"-20, G5

- hex, 7/16" - 20 NF, plated

4шт.

D77014

PUMP

CHARGING PUMP AND FILTER ASSEMBLY - transmission, Includes: Ref. 27 - 43

1шт.

27

113-311

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

4шт.

28

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

29

D77005

PUMP

ASSEMBLY - charging, Includes: Ref. 30 and 31

1шт.

30

D73734

SPRING

- wave

2шт.

31

D73735

RING

SEAL - shaft

2шт.

32

L33566

GASKET

-, Serial Range: pump-filter

1шт.

33

221-850

PLUG,Hex Soc, 1/16"-27

- hex socket head, 1/16" NPT

1шт.

34

D73733

ADAPTER

- filter

1шт.

35

221-841

PLUG

- hex socket head, 1/4" NPT

1шт.

36

L33571

VALVE SPRING

SPRING - bypass

1шт.

37

L33572

DISC

- bypass

1шт.

38

L33573

SEAT

- bypass

1шт.

39

R16289

SNAP RING,1.06", Int, #106

Ring, Snap, , seat 1.06", Int, #106

1шт.

D52932

FILTER, ELEMENT

KIT - filter element, Includes: Ref. 40 and 41

1шт.

40

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

41

D31954

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

- filter

1шт.

42

L33570

SPRING

- filter

1шт.

43

L33569

HOUSING

COVER - filter

1шт.
