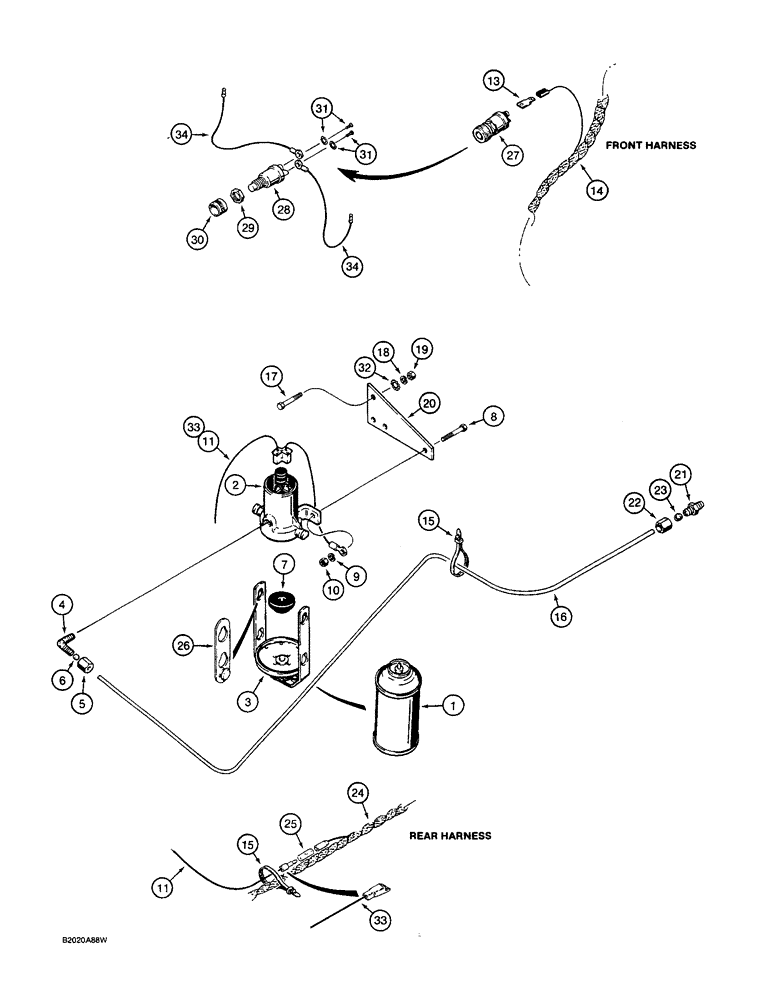

Запчасти Case W36 (4-194) - COLD START SYSTEM (04) - ELECTRICAL SYSTEMS

1

B17072

START SPRAY FLUID

CONTAINER - ether

1шт.

L73025

STARTING MOTOR

SOLENOID ASSEMBLY - 24V, Includes: Ref. 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

SOLENOID - cold start

1шт.

3

D77648

BAIL

- container

1шт.

A44809

FITTING

- 90 degrees, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

5

222-110

TUBE NUT,3/8"-24

COMPRESSION UNIT - fitting

1шт.

6

222-100

TUBE NUT,1/8" Tube

SLEEVE - compression

1шт.

7

395686R1

GASKET

- solenoid

1шт.

8

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

9

92-5

LOCK WASHER,5/16"

2шт.

10

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

11

L73023

ELECTRICAL WIRE

WIRE - jumper, Serial Range: -9156438

1шт.

12

RESERVED

1шт.

13

L59682

TERMINAL CONNECTOR

TERMINAL - electrical, straight, Serial Range: -9156438

2шт.

14

REF

INSTRUCTION

HARNESS - front, parts list Figs. 4-112 - 4-120

1шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

16

L16688

TUBE,0.078" ID x 0.125" OD x 32" L

- nylon

1шт.

17

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

18

92-5

LOCK WASHER,5/16"

2шт.

19

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

20

L71626

COVER PLATE

PLATE - mounting

1шт.

L73024

NOZZLE CAP

NOZZLE ASSEMBLY - cold start, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

BODY - nozzle

1шт.

22

222-110

TUBE NUT,3/8"-24

COMPRESSION NUT - nozzle

1шт.

23

222-100

TUBE NUT,1/8" Tube

SLEEVE - compression

1шт.

24

REF

INSTRUCTION

HARNESS - rear, parts list Figures 4-112 - 4-120

1шт.

25

223-125

TUBE

- protection, Serial Range: -9156438

1шт.

26

R30812

LINK

- bail

2шт.

27

L72776

SWITCH

- push button, Includes: Ref. 28 - 31

1шт.

28

NSS

NOT SOLD SEPARAT

BODY - switch

1шт.

29

D73741

NUT

- hex, special

1шт.

30

H275784

JAM NUT

- special

1шт.

31

173-93

BOLT,Sl Rnd Hd, #10 - 24 x 1/4"

SCREW - round head, no. 10 - 32 NF x 1/4", with lockwasher

2шт.

32

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

2шт.

33

L114172

HARNESS

WIRE - jumper, Start Serial: 9156438

1шт.

34

L114446

HARNESS

WIRE - cold start button, Start Serial: 9156438

2шт.
