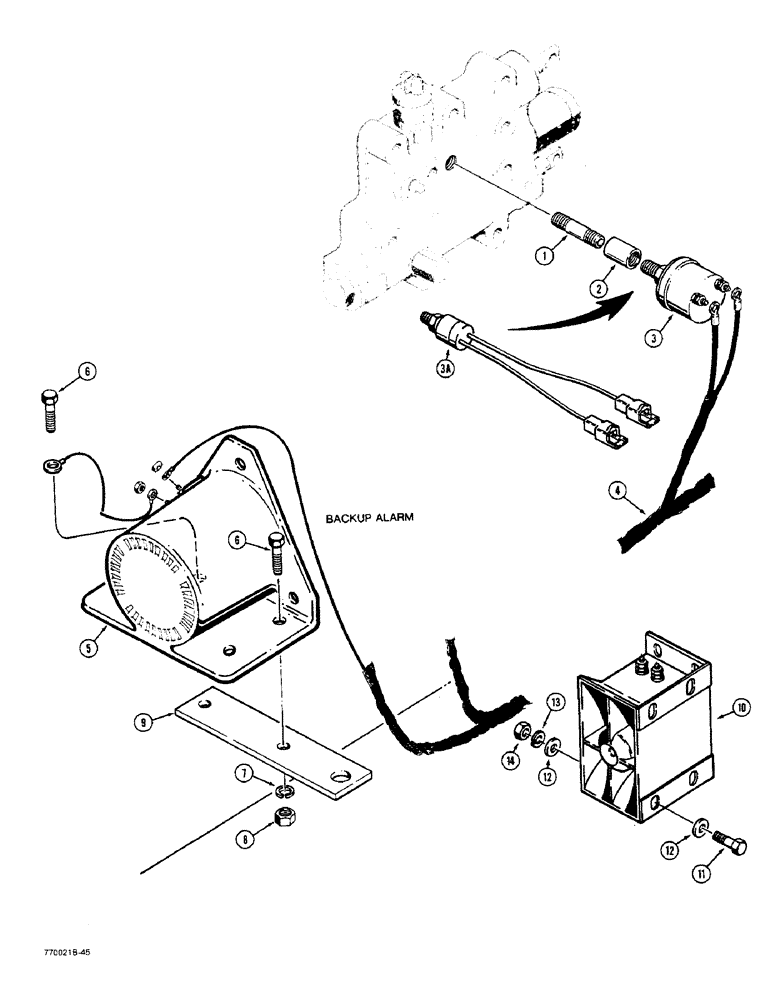

Запчасти Case W36 (4-192) - BACKUP ALARM (04) - ELECTRICAL SYSTEMS

1

221-106

PIPE,Nipple, 1/8" NPT x 1 1/2"

NIPPLE - 1/8" NPT, Serial Range: -9131088

1шт.

2

221-326

COUPLING,Pipe, 1/8" NPT

- 1/8" NPT, Serial Range: -9131088

1шт.

3

L77235

SWITCH

- backup alarm, has screw type terminals, order Ref. 3A and L36238 kit below

1шт.

3a

L112588

SWITCH

- backup alarm, has spade type terminals

1шт.

4

REF

INSTRUCTION

HARNESS - rear, see Figs. 4-126 through 4-134

1шт.

5

D75814

BUZZER

ALARM - backup, order L109087 alarm, Ref. 10, and Refs. 11, 12, 13, and 14 for service

1шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Used with D75814 alarm Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

7

92-6

LOCK WASHER,3/8"

used with D75814 alarm 3/8"

2шт.

8

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, used with D75814 alarm

2шт.

9

L73572

PLATE

- mount, if used

1шт.

10

L109087

HOUSING

ALARM - backup

1шт.

11

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Used with L109087 alarm Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

12

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16", used with L109087 alarm

4шт.

13

92-5

LOCK WASHER,5/16"

used with L109087 alarm 5/16"

2шт.

14

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC, used with L109087 alarm

2шт.

L36238

KIT

- electrical, includes parts to adapt different switches to different harnesses

1шт.
