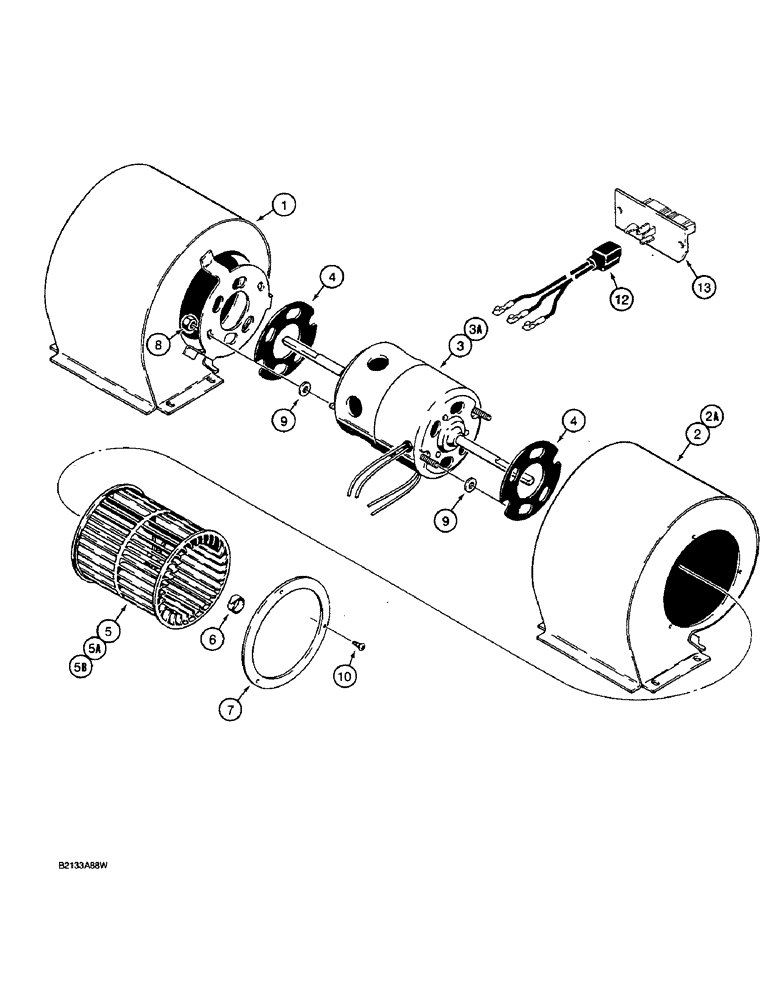

Запчасти Case W36 (4-188) - CAB BLOWERS - PRODUCTION (04) - ELECTRICAL SYSTEMS

N9827

HEATER

BLOWER ASSEMBLY - cab, SGM6009-24V-LP, no longer available, order L36322 kit listed on Fig. 4-150, Includes: Ref. 1 - 13

1шт.

D71529

HEATER

BLOWER ASSEMBLY - cab, identified as Hupp no. 63462-G4, no longer available, order L36322 kit listed on Fig. 4-150, Includes: Ref. 1 - 13

1шт.

D87193

BLOWER ASSEMBLY - cab, no identification, used Leece-Neville motor no. F001-7411-FB-date, no longer available, order L36322 kit listed on Fig. 4-150, Includes: Ref. 1 - 13

1шт.

1

D72757

HOUSING

- D71529 blower, left-hand

1шт.

2

D72758

HOUSING

- D71529 blower, right-hand

1шт.

2a

NSS

NOT SOLD SEPARAT

HOUSING - D87193 blower

1шт.

3

D72759

MOTOR, ELECTRIC

MOTOR - D71529 blower, 24V

1шт.

3a

D87192

MOTOR

- D87193 blower, 24V, identified as Leece-Neville no. F001-7411-FB-date

1шт.

4

D72760

GASKET

- motor

2шт.

5

D72761

FAN

- D71529 blower

2шт.

5a

D87190

BLOWER,Fan, clockwise rotation

FAN - D87193 and N9827 blower, clockwise rotation

1шт.

5b

D87191

WHEEL

FAN - D87193 and N9827 blower, counterclockwise rotation

1шт.

6

D72762

HOSE CLAMP

CLIP - ring, fan retaining

2шт.

7

D72763

RING

- inlet

2шт.

8

129-37

NUT,#10-32

4шт.

9

195-513

WASHER,#10

- flat, no. 10, plated

4шт.

10

168-66

DRIVE SCREW,Type U, Rnd Hd, #6 x 1/4"

- self-tapping, no. 6

6шт.

11

N8624

MOTOR

- N9827 blower, not shown

1шт.

Ref. 11 - (2.97" O.D. 2 wires 1 Orange, 1 Black)

1шт.

12

N8626

HARNESS

- motor, N9827 blower

1шт.

13

N8625

RESISTOR

- motor, N9827 blower

1шт.
