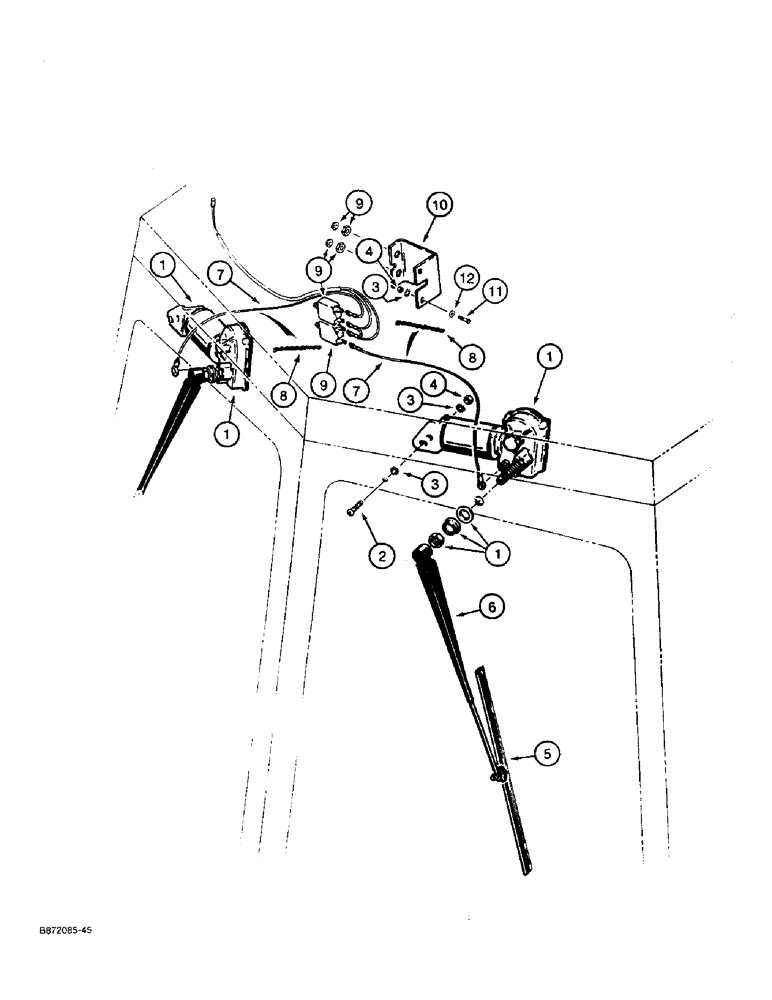

Запчасти Case W36 (4-180) - REAR WIPERS, P.I.N. 9156438 AND AFTER (04) - ELECTRICAL SYSTEMS

1

L115054

WIPER MOTOR

MOTOR - wiper, rear

2шт.

2

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- pan head, no. 10 - 24 NC x 1/2"

2шт.

3

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

6шт.

4

129-17

NUT,Hex, #10 - 24

NUT - hex, no. 10 - 24 NC

4шт.

5

F43517

WIPER BLADE

BLADE - wiper, 12" (305 mm) long

2шт.

6

F43516

ARM

- wiper, 6" - 10" (152 - 254 mm) long, adjustable

2шт.

7

L115417

HARNESS

WIRE - circuit, Serial Range: breaker-wiper

2шт.

8

A176851

CONDUIT

- flex, wire

2шт.

9

L76726

BREAKER

CIRCUIT BREAKER - 3 amp, includes hardware

2шт.

10

L115450

BRACKET

- circuit breaker

1шт.

11

182-561

SCREW,Slotted Pan Hd, #10-24 x 3/4"

MACHINE SCREW - pan head slotted, no. 10 - 24 NC x 3/4", plated

2шт.

12

195-512

WASHER,#10

- flat, no. 10, plated

2шт.
