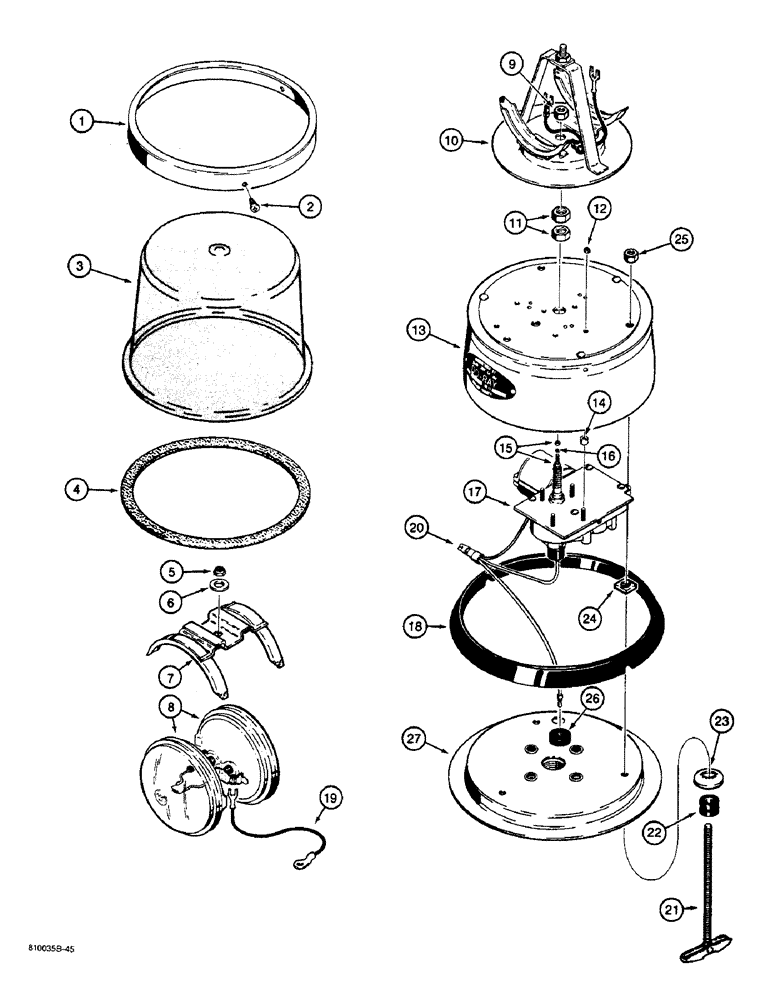

Запчасти Case W36 (4-174) - ROTATING BEACON (04) - ELECTRICAL SYSTEMS

L16676

BEACON

ROTATING BEACON ASSEMBLY - 360 degree, 24 volt, red lens, Includes: Ref. 1 - 26

1шт.

L16100

BEACON

ROTATING BEACON ASSEMBLY - 360 degree, 24 volt, amber lens, Includes: Ref. 1 - 26

1шт.

1

L32219

RING - clamp, Serial Range: lens-body

1шт.

2

168-70

DRIVE SCREW,Type U, Rnd Hd, #8 x 3/8"

- self-tapping, no. 8 - 32 NC x 3/8"

3шт.

3

L32230

LENS

- beacon, red

1шт.

3

L32221

LENS

- beacon, amber

1шт.

4

L32220

GASKET -, Serial Range: lens-body

1шт.

5

131-204

NUT,1/4"-20

NUT - hex, self-locking, 1/4" - 20 NC

1шт.

6

95-4

WASHER,1/4"

- flat, 1/4"

1шт.

7

L32222

BRACKET - retainer, sealed beam

1шт.

8

L32223

LAMP

LIGHT - sealed beam, 24 volt

2шт.

9

129-303

NUT,3/8"-16, G5, LH

- hex, 3/8" - 24 NF, left-hand thread

1шт.

10

L32224

PLATE - mounting, lamp

1шт.

11

L32225

NUT

- special, brass

2шт.

12

131-29

LOCK NUT,#8-32, GB

NUT - hex, self-locking, no. 8 - 32 NC

4шт.

13

L32226

BASE

- motor and lens

1шт.

14

NSS

NOT SOLD SEPARAT

SPACER -, Serial Range: motor-base

4шт.

15

129-13

NUT,#4-40

2шт.

16

192-3

LOCK WASHER

- lock, no. 4

1шт.

17

L32229

MOTOR - electric, 24 volt

1шт.

18

L32227

GASKET

- base

1шт.

19

L35144

WIRE - ground, bulbs

1шт.

L35092

KIT

- mounting, includes a wire not used on this tractor, Includes: Ref. 20 - 26

1шт.

20

T29401

NUT

- wire, twist on, small white

1шт.

21

L35148

BOLT

- toggle, no. 10 - 24 NC, not used with L104480 cage

3шт.

22

F13115

GROMMET

- rubber, mounting, not used with L104480 cage

3шт.

23

L35146

LOCK WASHER

WASHER - lock, no. 10, not used with L104480 cage

3шт.

24

129-47

NUT

- square, no. 10 - 24 NC, not used with L104480 cage

3шт.

25

86625057

NUT,#10-24, GB

NUT, LOCK, , Not used with L104480 cage #10-24, GB

3шт.

26

A43211

GROMMET

- rubber, wire

1шт.

27

L16101

MOUNT - beacon

1шт.

127158A1

LENS

blue, available for the A187528 and A187985 beacons

1шт.
