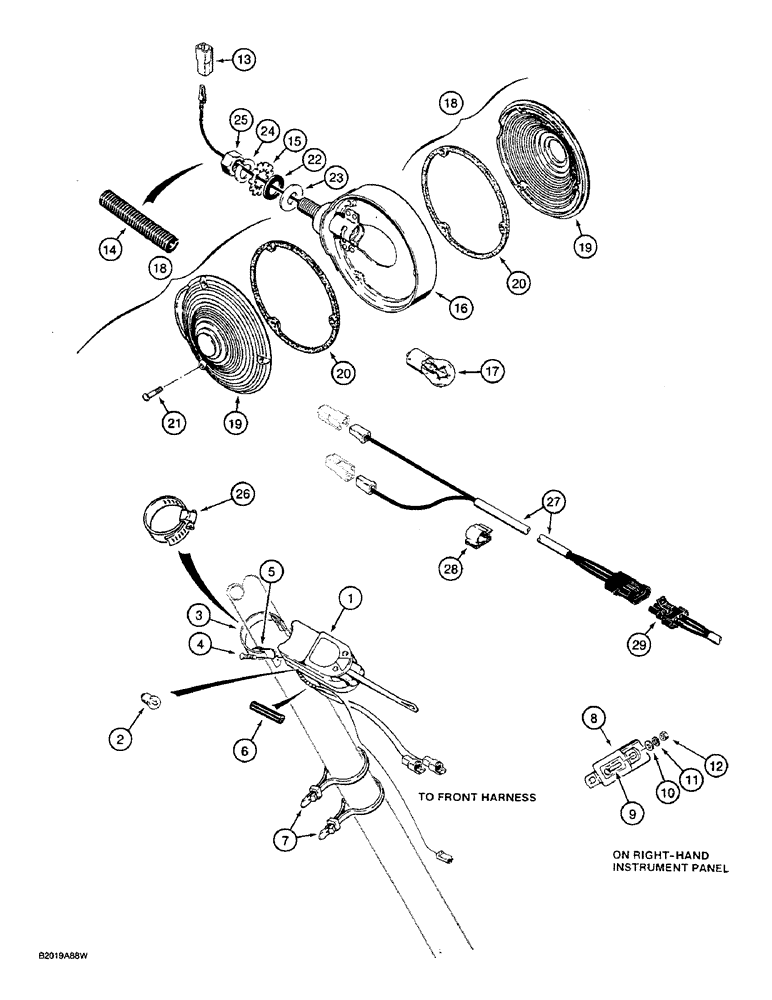

Запчасти Case W36 (4-168) - TURN SIGNAL AND FLASHER LAMP, P.I.N. 9156438 AND AFTER (04) - ELECTRICAL SYSTEMS

L114396

SIGNAL

SWITCH ASSEMBLY - turn and flasher, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

SWITCH - turn signal

1шт.

2

A14928

BULB

- direction indicator, no. 356

1шт.

3

L32658

STRAP

- mounting, turn signal switch

1шт.

L32659

KIT

HARDWARE PACKAGE - mounting, turn signal, Includes: Ref. 4 and 5

1шт.

4

169-148

SCREW,Sl Fil Hd, #8 - 32 x 1"

- flat head machine, no. 8 - 32 NC x 1"

2шт.

5

NSS

NOT SOLD SEPARAT

CLIP - strap mounting

2шт.

6

L77320

CONDUIT

- flex, wire cover

1шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

8

L59781

FLASHER UNIT

FLASHER - signal

1шт.

9

182-561

SCREW,Slotted Pan Hd, #10-24 x 3/4"

- pan head, no. 10 - 24 NC x 3/4"

2шт.

10

495-21025

WASHER

- flat, no. 10, plated

2шт.

11

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

12

129-17

NUT,Hex, #10 - 24

NUT - hex, no. 10 - 24, plated

2шт.

13

223-166

CONNECTOR, ELEC

CONNECTOR - female

2шт.

14

L115340

CONDUIT

- flex, wire cover, used on models with cab only

1шт.

15

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

L114187

SUPPORT

LAMP ASSEMBLY - turn signal and flasher, Includes: Ref. 16 - 25

2шт.

16

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

17

L32257

BULB

- lamp, no. 307

1шт.

18

L32214

LENS

KIT - lamp, flasher, Includes: Ref. 19 - 21

2шт.

19

NSS

NOT SOLD SEPARAT

LENS - lamp

1шт.

20

NSS

NOT SOLD SEPARAT

GASKET - lens

1шт.

21

182-47

SCREW,Sl Pan Hd, #6 - 32 x 5/8"

- machine, pan head slotted, no. 6 - 32 NC x 5/8"

3шт.

22

L32256

WASHER

- rubber, special

1шт.

23

195-106

WASHER,1/2"

- flat, , plated 1/2"

1шт.

24

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

25

129-125

NUT,1/2"-20, G5

1шт.

26

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - turn signal and flasher

1шт.

27

L114432

HARNESS

- compartment, export, if used

1шт.

28

L100659

CLIP

- harness, if used

1шт.

29

L115289

CONNECTOR, ELEC

CONNECTOR - harness, 3-way, if used

1шт.
