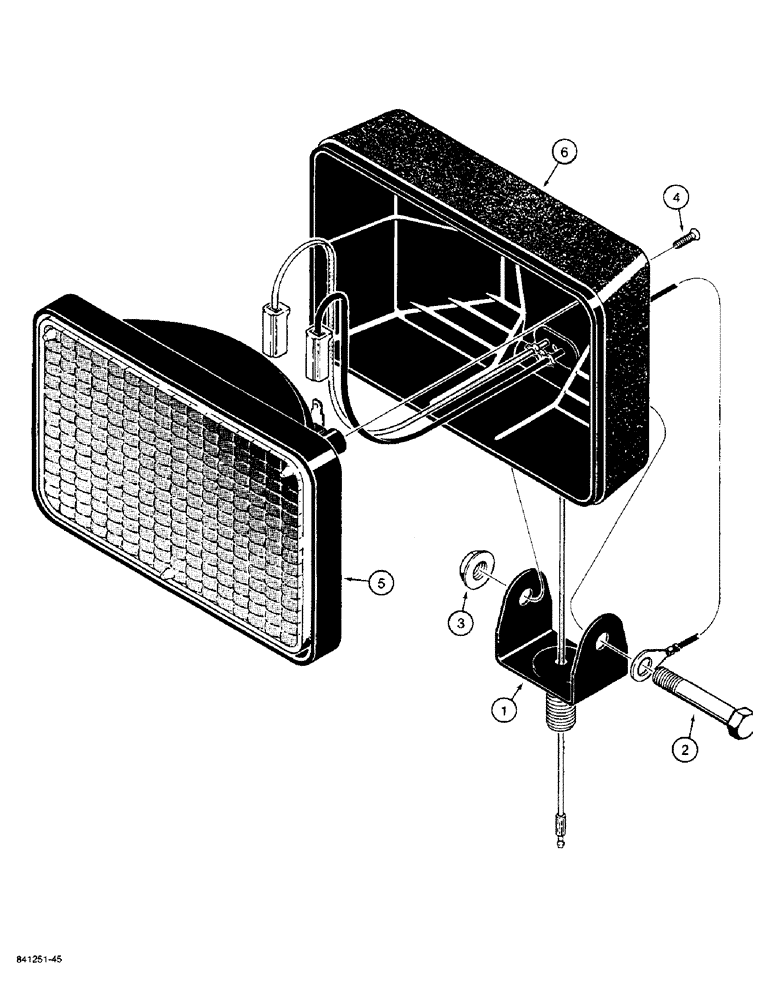

Запчасти Case W36 (4-158) - LAMPS - FRONT AND REAR, FRONT LAMP (04) - ELECTRICAL SYSTEMS

L113374

LIGHT

LAMP ASSEMBLY - front, driving, Includes: Ref. 1 - 6

2шт.

P/N L113374 Lamp Assy is for mounting on the Upper Front Chassis.

1шт.

1

N8347

SUPPORT

BRACKET - lamp

1шт.

2

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

3

131-937

FLANGE NUT,Flg, 5/16"-18

NUT - hex, flange type, special locking, 5/16"-18 NC, plated

1шт.

4

187-625

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

SCREW - self-tapping, no. 8 - 18 x 1/2"

2шт.

5

N9427

HEADLIGHT

BULB - sealed beam

1шт.

6

NSS

NOT SOLD SEPARAT

HOUSING - lamp

1шт.

L113373

LIGHT ASSY.

LAMP ASSEMBLY - flood, front and rear, Includes: Ref. 1 - 6

2-4шт.

P/N L113373 Lamp Assy is for mounting on the Lower Front Chassis.

1шт.

1

N8437

CAP

BRACKET - lamp, front and rear flood

1шт.

2

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Front and rear flood lamp Hex, 5/16"-18 x 2", G5

1шт.

3

131-937

FLANGE NUT,Flg, 5/16"-18

NUT - hex, flange type, special locking, 5/16"-18 NC, plated, front and rear flood lamp

1шт.

L113375

LIGHT ASSY.

LAMP ASSEMBLY - without bracket, for cab or canopy, front and rear flood, Includes: Ref. 4 - 6

2шт.

P/N L113375 Lamp Assy is for mounting on the Cab or Canopy.

1шт.

4

187-625

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

SCREW - self-tapping, no. 8 - 18 x 1/2", front and rear flood lamp

2шт.

5

F45305

HEADLIGHT

BULB - sealed beam, front and rear flood lamp

1шт.

6

NSS

NOT SOLD SEPARAT

HOUSING - lamp, front and rear flood

1шт.
