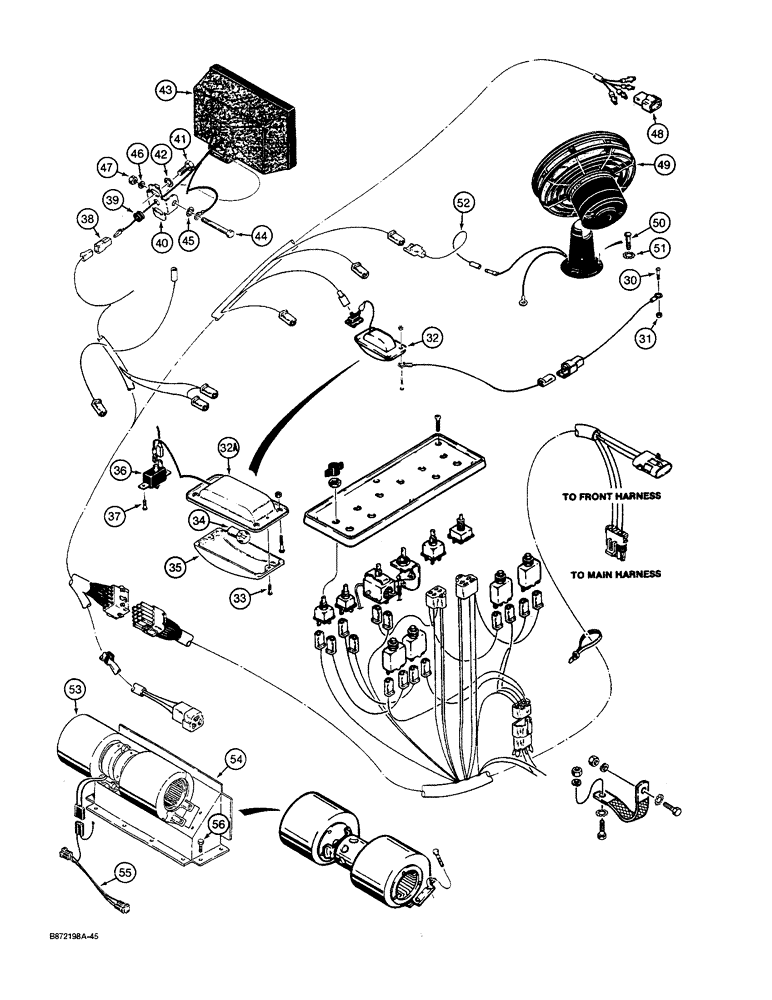

Запчасти Case W36 (4-150) - ELECTRICAL SYSTEM, OPERATORS COMPARTMENT, P.I.N. 9156438 AND AFTER (04) - ELECTRICAL SYSTEMS

30

182-561

SCREW,Slotted Pan Hd, #10-24 x 3/4"

MACHINE SCREW - pan head slotted, no. 10 - 24 NC x 3/4", plated

1шт.

31

129-17

NUT,Hex, #10 - 24

NUT - hex, no. 10 - 24 NC, plated

1шт.

32

D71519

LAMP

ASSEMBLY - dome, Includes: Ref. 32A - 35

1шт.

32a

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

33

173-297

SCREW,Phil Rnd Hd, #8 - 32 x 1/4"

- no. 8 - 32 NC x 1/4"

2шт.

34

D71459

LAMP

BULB - 24V, dome, no. 1591

1шт.

35

D71458

LAMP

LENS - dome lamp

1шт.

36

D75876

IGNITION SWITCH

SWITCH - dome lamp

1шт.

37

179-158

SCREW,Cross Oval Hd, #6 - 32 x 3/8"

MACHINE SCREW - oval Phillips, head, no. 6-32 NC x 3/8", plated

2шт.

38

223-166

CONNECTOR, ELEC

CONNECTOR - female

2шт.

39

L13766

GROMMET

- wire, used on models with cab only

2шт.

40

L113415

BRACKET

- flood lamp

2шт.

41

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

42

193-72

LOCK WASHER

- internal-external tooth lock, 3/8", plated

4шт.

43

REF

INSTRUCTION

FLOOD LAMP - see parts list Fig. 4-116

2шт.

44

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex head, 5/16" - 18 NC x 2-1/4", plated

2шт.

45

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

2шт.

46

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

47

425-105

NUT,5/16"-18, G5

- hex, 5/16" - 18 NC, plated

2шт.

48

S107089

CONNECTOR, ELEC

CONNECTOR - wire

1шт.

49

REF

INSTRUCTION

FAN - defroster, parts list Fig. 4-164

1шт.

50

182-561

SCREW,Slotted Pan Hd, #10-24 x 3/4"

MACHINE SCREW - pan head slotted, no. 10 - 24 NC x 3/4", plated

3шт.

51

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

3шт.

52

L123962

ELECTRICAL WIRE

WIRE - defroster to cab harness

1шт.

L36322

PACKAGE

KIT - replacement, cab blower, includes instruction sheet, Includes: Ref. 53 - 55

1шт.

53

NSS

NOT SOLD SEPARAT

BLOWER ASSEMBLY - cab, not available as a complete assembly, order component parts listed on Fig. 4-190

1шт.

54

L126996

AIR TUBE

PLENUM - blower

1шт.

55

L126997

CABLE

- jumper

1шт.
