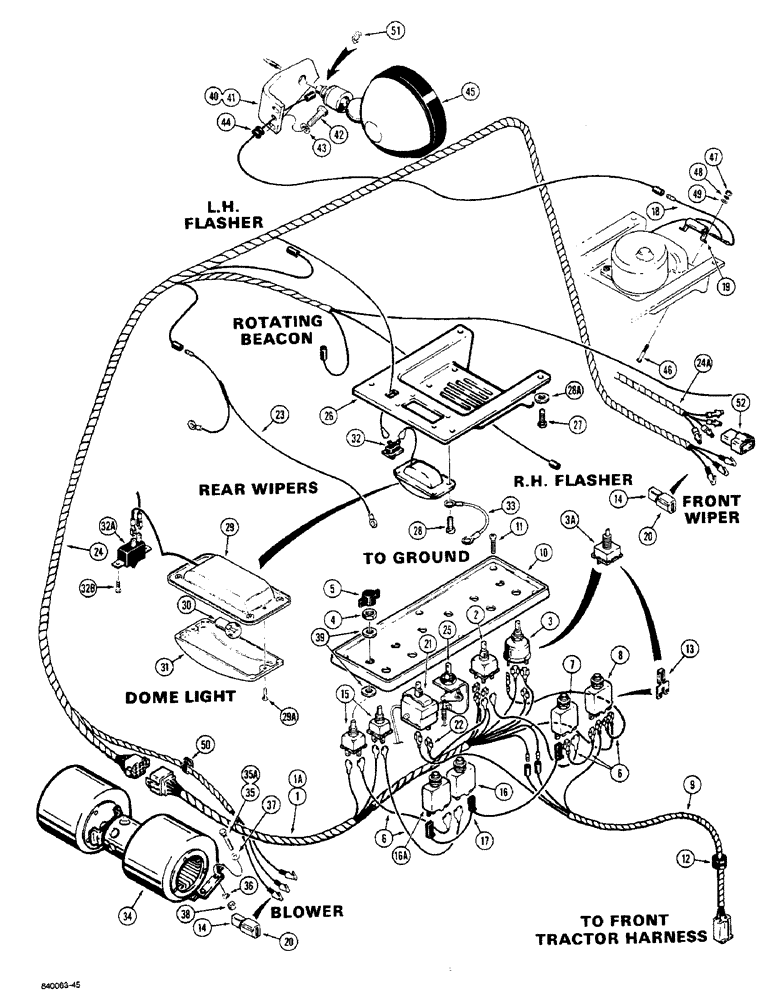

Запчасти Case W36 (4-144) - ELECTRICAL SYSTEM, OPERATORS COMPARTMENT, PRIOR TO P.I.N. 9156438 (04) - ELECTRICAL SYSTEMS

1

L74804

HARNESS

- panel to cab, used, Serial Range: -9153007

1шт.

1a

L111273

HARNESS

- panel to cab, used, Start Serial: 9153007

1шт.

2

A42622

SWITCH

- blower

1шт.

3

F43359

SWITCH

- wiper, used, Serial Range: -9153007

1шт.

3a

L111292

SWITCH

- wiper, used, Start Serial: 9153007

1шт.

4

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- switches

2-6шт.

5

L74694

KNOB

- switches

2-6шт.

6

F43266

ELECTRICAL WIRE

WIRE - jumper

3-5шт.

7

L59972

BREAKER

CIRCUIT BREAKER - 15 amp

1шт.

8

L76726

BREAKER

CIRCUIT BREAKER - 3 amp

1шт.

9

L101236

HARNESS

- panel power supply

1шт.

10

L111337

PANEL

- accessory

1шт.

11

187-1098

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - Phillips, no. 10 - 16 NC x 3/4"

6шт.

12

A75994

GROMMET,5/16" ID x 3/4" Groove Dia, Str Cut

- wire

1шт.

13

F43508

SPADE TERMINAL

TERMINAL - double spade, if used

3-5шт.

14

223-375

CONNECTOR - electrical, plastic

6шт.

15

L70872

SWITCH

- beacon and defroster

1-2шт.

16

F43510

BREAKER

CIRCUIT BREAKER - 10 amp

1шт.

16a

F43509

BREAKER

CIRCUIT BREAKER - 6 amp

1шт.

17

L71009

ELECTRICAL WIRE

WIRE - jumper

1шт.

18

F43626

ELECTRICAL WIRE

WIRE - power to defroster, if used

1шт.

19

F43625

RESISTOR

- defroster, if used

1шт.

20

D72847

HOUSING

- terminal

6шт.

21

L73646

SWITCH

- air conditioning

1шт.

22

A42624

ELECTRICAL WIRE

WIRE -, Serial Range: blower-switch

1шт.

23

F43518

HARNESS

WIRE - jumper, wiper, if used

1шт.

24

D71507

HARNESS

- before cab SN 27750

1шт.

24

D76954

HARNESS

- cab SN 27750 - SN 52649

1шт.

24a

N8635

HARNESS

- cab SN 52650 and after

1шт.

25

L104586

REMOTE CONTROL

CABLE ASSEMBLY - heater control

1шт.

26

L111755

COVER

- dome lamp and defroster, cab SN 24051 and after

1шт.

Ref. 26 - (Brown)

1шт.

26

F43543

COVER

- dome lamp defroster, before cab SN 24051

1шт.

Ref. 26A - (Black)

1шт.

27

187-1906

SELF-TAP SCREW,Cross Oval Hd, #10 x 1"

SCREW - self-tapping, no. 10 - 16 NC x 1"

4шт.

28

187-1051

SCREW - self-tapping, no. 8 - 32 NC x 1/2"

4шт.

28a

F43576

WASHER

- special

4шт.

F89772

LAMP

ASSEMBLY - dome, Includes: Ref. 29 - 31

1шт.

29

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

29a

173-297

SCREW,Phil Rnd Hd, #8 - 32 x 1/4"

- no. 8 - 32 NC x 1/4"

2шт.

30

D71459

LAMP

BULB - 24V, dome, no. 1591

1шт.

31

D71458

LAMP

LENS - dome lamp

1шт.

32

F43504

SWITCH

- dome lamp, F43543 cover, see Fig. 4-144 Ref. 26

1шт.

32a

D75876

IGNITION SWITCH

SWITCH - dome lamp, L104968 cover, see Figure 4-144 Ref. 26

1шт.

32b

187-1392

SCREW

- no. 6 - 32 NC x 3/4"

2шт.

33

D72842

ELECTRICAL WIRE

WIRE - ground

1шт.

34

REF

INSTRUCTION

BLOWER - cab, see Fig. 4-188 for correct assembly and components

1шт.

35

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

If used Hex, 1/4"-20 x 3/4", G5, Full Thd

8шт.

35a

22-48

SELF-TAP SCREW,Hex, 1/4" - 20 x 1/2", Gr 2

SCREW - self-tapping, 1/4" - 20 NC x 1/2", if used

8шт.

36

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Used with 113-3 bolt, Ref. 35 1/4"

8шт.

37

195-102

WASHER,1/4"

- flat, , used with 113-3 bolt, Ref. 35 1/4"

8шт.

38

129-141

JAM NUT,Jam, 1/4"-20, G5

Used with 113-3 bolt, Ref. 35 Jam, 1/4"-20, G5

8шт.

39

L78577

WASHER

- special

4-1шт.

40

L74686

BRACKET

- flood lamp, right-hand

1шт.

41

L74687

BRACKET

- flood lamp, left-hand

1шт.

42

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

43

92-6

LOCK WASHER,3/8"

4шт.

44

D45994

GROMMET,3/16" ID x 5/16" Groove Dia

- wire

2шт.

45

REF

INSTRUCTION

FLOOD LAMP - see Figure 4-156 for correct assembly and components

2шт.

46

182-46

SCREW,Sl Pan Hd, #6 - 32 x 1/2"

- pan head, no. 6 - 32 NC x 1/2"

2шт.

47

129-5

NUT,#6-32

2шт.

48

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

2шт.

49

195-7

WASHER,#6

- flat, no. 6

2шт.

50

L100659

CLIP

- wire

1шт.

51

193-48

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

52

S107089

CONNECTOR, ELEC

CONNECTOR - wire

1шт.
