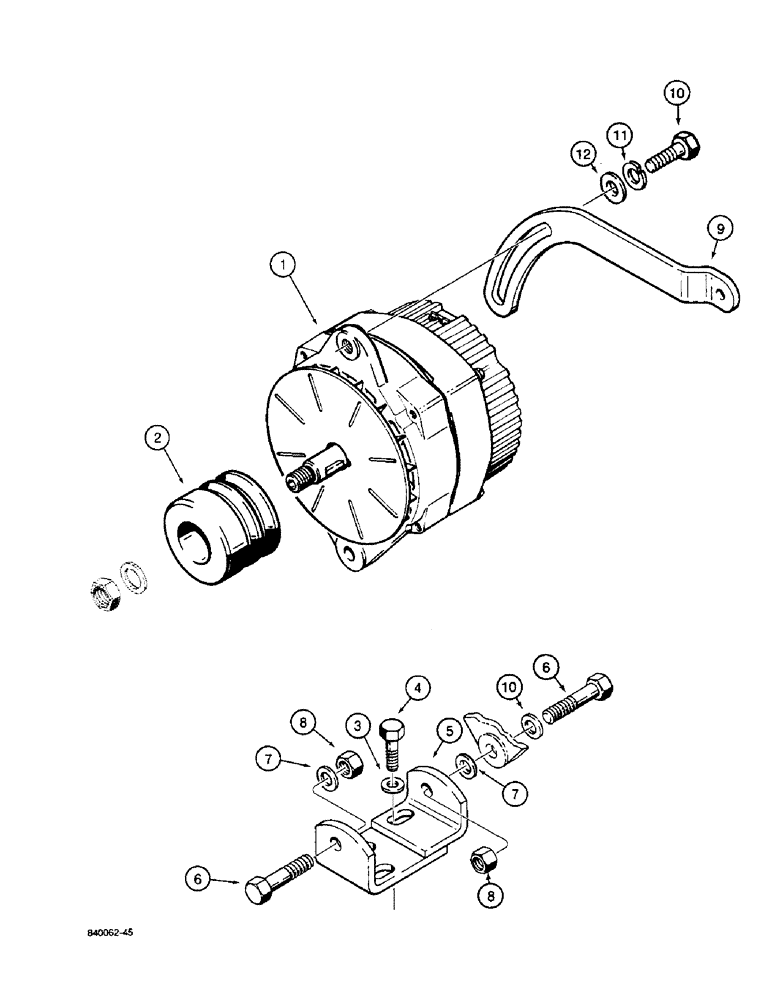

Запчасти Case W36 (4-142) - 65 AMP ALTERNATOR AND MOUNTING PARTS (04) - ELECTRICAL SYSTEMS

1

L114250

ALTERNATOR - 24V, 65 amp, Delco-Remy no. 1105474, parts list Fig. 3-88

1шт.

1

L72955

ALTERNATOR

- 24V, 65 amp, Delco-Remy 1100077, parts list Fig. 3-84

1шт.

1

197231A1R

REMAN-ALTERNATOR

W36 CASE WHEEL LOADER (PRIOR TO S/N 17754000), Reman for New PN L72955

1шт.

1

197231A1C

CORE-ALTERNATOR

Return Number

1шт.

1

A49652

ALTERNATOR

- 24V, 65 amp, repair, parts list Fig. 3-88

1шт.

1

197231A1R

REMAN-ALTERNATOR

W36 CASE WHEEL LOADER (PRIOR TO S/N 17754000), ALTERNATOR ASSEMBLY, Reman for New PN A49652

1шт.

1

197231A1C

CORE-ALTERNATOR

Return Number

1шт.

2

S219716

PULLEY

- alternator

1шт.

3

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

4

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

5

L107467

BRACKET

- mount

1шт.

6

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

7

R24323

WASHER

- flat, 1/2"

2шт.

8

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

2шт.

9

L107104

STRAP

- adjusting

1шт.

10

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

11

92-8

LOCK WASHER,1/2"

1шт.

12

95-8

WASHER,1/2"

flat 1/2"

1шт.
