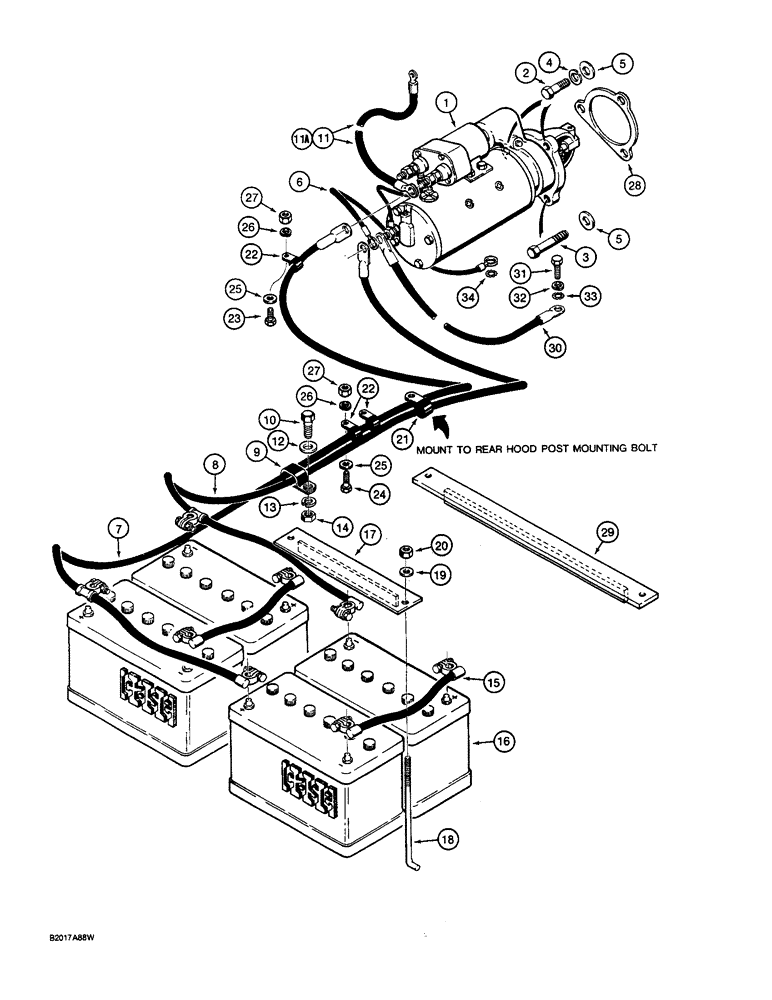

Запчасти Case W36 (4-138) - ELECTRICAL SYSTEM, STARTER AND BATTERY (04) - ELECTRICAL SYSTEMS

1

R26137

STARTER MOTOR

STARTER - Delco no. 1113998, parts list Figs. 3-90 and 3-92

1шт.

1

R45968

STARTER MOTOR

STARTER - Delco no. 1114872, parts list Figs. 3-94 and 3-96

1шт.

1

L118276

STARTING MOTOR

STARTER - Delco no. 199797, parts list Figs. 3-98 and 4-100

1шт.

1

87454648

REMAN-STARTER

Remanufactured STARTER, For N.A. Only

1шт.

1

87454649

CORE-STARTER

Return Number, STARTER, For N.A. Only

1шт.

2

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

BOLT, Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

3

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

BOLT, Hex, 1/2"-13 x 3 1/4", G5

1шт.

4

92-8

LOCK WASHER,1/2"

LOCK WASHER, , if used 1/2"

3шт.

5

R24323

WASHER

WASHER - flat, 1/2"

3шт.

6

L115112

CABLE

WIRE - ground

1шт.

7

L116161

CABLE

CABLE -, Serial Range: battery-starter

1шт.

8

L116162

CABLE

CABLE - battery ground

1шт.

9

L71188

CLAMP,15.75mm ID, Coated, 13.46mm Bolt Hole, P Type

CLAMP - battery cable

1-2шт.

10

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

BOLT, Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

11

L107050

CABLE

CABLE - starter to solenoid, 18" (457 MM) long, if used

1шт.

11a

A47895

ELECTRICAL WIRE

WIRE CABLE - starter to solenoid, 9-1/4" (235 MM) long, if used

1шт.

12

195-33

WASHER,1/2"

WASHER - flat, 1/2"

1шт.

13

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

1шт.

14

25-108

NUT,1/2"-13, G5

NUT - hex, 1/2" - 13 NC

1шт.

15

L114087

CABLE

CABLE -, Serial Range: battery-battery

2шт.

16

BHC30

BATTERY, DRY

BATTERY DRY BATTERY - 12 volt

4шт.

17

L104897

PLATE

PLATE - hold down, if used

2шт.

18

T31481

SCREW

BOLT - special

2-4шт.

19

195-103

WASHER,5/16"

WASHER - flat, 5/16"

2-4шт.

20

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

2-4шт.

21

51200329

CLIP

CLAMP - battery cable, if used

1шт.

22

49838

CLAMP

CLAMP - battery cable, if used

2-3шт.

23

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, , If used Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

24

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, , If used Hex, 3/8"-16 x 1", G5, Full Thd

1-2шт.

25

95-6

WASHER,3/8"

WASHER - flat, , if used 3/8"

2-3шт.

26

92-6

LOCK WASHER,3/8"

LOCK WASHER, , if used 3/8"

2-3шт.

27

25-106

NUT,3/8"-16, G5

NUT - hex, 3/8" - 16 NC, if used

2-3шт.

28

A27933

GASKET

GASKET - starter

1шт.

29

L104897

PLATE

PLATE - hold down, if used

1шт.

30

L116326

CABLE

CABLE - ground, starter to engine, 11" (279 MM) long

1шт.

31

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

32

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

33

193-72

LOCK WASHER

WASHER - external-internal tooth lock, 3/8"

1шт.
