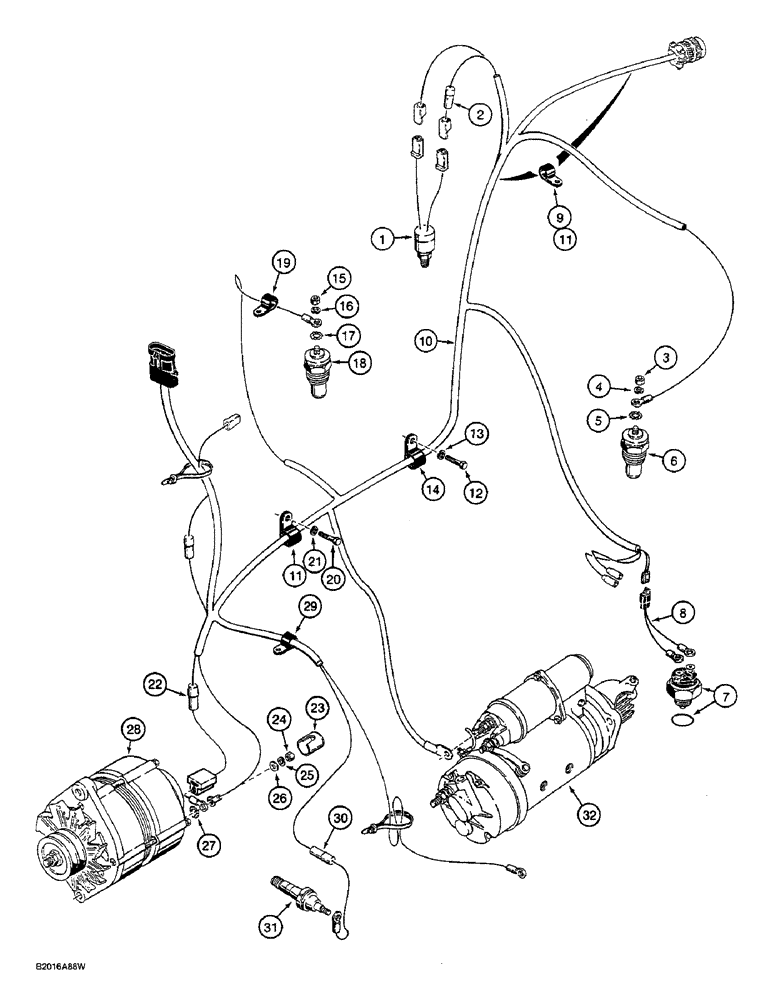

Запчасти Case W36 (4-136) - ELECTRICAL SYSTEM, ENGINE AND TRANSMISSION HARNESS, PIN 9156438 AND AFTER (04) - ELECTRICAL SYSTEMS

1

L113841

SWITCH

SWITCH - clutch pressure

1шт.

2

L73576

RESISTOR

RESISTOR - 40 ohm

1шт.

3

129-37

NUT,#10-32

NUT, #10-32

1шт.

4

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

5

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

1шт.

6

L56217

UNIT

SENDER - temperature, converter

1шт.

7

D78316

SWITCH

SWITCH - neutral start, includes O-ring

1шт.

8

L115041

CABLE

WIRE - switch, neutral start

1шт.

9

49845

CLAMP

CLAMP - harness, to transmission converter housing

1шт.

10

L118324

HARNESS

HARNESS - engine and transmission, Includes: Ref. 11

1шт.

11

49845

CLAMP

CLAMP - harness

2шт.

12

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

BOLT, Hex, 5/16"-18 x 1/2", G5, Full Thd

1шт.

13

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

14

49852

PTO SHAFT

- harness

1шт.

15

129-37

NUT,#10-32

NUT, #10-32

1шт.

16

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

17

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

1шт.

18

L56217

UNIT

SENDER - engine water pressure

1шт.

19

51200321

CLAMP

CLAMP - harness, to engine valve cover

1шт.

20

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

21

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

22

L73576

RESISTOR

RESISTOR - 40 ohm

1шт.

23

L106774

CAP

CAP - dust

1шт.

24

825-1106

NUT,Hex, M6, Cl 8

NUT - hex, 6 mm - 1, plated

1шт.

25

892-1106

LOCK WASHER,M6

LOCK WASHER, , plated M6

1шт.

26

195-516

WASHER,#12

WASHER - flat, no. 12, plated

1шт.

27

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - internal-external tooth lock, 1/4", plated

1шт.

28

A186124

ALTERNATOR

ALTERNATOR - 24V, 40 amp, Bosch no. 120402296, type K1-28V 3/45A, see Fig. 4-140 for mounting parts, see Fig. 3-76 for service parts list

1шт.

28

AR186124

REMAN-ALTERNATOR

ALTERNATOR - 24V, 45A

1шт.

28

AC186124

CORE-ALTERNATOR

Return Number

1шт.

29

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

CLAMP - harness to timing gear cover

1шт.

30

L73576

RESISTOR

RESISTOR - 40 ohm

1шт.

31

A66737

SWITCH, PRESSURE

PRESSURE SWITCH SWITCH - engine oil pressure

1шт.

32

L118276

STARTING MOTOR

STARTER ASSEMBLY - engine, 24 volt, Delco no. 199797, parts list Figs. 3-98 and 4-100

1шт.

32

87454649

CORE-STARTER

Return Number, STARTER, For N.A. Only

1шт.
