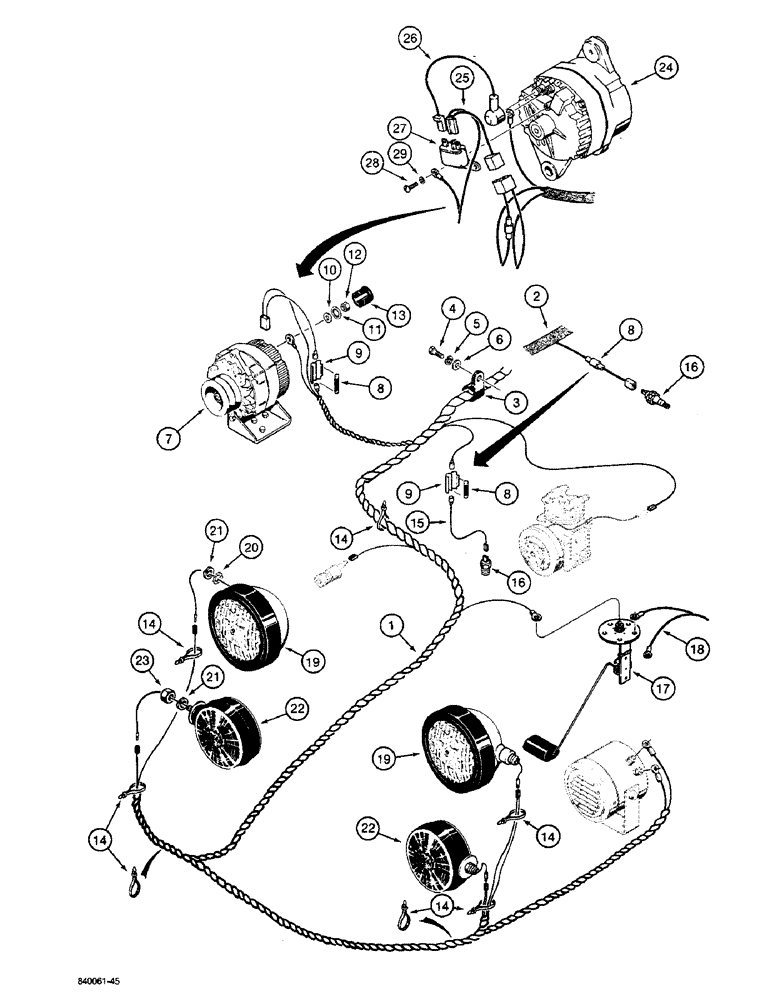

Запчасти Case W36 (4-132) - ELECTRICAL SYSTEM, REAR HARNESS TO ALTERNATOR AND LAMPS PRIOR TO PIN 91564380 (04) - ELECTRICAL SYSTEMS

1

L106910

WIRE HARNESS

HARNESS - rear, used with backup alarm switch with screw type terminals, no longer available, order L110044 harness and L36238 kit below

1шт.

2

L110044

HARNESS

- rear, used with backup alarm switch with blade type terminals to 9156409

1шт.

2

L114535

HARNESS

- rear, P.I.N. 9156409 - 9156437, Includes: Ref. 2A

1шт.

2a

223-4

FUSE,4 Amp, Type 3AG

- 4 amp, 3AG, not shown, includes in above harnesses

1шт.

3

49771

CLAMP

- harness

1шт.

4

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

5

92-6

LOCK WASHER,3/8"

1шт.

6

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

7

REF

INSTRUCTION

ALTERNATOR - 40 amp, see Fig. 4-140 for related parts, see Ref. 24 for 65 amp alternator

1шт.

8

L73576

RESISTOR

- 40 ohm

2шт.

9

L73574

COVER

- resistor, used with L106910 harness

2шт.

10

195-516

WASHER,#12

- flat, no. 12

1шт.

11

193-27

WASHER - internal tooth lock, no. 12, if used Int Tooth, #12

1шт.

11

892-1106

LOCK WASHER,M6

if used M6

1шт.

12

225-14112

NUT,#12-24

- hex, no. 12 - 24 NC, if used

1шт.

12

825-1106

NUT,Hex, M6, Cl 8

- hex, 6 mm x 1, if used

1шт.

13

L106774

CAP

- 40 amp alternator

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

15

L74492

ELECTRICAL WIRE

WIRE - engine oil pressure sender, if used

1шт.

16

A66737

SWITCH, PRESSURE

SENDER - engine oil pressure

1шт.

17

L118306

TRANSMITTER

SENDER - fuel level

1шт.

18

L114608

HARNESS

WIRE - ground, fuel level sender

1шт.

19

REF

INSTRUCTION

LAMP - flood, see Fig. 4-156 for correct assembly and components

2шт.

20

193-48

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

21

92-8

LOCK WASHER,1/2"

4шт.

22

L59897

LAMP

- stop and tail, parts list Fig. 4-160

2шт.

23

25-118

NUT,1/2"-20, G5

- hex, 1/2" - 20 NF

2шт.

24

REF

INSTRUCTION

ALTERNATOR - 65 amp, see Fig. 4-142 for related parts, see Ref. 7 for 40 amp alternator

1шт.

25

L72960

ELECTRICAL WIRE

WIRE -, Serial Range: harness-relay

1шт.

26

L72959

ELECTRICAL WIRE

WIRE -, Serial Range: alternator-relay

1шт.

27

L73433

RELAY

- alternator

1шт.

28

71-510

SCREW - round head, slotted, 5/16" - 18 NC x 5/8"

1шт.

29

92-5

LOCK WASHER,5/16"

1шт.

L36238

KIT

- electrical, terminals to adapt, Serial Range: harness-switches

1шт.
