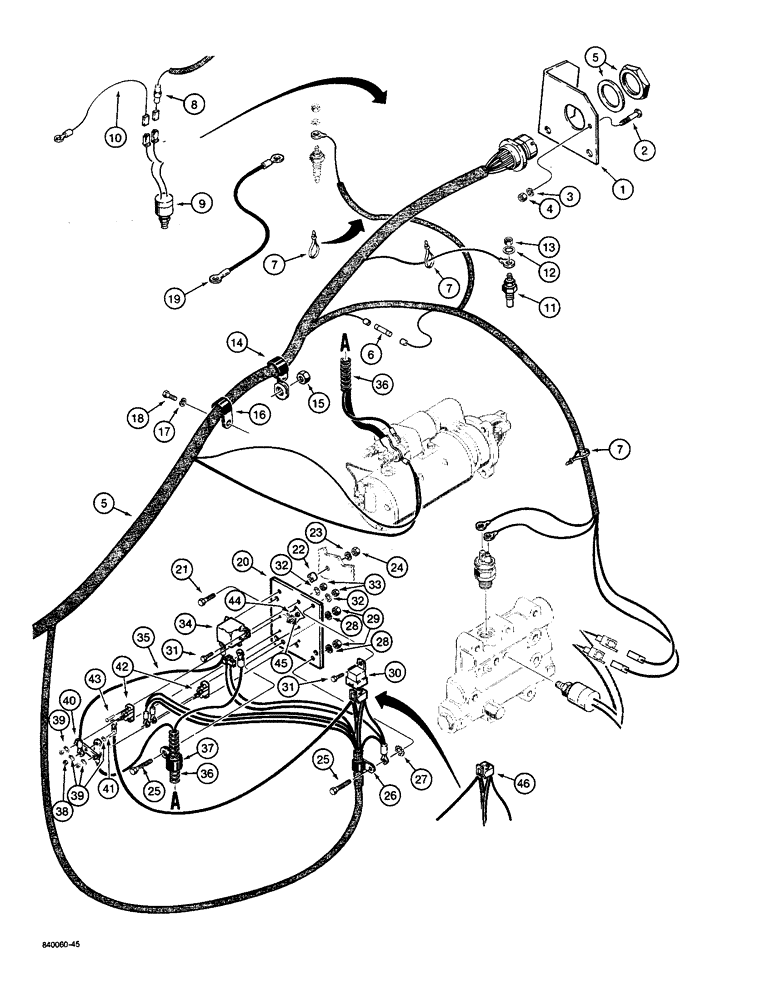

Запчасти Case W36 (4-130) - ELECTRICAL SYSTEM,REAR HARNESS TO SWITCHES AND STARTER,USED ON TRACTORS WITH PLASTIC RELAYS AND (04) - ELECTRICAL SYSTEMS

1

L112997

BRACKET

- harness

1шт.

2

182-46

SCREW,Sl Pan Hd, #6 - 32 x 1/2"

- pan head, no. 6 - 32 NC x 1/2"

1шт.

3

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

1шт.

4

129-5

NUT,#6-32

1шт.

5

L114535

HARNESS

- rear, used with plastic relays and circuit breakers, Includes: Ref. 6

1шт.

6

223-4

FUSE,4 Amp, Type 3AG

- 4 amp, 3AG

1шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

8

L73576

RESISTOR

- 40 ohm

1шт.

9

L113841

SWITCH

- clutch pressure, has blade type terminals

1шт.

10

L60678

ASSEMBLY

WIRE - ground

1шт.

11

L56217

UNIT

SENDER - torque converter oil temperature

1шт.

12

193-26

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

2шт.

13

129-37

NUT,#10-32

2шт.

14

L100108

CLAMP

- harness to flywheel housing

1шт.

15

25-148

JAM NUT,Jam, 1/2"-13, G5

JAM NUT - hex, 1/2"-13 NC

1шт.

16

49771

CLAMP

- harness

1шт.

17

92-5

LOCK WASHER,5/16"

1шт.

18

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

19

L106909

ELECTRICAL WIRE

WIRE - hydraulic filter

2шт.

20

L115657

PLATE

- relay mounting

1шт.

21

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

2шт.

22

L78175

HUB

SPACER - bolt

2шт.

23

92-6

LOCK WASHER,3/8"

2шт.

24

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

25

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

26

49885

CLAMP

- harness

1шт.

27

193-45

WASHER,Ext-Int Tooth, 5/16"

- external-internal tooth lock, 5/16"

1шт.

28

92-5

LOCK WASHER,5/16"

2шт.

29

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

30

L118429

RELAY

- cab

1шт.

31

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

3шт.

32

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - external-internal tooth lock, 1/4"

3шт.

33

25-104

NUT,1/4"-20, G5

3шт.

34

L115883

RELAY

- starter

1шт.

35

L114058

HARNESS

WIRE - jumper

1шт.

36

L114132

CABLE

-, Serial Range: starter-relay

1шт.

37

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- cable

1шт.

38

182-524

SCREW,Cross Pan Hd, #10 - 24 x 5/8"

- pan head slotted, no. 10 - 24 NC x 5/8"

1шт.

39

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

4шт.

40

L114028

BAR

- connector

1шт.

41

129-17

NUT,Hex, #10 - 24

NUT - hex, no. 10 - 24 NC

1шт.

42

L114199

BREAKER

CIRCUIT BREAKER - 30 amp

2шт.

43

182-127

SCREW,Sl Pan Hd, #10 - 24 x 3/4"

- pan head slotted, no. 10 - 24 NC x 3/4"

4шт.

44

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

6шт.

45

129-17

NUT,Hex, #10 - 24

NUT - hex, no. 10 - 24 NC

4шт.

46

L114316

SOCKET

- relay, used with L36275 kit, see Fig. 4-126

1шт.

L114612

COVER

plastic, goes over the Ref. 30 and 34 relays, Figure 4-124

1шт.
