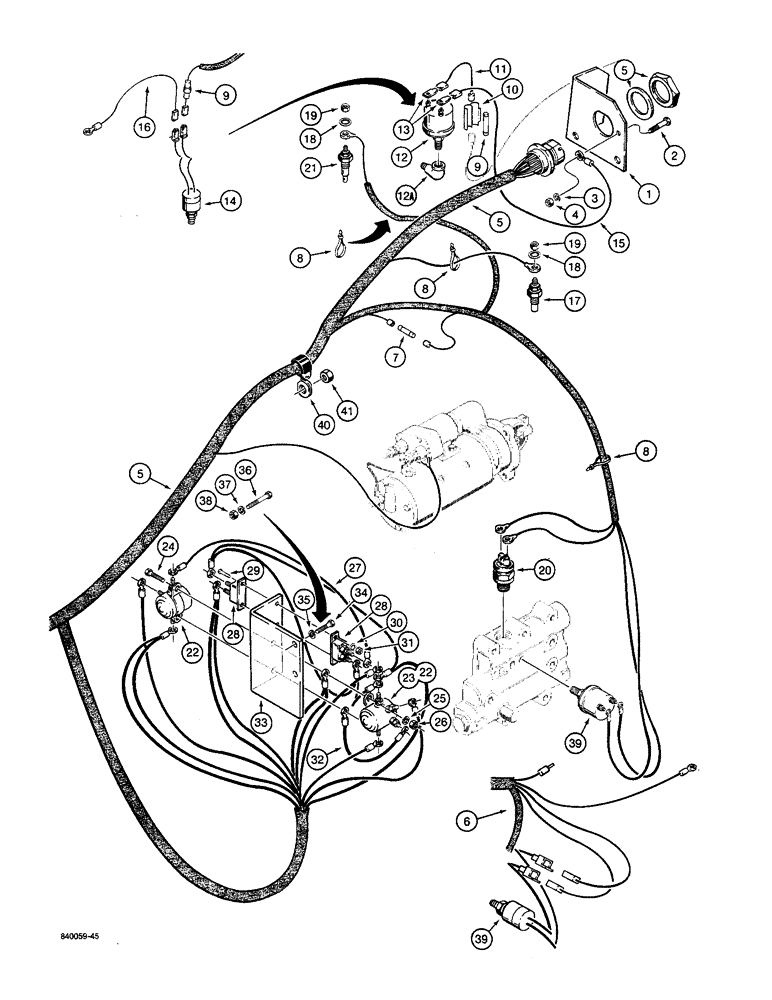

Запчасти Case W36 (4-126) - ELECTRICAL SYSTEM, REAR HARNESS TO SWITCHES AND STARTER (04) - ELECTRICAL SYSTEMS

1

L77497

BRACKET

- harness

1шт.

2

182-46

SCREW,Sl Pan Hd, #6 - 32 x 1/2"

- pan head, no. 6 - 32 NC x 1/2"

1шт.

3

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

1шт.

4

129-5

NUT,#6-32

1шт.

5

L106910

WIRE HARNESS

HARNESS - rear, includes Ref. 7 below, used with backup alarm switch with screw type terminals, no longer available, order L110044 harness and L36238 kit below

1шт.

6

L110044

HARNESS

- rear, used with backup alarm switch with blade type terminals and with metal relays and circuit breakers, Includes: Ref. 7

1шт.

7

223-4

FUSE,4 Amp, Type 3AG

- 4 amp, 3AG

1шт.

8

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

9

L73576

RESISTOR

- 40 ohm

1шт.

10

L73574

COVER

- resistor, used with L106910 harness

1шт.

11

L76861

ELECTRICAL WIRE

WIRE - clutch pressure switch, used with L106910 harness

1шт.

12

L76779

IGNITION SWITCH

SWITCH - clutch pressure, has screw type terminals, no longer available, order L113841 switch and L36238 kit below

1шт.

12a

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street, switch, if used 90º, 1/8"-27, NPT

1шт.

13

L59682

TERMINAL CONNECTOR

TERMINAL - straight, used with L76779 switch

2шт.

14

L113841

SWITCH

- clutch pressure, has blade type terminals

1шт.

15

L76832

ELECTRICAL WIRE

WIRE - ground, used with L76779 switch

1шт.

16

L60678

ASSEMBLY

WIRE - ground, used with L113841 switch

1шт.

17

L56217

UNIT

SENDER - torque converter oil temperature

1шт.

18

193-26

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

2шт.

19

129-37

NUT,#10-32

2шт.

20

D78316

SWITCH

- neutral start

1шт.

21

L56217

UNIT

SENDER - water temperature

1шт.

L36238

KIT

- electrical, terminals to adapt, Serial Range: harness-switches

1шт.

L36275

KIT

- electrical modification, available for tractors with metal relays and circuit breakers. The kit includes Refs. 30, 39, 41, 42 and 46 from Fig. 4-130 and items 21-25 from Fig. 9-508 along with spiral wrap and additional hardware not shown

1шт.

USED ON TRACTORS WITH METAL RELAYS AND CIRCUIT BREAKERS PRIOR TO P.I.N. 9156438.

1шт.

22

S240588

SOLENOID SWITCH

SOLENOID - 24V, used, Serial Range: -9139884

1-2шт.

23

L109871

SOLENOID

- 24V, used with A31060 ground wire, used, Start Serial: 9139884

1шт.

24

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

25

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

26

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

27

L71872

ELECTRICAL WIRE

WIRE - solenoid to circuit breaker

1шт.

28

L104330

BREAKER

CIRCUIT BREAKER - 30 amp

2шт.

29

182-86

SCREW,Slotted Pan Hd, #8-32 x 1/2"

- pan head, no. 8 - 32 NC x 1/2"

2шт.

30

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER, LOCK, Int Tooth, #8

2шт.

31

129-6

NUT,#8-32

2шт.

32

A31060

ELECTRICAL WIRE

WIRE - solenoid to ground, if used

1шт.

33

L76702

BRACKET

- solenoid mount

1шт.

34

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Used when L76702 bracket is mounted to engine Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

35

92-5

LOCK WASHER,5/16"

used when L76702 bracket is mounted to engine 5/16"

2шт.

36

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Used when L76702 bracket is mounted to center post Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

37

92-6

LOCK WASHER,3/8"

used when L76702 bracket is mounted to center post 3/8"

2шт.

38

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, used when L76702 bracket is mounted to center post

2шт.

39

REF

INSTRUCTION

SWITCH - backup alarm, see Fig. 4-192

1шт.

40

L100108

CLAMP

-, Serial Range: harness-flywheel

1шт.

41

25-148

JAM NUT,Jam, 1/2"-13, G5

JAM NUT - hex, 1/2"-13 NC

1шт.

L36275

KIT

- electrical modification, available for tractors with metal relays and circuit breakers. The kit includes Refs. 30, 39, 41, 42, and 46 from Fig. 4-130 and items 21-25 from Fig. 9-508 along with spiral wrap and additional hardware not shown

1шт.
