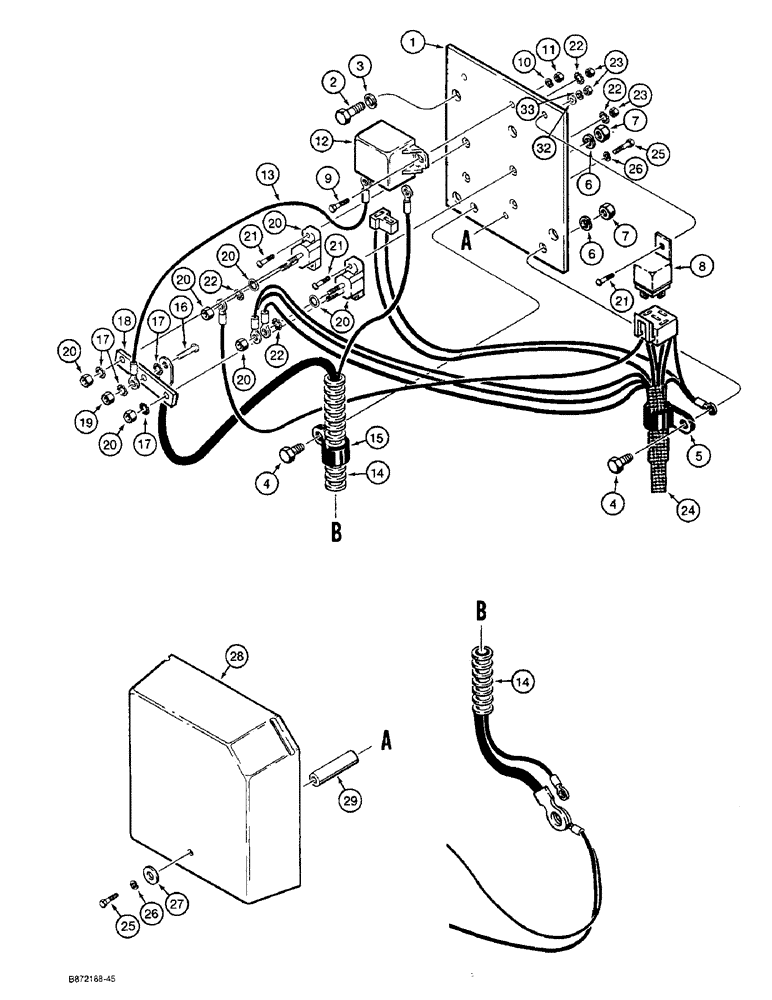

Запчасти Case W36 (4-124) - MAIN HARNESS TO RELAY PANEL, P.I.N. 9156438 AND AFTER (04) - ELECTRICAL SYSTEMS

1

L115657

PLATE

PANEL - relay mounting

1шт.

2

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

4

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

5

49885

CLAMP

- harness

1шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

7

9635082

NUT,5/16" - 18, Gr 5

2шт.

8

L118429

RELAY

- cab

1шт.

9

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

10

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

11

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

12

L115883

RELAY

- starter

1шт.

13

L114058

HARNESS

WIRE - jumper

1шт.

14

L114132

CABLE

-, Serial Range: starter-relay

1шт.

15

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- cable

1шт.

16

182-524

SCREW,Cross Pan Hd, #10 - 24 x 5/8"

- pan head slotted, no. 10 - 24 NC x 5/8", plated

1шт.

17

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

4шт.

18

L114028

BAR

- connector

1шт.

19

129-17

NUT,Hex, #10 - 24

NUT - hex, no. 10 - 24 NC, plated

1шт.

20

L114199

BREAKER

CIRCUIT BREAKER - 30 amp, includes hardware

2шт.

21

182-561

SCREW,Slotted Pan Hd, #10-24 x 3/4"

- pan head slotted, no. 10 - 24 NC x 3/4"

5шт.

22

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

6шт.

23

129-17

NUT,Hex, #10 - 24

NUT - hex, no. 10 - 24 NC, plated

5шт.

24

REF

INSTRUCTION

HARNESS - main, see Fig. 4-122 for complete harness

1шт.

25

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

26

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

27

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

1шт.

28

L114612

COVER

- relay panel

1шт.

29

L114195

SPACER

- relay cover

1шт.

30

B17400

CLEANER

- electrical, 16 oz. spray, not shown

1шт.

31

M20861

ADHESIVE

SEAL - electrical, 16 oz. spray, not shown

1шт.

32

195-101

WASHER,3/16"

- flat, , plated 3/16"

1шт.

33

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.
