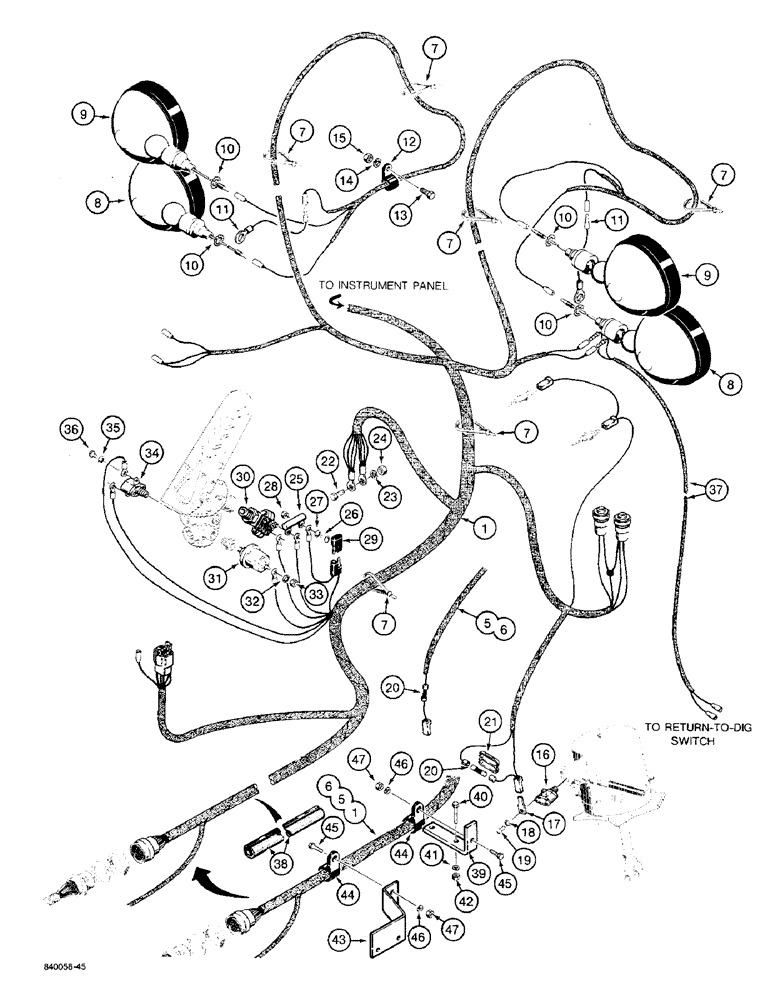

Запчасти Case W36 (4-116) - ELECTRICAL SYSTEM, FRONT HARNESS - LAMPS AND SWITCHES, PRIOR TO PIN 9156438 (04) - ELECTRICAL SYSTEMS

1

L77723

HARNESS

- front, no longer available, order L79669 and L36185 key switch kit, parts list Fig. 4-106, includes Refs. 2 and 3 below, Serial Range: -9131017

1шт.

1

L79669

HARNESS

- front, used on P.I.N. 9131017 - 9131129, includes Refs. 2 and 3 below

1шт.

1

L79965

WIRE HARNESS

HARNESS - front, used on P.I.N. 9131129 - 9135097, 9135102, and 9135119 - 9135121, includes Refs. 2 and 3 below, no longer available, order L103668 kit below

1шт.

1

L103523

HARNESS

- front, used on P.I.N. 9135098 - 9135101, 9135103 - 9135118, 9135122 - 9139918, and 9139920 - 9139925, includes Refs. 2 and 3 below

1шт.

2

L113617

RESISTOR

- 15 ohm, used with all harnesses, not shown, see Fig. 4-112

1шт.

3

L57178

RESISTOR

- 39 ohm, used with Ref. 1 harnesses, not shown, see Fig. 4-112

1шт.

4

RESERVED

1шт.

5

L106870

WIRE HARNESS

HARNESS - front, used on P.I.N. 9139919 and 9139926 - 9153006, no longer available, order L113981 front harness and L36238 switch kit

1шт.

6

L113981

HARNESS

- front, used, Start Serial: 9153007

1шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

8

REF

INSTRUCTION

LAMP - flood, see Figure 4-156 for correct assembly and components

2шт.

9

REF

INSTRUCTION

LAMP - optional, see Figure 4-156 for correct assembly and components

1шт.

10

193-48

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2-4шт.

11

L71410

ELECTRICAL WIRE

WIRE - ground, used, Serial Range: -9131129

2шт.

12

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- wire

4шт.

13

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

14

92-6

LOCK WASHER,3/8"

2шт.

15

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

16

L70507

SWITCH

- air parking brake

1шт.

17

L59682

TERMINAL CONNECTOR

TERMINAL - straight

1шт.

18

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER, LOCK, Int Tooth, #8

1шт.

19

182-86

SCREW,Slotted Pan Hd, #8-32 x 1/2"

- pan head, no. 8 - 32 NC x 1/2"

1шт.

20

L73576

RESISTOR

- 40 ohms

1шт.

21

L73574

COVER

- resistor, if used

1шт.

22

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

23

92-5

LOCK WASHER,5/16"

1шт.

24

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

1шт.

L36238

KIT

- electrical, terminals to adapt, Serial Range: harness-switches

1шт.

L103668

CABLE

KIT - harness, see Fig. 4-112 for components

1шт.

25

L59040

RESISTOR

- 5 ohm

1шт.

26

182-86

SCREW,Slotted Pan Hd, #8-32 x 1/2"

- pan head, no. 8 - 32 NC x 1/2"

1шт.

27

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER, LOCK, Int Tooth, #8

1шт.

28

129-6

NUT,#8-32

1шт.

29

L71879

DIODE ELEMENT,400V, 3A

DIODE - stop lamp switch

1шт.

30

L48128

VALVE

SWITCH - stop lamp and double check valve, parts list Fig. 7-364

1шт.

31

L109945

TRANSMITTER

SENDER - air pressure

1шт.

32

193-26

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

1шт.

33

129-37

NUT,#10-32

1шт.

34

L48480

SWITCH

- air pressure

1шт.

35

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER, LOCK, Int Tooth, #8

2шт.

36

182-86

SCREW,Slotted Pan Hd, #8-32 x 1/2"

- pan head, no. 8 - 32 NC x 1/2"

2шт.

37

L79859

HARNESS

- return-to-dig

1шт.

38

L77375

HOSE

- harness guard, if used

1шт.

39

L113990

BRACKET

- harness, front

1шт.

40

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

2шт.

41

92-6

LOCK WASHER,3/8"

2шт.

42

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

43

L113991

BRACKET

- harness, rear

1шт.

44

R14668

CLAMP

- wire

2шт.

45

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

46

92-5

LOCK WASHER,5/16"

2шт.

47

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.
