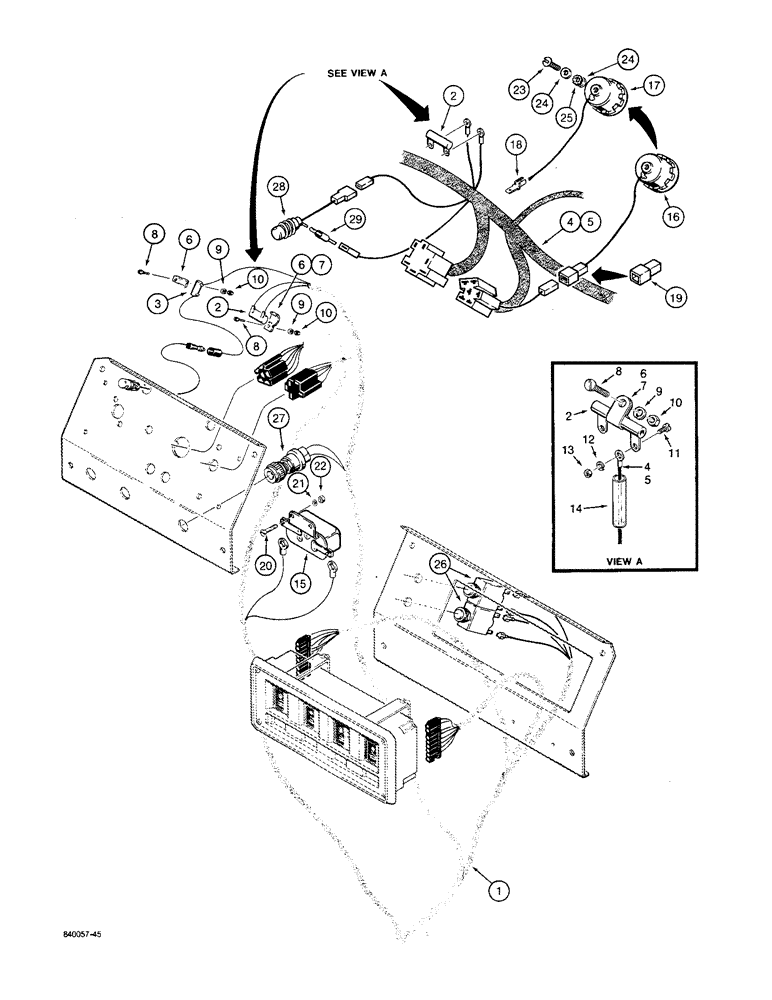

Запчасти Case W36 (4-112) - ELECTRICAL SYSTEM, FRONT HARNESS TO INSTRUMENT PANEL, PRIOR TO PIN 9156438 (04) - ELECTRICAL SYSTEMS

1

L77723

HARNESS

- front, no longer available, order L79669 harness and L36185 key switch kit, parts list Fig. 4-106, includes Refs. 2 and 3 below, Serial Range: -9131017

1шт.

1

L79669

HARNESS

- front, used on P.I.N. 9131017 - SN 9131129, includes Refs. 2 and 3 below

1шт.

1

L79965

WIRE HARNESS

HARNESS - front, used on P.I.N. 9131129 - SN 9135097, SN 9135102, and SN 9135119 - SN 9135121, includes Refs. 2 and 3 below, no longer available, order L103668 kit below

1шт.

1

L103523

HARNESS

- front, used on P.I.N. 9135098 - SN 9135101, SN 9135103 - SN 9135118, SN 9135122 - SN 9139918, and SN 9139920 - SN 9139925, includes Refs. 2 and 3 below

1шт.

Part of Harness Kit P/N L103668

1шт.

2

L113617

RESISTOR

- 15 ohm, used with all harnesses

1шт.

3

L57178

RESISTOR

- 39 ohm, used with Ref. 1 harnesses

1шт.

4

L106870

WIRE HARNESS

HARNESS - front, used on P.I.N. 9139919 and SN 9139926 - SN 9153006, no longer available, order L113981 front harness and L36238 switch kit

1шт.

5

L113981

HARNESS

- front, Start Serial: 9153007

1шт.

6

L73415

CLAMP

- resistor, if used

1-2шт.

7

L70217

CLAMP

- resistor, if used

1шт.

8

171-61

SCREW,Sl Flat Hd, #6 - 32 x 1/2"

- flat head, no. 6 - 32 NC x 1/2"

2шт.

9

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

1-2шт.

10

129-15

NUT,#6-32

1-2шт.

11

182-82

SCREW,Slotted Pan Hd, #8-32 x 1/4"

- pan head, no. 8 - 32 NC x 1/4"

2шт.

12

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

13

129-6

NUT,#8-32

2шт.

14

223-125

TUBE

SHRINK TUBING - resistor

2шт.

15

L15056

BUZZER

ALARM - warning, air pressure, order repair Ref. L103524 alarm - P.I.N. 9135098, SN 9135102, and SN 9135119 - SN 9135121

1шт.

16

L104033

ALARM

- warning, air pressure, includes terminal, used on tractor SN 9135099 - SN 9135101, SN 9135103 - SN 9135118, and SN 9135122 and after, no longer available, order items 17, 18, and 19

1шт.

17

L115252

BUZZER

ALARM - warning, air pressure, does not include terminal

1шт.

Part of Harness Kit P/N L103668

1шт.

18

223-179

FITTING

TERMINAL - male

1шт.

Part of Harness Kit P/N L103668

1шт.

19

223-166

CONNECTOR, ELEC

COVER - terminal female

1шт.

Part of Harness Kit P/N L103668

1шт.

20

182-202

SCREW,Sl Pan Hd, 1/4" - 20 x 1/2"

- pan head, 1/4" - 20 NC x 1/2", used with L15056 alarm

2шт.

21

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Used with L15056 alarm 1/4"

2шт.

22

25-104

NUT,1/4"-20, G5

Used with L15056 alarm 1/4"-20, G5

2шт.

23

182-84

SCREW,Slotted Pan Hd, #8-32 x 3/8"

- pan head, no. 8 x 3/8", used with center mounted alarm

1шт.

Part of Harness Kit P/N L103668

1шт.

24

195-10

WASHER,#8

2шт.

Part of Harness Kit P/N L103668

1шт.

25

193-5

LOCK WASHER,Ext Tooth, #8

WASHER - external tooth lock, no. 8

1шт.

Part of Harness Kit P/N L103668

1шт.

26

L59970

BREAKER

CIRCUIT BREAKER - 5 amp

2шт.

27

L72776

SWITCH

- cold start, parts list Fig. 4-194

1шт.

28

H371849

INDICATOR

LAMP - hydraulic filter warning

1шт.

29

L58497

RESISTOR

- 40 ohm

1шт.

L36238

KIT

- electrical, terminals to adapt harness to switches, see Ref. 4 above

1шт.

L103668

CABLE

KIT - harness, Includes: Ref. 1 P/N L103523, Ref. 17, 18, 19, 23, 24 and 25, and (1) 223-48 eyelet, not shown

1шт.
