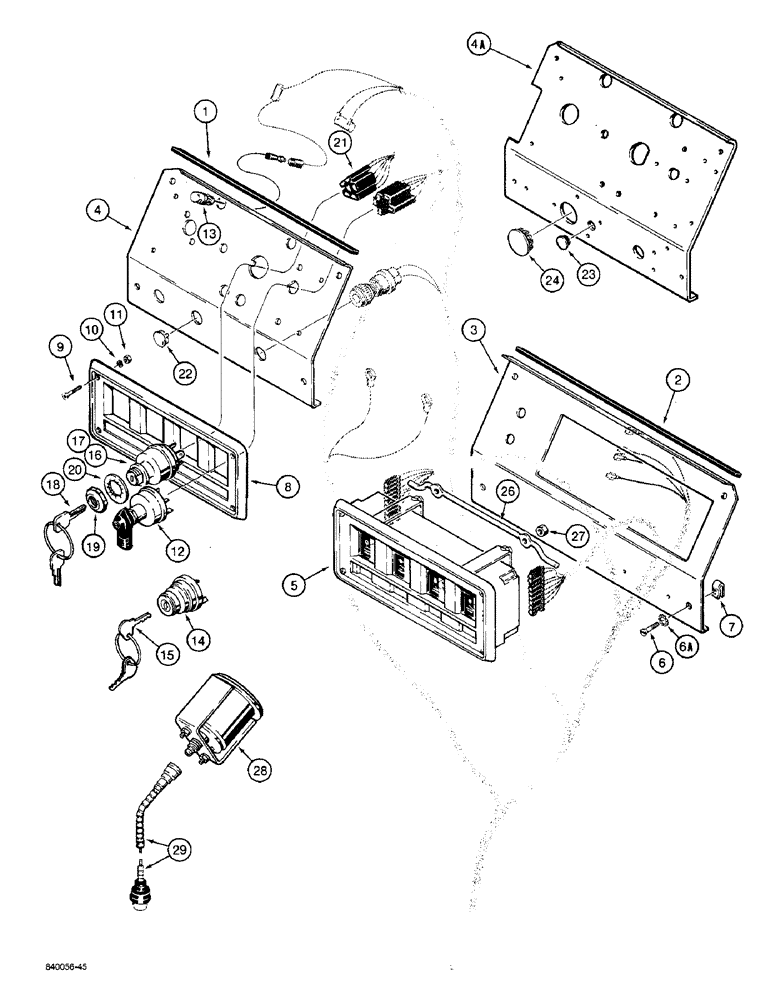

Запчасти Case W36 (4-106) - ELECTRICAL SYSTEM, INSTRUMENT PANELS AND TACHOMETER (04) - ELECTRICAL SYSTEMS

1

L57917

STRIP

- filler, left-hand, if used

1шт.

2

L57916

STRIP

- filler, right-hand, if used

1шт.

3

L106620

PANEL

INSTRUMENT PANEL - right-hand

1шт.

4

L104419

PANEL

INSTRUMENT PANEL - left-hand, used on tractor with transmission range control lever next to steering wheel

1шт.

4a

L105776

PANEL

INSTRUMENT PANEL - left-hand, used on tractors with transmission range control lever at left end of instrument panel

1шт.

5

L55650

CLUSTER

- instrument, parts list Fig. 4-110

1шт.

6

175-473

SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

- truss head, 1/4" - 20 NC x 3/4"

8шт.

6a

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

8шт.

7

131-630

SPRING NUT,Tinn, U, 1/4"-20

- clip

8шт.

8

L55774

PANEL

COVER - instrument, right-hand

1шт.

9

164-215

HEX SOC SCREW,#6 - 32 x 3/4", SST

SCREW - flat head, hex socket, no. 6 - 32 NC x 3/4", stainless

4шт.

10

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

4шт.

11

129-15

NUT,#6-32

4шт.

12

L55654

SWITCH

- lamp

1шт.

13

L105210

LIGHT

LAMP - instrument panel, parts list Fig. 4-156, if used

2шт.

14

L55655

SWITCH

- key, order L36185 switch kit, Includes: Ref. 15

1шт.

15

R30074

SET

KEY - set of two

1шт.

L36185

SWITCH

KIT - key switch, Includes: Ref. 16 - 21

1шт.

16

D134737

IGNITION SWITCH

KEY SWITCH ASSEMBLY - includes keys, Includes: Ref. 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

SWITCH - less keys

1шт.

18

A77313

SET OF 2 KEYS

KEY - set of two; metal without padding

1шт.

19

A77314

NUT

- hex

1шт.

20

193-37

LOCK WASHER,Int Tooth, 1"

WASHER, LOCK, Int Tooth, 1"

1шт.

21

L79667

CONNECTOR, ELEC

CONNECTOR - 6 pole electrical

1шт.

22

353-407

PLUG,Dome, .687" hole, Nylon

- 11/16"

1шт.

23

353-404

PLUG,Dome, .500" hole, Nylon

1шт.

24

353-422

PLUG,Dome, 1.250" hole, Nylon

1шт.

25

353-406

PLUG,Dome, .625" hole, Nylon

- 5/8", not shown, use when L105210 panel lamp is removed

2шт.

26

L100085

ROD

- cluster retaining

1шт.

27

129-27

NUT,Hex, #10 - 32

- hex, no. 10 - 32 NF

2шт.

28

L116255

TACHOMETER

GAUGE - tachometer and hourmeter

1шт.

29

A59691

CABLE

- tachometer

1шт.
