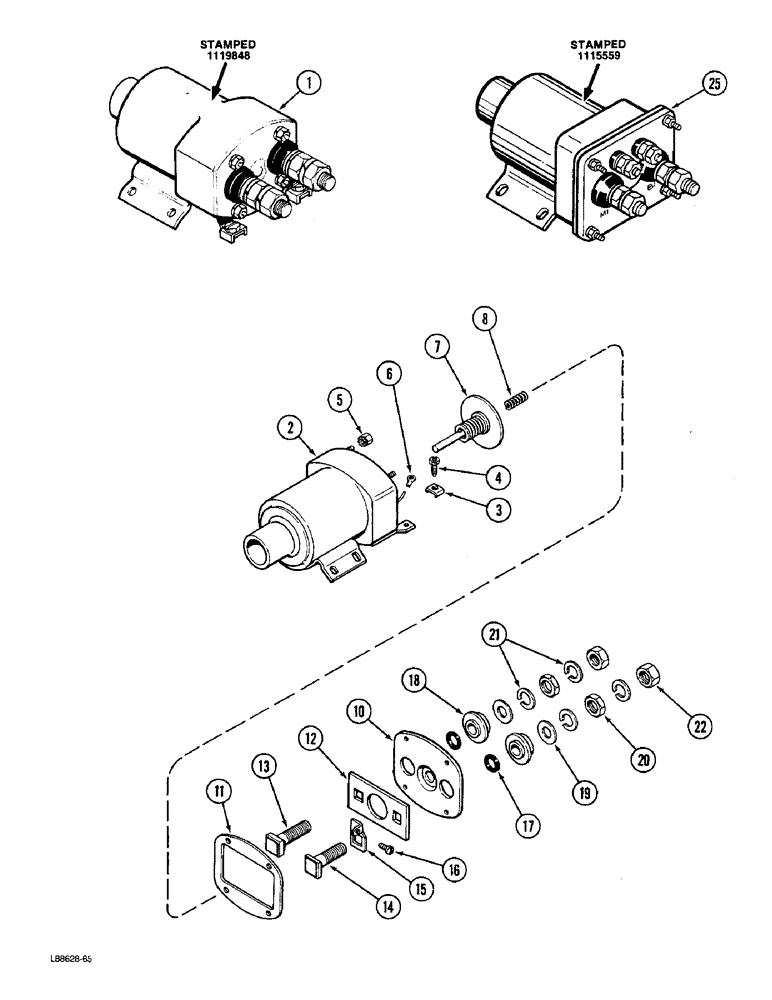

Запчасти Case W36 (4-102) - STARTER SOLENOID (04) - ELECTRICAL SYSTEMS

1

A42376

SWITCH

SOLENOID ASSEMBLY - starter, Delco-Remy no. 1119848-B (For service order A47899 ref. 25), Includes: Ref. 2 - 25

11шт.

2

NSS

NOT SOLD SEPARAT

CASE - solenoid (Reference no. A42414)

1шт.

3

A42407

CLAMP

CLIP - terminal

1шт.

4

D32502

SCREW,Hex, #10 - 32 x 3/8"

- terminal clip

1шт.

5

D32500

NUT

ASSEMBLY - plate to case studs

4шт.

6

A42408

ELECTRICAL WIRE

WIRE - ground

1шт.

7

D32498

CONTACT

DISC ASSEMBLY - contact (Order A47693)

1шт.

8

A42411

VALVE SPRING

SPRING - contact disc return

1шт.

A42412

PLATE

ASSEMBLY - solenoid, Includes: Ref. 10 - 25

1шт.

10

A42410

PLATE

- terminals and case cover

1шт.

11

A42260

GASKET

-, Serial Range: plate-case

1шт.

12

D32507

RUBBER INSULATOR

INSULATOR - plate

1шт.

13

A42413

STUD

- battery terminal, 1-21/32 inch thread length

1шт.

14

D32506

STUD

- starter terminal, 1-3/16 inch thread length

1шт.

15

A42406

SUPPORT

TERMINAL - coil lead (Order D29910)

1шт.

16

175-56

SCREW - coil lead, truss head, no. 6-32 x 3/16 inch Slotted Truss Hd, #6-32 x 3/16"

1шт.

17

D32510

BUSHING

- terminal platae insulators

2шт.

18

A43701

BUSHING

- terminal studs insulating

2шт.

19

D30004

WASHER

- terminal studs, insulation, 1/2 x 1-3/16 x 3/32 inch

2шт.

20

129-145

JAM NUT,Jam, 1/2"-13, G5

Terminal studs Jam, 1/2"-13, G5

2шт.

21

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Terminal studs 1/2"

4шт.

22

129-105

NUT,Hex, 1/2" - 13, Gr 5

Terminal studs 1/2"-13, G5

2шт.

25

A47899

SOLENOID SWITCH

SOLENOID ASSEMBLY - starter, Delco-Remy no. 1115559 (Serviced as complete assembly only)

1шт.
