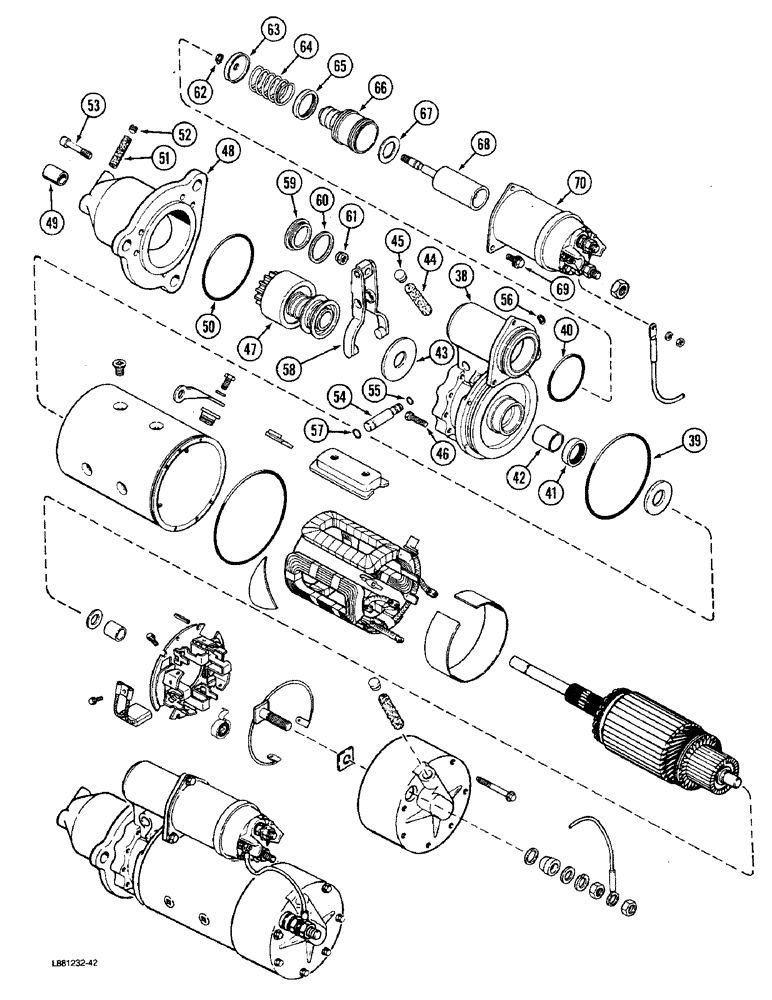

Запчасти Case W36 (4-100) - L118276 STARTER, DELCO - REMY (04) - ELECTRICAL SYSTEMS

L118276

STARTING MOTOR

STARTER ASSEMBLY - new, Includes: Ref. 38 - 70

1шт.

87454648

REMAN-STARTER

Remanufactured STARTER, For N.A. Only

1шт.

87454649

CORE-STARTER

Return Number, STARTER, For N.A. Only

1шт.

A187512

HOUSING ASSY.

HOUSING ASSEMBLY - shift lever, Includes: Ref. 38 - 45

1шт.

38

NSS

NOT SOLD SEPARAT

HOUSING - shift lever

1шт.

39

D31954

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

O-RING - housing, lever

1шт.

Part of Starter Bushing Kit P/N A187514

1шт.

40

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

O-RING - housing, solenoid

1шт.

Part of Starter Bushing Kit P/N A187514

1шт.

Part of Starter Shift Lever Kit P/N A187515

1шт.

41

R21582

OIL SEAL

SEAL - oil, housing

1шт.

Part of Starter Bushing Kit P/N A187514

1шт.

42

A49765

BUSHING

BUSHING - armature, starter drive

1шт.

Part of Starter Bushing Kit P/N A187514

1шт.

43

A185121

WASHER

WASHER - brake, lever housing

1шт.

Part of Starter Bushing Kit P/N A187514

1шт.

44

A49567

WICK

WICK - oil, lever housing

1шт.

Part of Starter Bushing Kit P/N A187514

1шт.

45

A49573

PLUG

PLUG - oil wick, lever housing

1шт.

Part of Starter Bushing Kit P/N A187514

1шт.

46

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

BOLT, Hex, 1/4"-28 x 1", G5

5шт.

47

A47523

DRIVE

CLUTCH ASSEMBLY - drive, starter

1шт.

A49773

HOUSING

HOUSING ASSEMBLY - drive, Includes: Ref. 48 - 52

1шт.

48

NSS

NOT SOLD SEPARAT

HOUSING - drive

1шт.

49

A47257

BUSHING

BUSHING - armature, housing

1шт.

Part of Starter Bushing Kit P/N A187514

1шт.

50

A43854

O-RING,3.237" ID x 0.106" THK

O-RING - housing, lever

1шт.

Part of Starter Bushing Kit P/N A187514

1шт.

Part of Starter Shift Lever Kit P/N A187515

1шт.

51

A47888

WICK

WICK - oil, drive housing

1шт.

Part of Starter Bushing Kit P/N A187514

1шт.

52

A47889

PLUG

PLUG - oil wick, housing

1шт.

Part of Starter Bushing Kit P/N A187514

1шт.

53

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

SCREW - drive housing

6шт.

54

A42199

PIN

SHAFT - shift lever

1шт.

Part of Starter Shift Lever Kit P/N A187515

1шт.

55

A47259

O-RING,0.244" ID x 0.391" OD

O-RING - sealing, shaft

1шт.

56

G46146

SNAP RING,#37, Ext

Ring, Snap, , shift lever shaft #37, Ext

1шт.

57

A47258

O-RING,0.369" ID x 0.515" OD

O-RING - large, pivot stud

1шт.

58

A49775

LEVER

LEVER - shift

1шт.

Part of Starter Shift Lever Kit P/N A187515

1шт.

59

R21587

PLUG

PLUG - inspection, lever housing

1шт.

60

A41924

GASKET

GASKET - plug

1шт.

Part of Starter Bushing Kit P/N A187514

1шт.

Part of Starter Shift Lever Kit P/N A187515

1шт.

61

131-489

LOCK NUT,5/16"-24, G8

NUT - hex lock, 5/8 inch NF

1шт.

Part of Starter Bushing Kit P/N A187514

1шт.

Part of Starter Shift Lever Kit P/N A187515

1шт.

62

G46146

SNAP RING,#37, Ext

Ring, Snap, , solenoid plunger #37, Ext

1шт.

63

A43419

SEAT

SEAT - outer, spring

1шт.

64

A41242

SPRING

SPRING - return, plunger

1шт.

65

A43380

BACK-UP RING

SEAT - spring, plunger

1шт.

66

A49589

BOOT

BOOT - plunger

1шт.

67

A41922

WASHER

WASHER - plunger seat

1шт.

68

A49757

PLUNGER

PLUNGER - solenoid

1шт.

69

A49587

CAPTIVE WASHER SCREW,Hex, 1/4" - 20 x 0.50"

SCREW ASSEMBLY - mounting, solenoid

3шт.

70

REF

INSTRUCTION

SOLENOID ASSEMBLY - starter (See Figure 4-98)

1шт.

A187515

KIT

SHIFT LEVER KIT - starter, Includes: Ref 40, 50, 54, 58, 60 and 61

1шт.

A187514

KIT

BUSHING KIT - starter, Includes: Ref. 39 - 45, 49 - 52, 60 and 61 on this Figure and Refs. on Figures 4-94 and 4-96

1шт.
