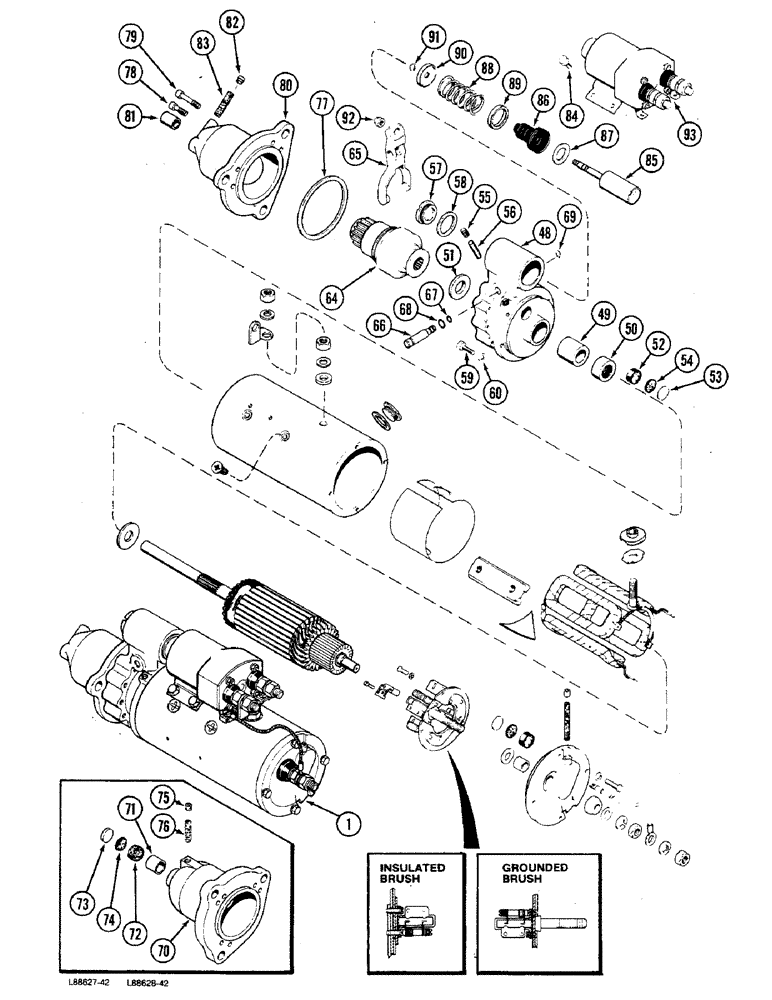

Запчасти Case W36 (3-92) - R26137 STARTER (03) - FUEL SYSTEM

1

R26137

STARTER MOTOR

STARTER ASSEMBLY - engine, Includes: Ref. 48 - 93 and Ref. 1 - 43 on Figure 3-90

1шт.

48

A47896

HOUSING

ASSEMBLY - shift lever (Replaces R21579), Includes: Ref. 49 - 56

1шт.

49

A47261

BUSHING

- housing, 27/32 x 31/32 x 1-1/4 inch (Replaces R21580)

1шт.

50

R21582

OIL SEAL

- oil, 13/16 x 1-3/8 x 7/16 inch

1шт.

51

R15145

DISC

WASHER - brake, starter drive

1шт.

52

A41923

PLUG

- oil reservoir, felt

1шт.

53

41-57

PLUG,Exp, 1 1/32"

- expansion, oil reservoir hole

1шт.

54

A41973

GASKET

- expansion plug

1шт.

55

221-1041

PLUG

- oil wick hole

1шт.

56

R15023

WICK

- oil

1шт.

57

R21587

PLUG

- shift lever housing

1шт.

58

A41924

GASKET

- housing plug

1шт.

59

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

5шт.

60

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

64

A47523

DRIVE

ASSEMBLY - starter

1шт.

65

D32547

LEVER

- shifter

1шт.

66

A42199

PIN

STUD - pivot, shift lever

1шт.

67

A47259

O-RING,0.244" ID x 0.391" OD

- pivot stud, 15/64 x 3/8 x 5/64 inch

1шт.

68

A47258

O-RING,0.369" ID x 0.515" OD

- pivot stud, 3/8 x 1/2 x 1/16 inch (Order A47258)

1шт.

69

G46146

SNAP RING,#37, Ext

Ring, Snap, , pivot stud retaining #37, Ext

1шт.

70

A47898

HOUSING

ASSEMBLY - drive end (If equipped), Includes: Ref. 71 - 76

1шт.

71

A47257

BUSHING

- armature pilot, 5/8 x 3/4 x 7/8 inch (Replaces A40893)

1шт.

72

A41923

PLUG

- oil reservoir, felt

1шт.

73

41-57

PLUG,Exp, 1 1/32"

- expansion, oil reservoir hole

1шт.

74

A41973

GASKET

- expansion plug

1шт.

75

221-1041

PLUG

- oil wick hole

1шт.

76

R15023

WICK

- oil (Replaces R15023)

1шт.

77

R21562

GASKET

- drive end housing to shifter lever housing

1шт.

78

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

SCREW - drive end housing, socket head, 5/16 NC x 7/8 inch

1шт.

79

D32488

HEX SOC SCREW,5/16" - 18 x 1.50"

SCREW - drive end housing, socket head, 5/16 NC x 1-1/2 inch

5шт.

80

A47898

HOUSING

ASSEMBLY - drive end (If equipped), Includes: Ref. 81 - 83

1шт.

81

A47257

BUSHING

- armature pilot

1шт.

82

A47889

PLUG

- oil wick

1шт.

83

A47888

WICK

- oil

1шт.

84

R15159

SCREW,Hex, 1/4" - 20 x 3/8", w/ LW

- solenoid mounting, hex, 1/4 NC x 3/8 inch

4шт.

85

A42309

PLUNGER

- solenoid core

1шт.

86

A42308

BOOT

- plunger

1шт.

87

A41922

WASHER

SEAT - boot, 7/8 x 1-3/8 x 1/16 inch

1шт.

88

A41242

SPRING

- plunger return

1шт.

89

A43380

BACK-UP RING

SEAT - spring, with 1-1/4 inch hole

1шт.

90

A43419

SEAT

- spring, with 3/8 inch hole

1шт.

91

G46146

SNAP RING,#37, Ext

Ring, Snap, , plunger spring retaining #37, Ext

1шт.

92

131-31

LOCK NUT,5/16"-24, G8

NUT - plunger to shifter lever, lock, 5/16 inch

1шт.

93

REF

INSTRUCTION

SOLENOID ASSEMBLY - starter (See Fig 3-90)

1шт.
