Запчасти Case W36 (3-88) - L114250 ALTERNATOR, 65 AMPERE - 24 VOLT (03) - FUEL SYSTEM

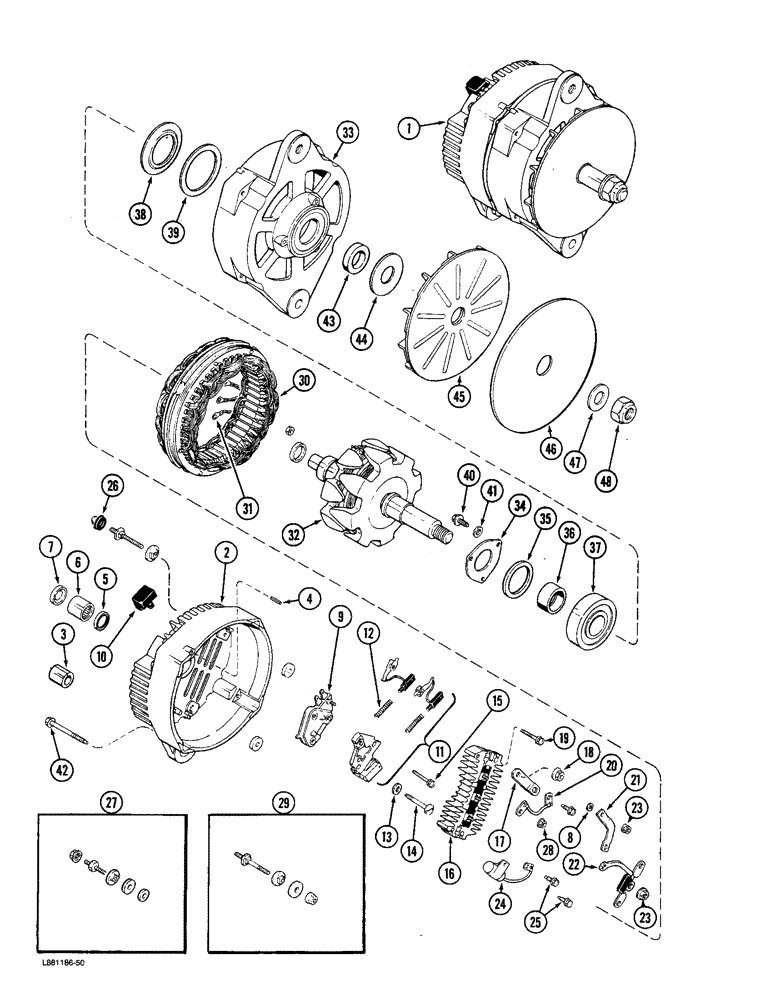

Схема запчастей Case W36 - (3-88) - L114250 ALTERNATOR, 65 AMPERE - 24 VOLT (03) - FUEL SYSTEM

Артикул

Название

Примечание

Количество

1

L114250

ALTERNATOR ASSEMBLY - J I Case installed (Delco-Remy no. 1105474) (Order A49652), Includes: Ref. 2 - 48

1шт.

1

A49652

ALTERNATOR

ALTERNATOR ASSEMBLY - repair (Without fan and pulley), Includes: Ref. 2 - 48

1шт.

1

197231A1R

REMAN-ALTERNATOR

W36 CASE WHEEL LOADER (PRIOR TO S/N 17754000), ALTERNATOR ASSEMBLY, Reman for New PN A49652

1шт.

1

197231A1C

CORE-ALTERNATOR

Return Number

1шт.

1

87454652

REMAN-ALTERNATOR

65A; For N.A. only

1шт.

1

87454653

CORE-ALTERNATOR

Return number - For N.A. only

1шт.

2

A49626

FUNNEL

FRAME - slip ring end

1шт.

3

A49631

BUSHING

BUSHING, Mounting hinge

1шт.

4

138-2012

PIN,1/8" x 1/2", Coiled

PIN, , Locating, slip ring frame 1/8" x 1/2", Coiled

1шт.

5

A43693

SEAL

SEAL - oil, slip ring frame

1шт.

6

A49630

BEARING ASSY

BEARING - roller, slip ring end

1шт.

7

A43697

PLUG

PLUG - grease

1шт.

8

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

1шт.

9

A46890

REGULATOR

REGULATOR - voltage

1шт.

10

A49628

COVER

SPARE PART COVER

1шт.

11

A45222

BRUSH, COMMUTATOR

BRUSH HOLDER ASSEMBLY - brush (With brushes), Includes: Ref. 12

1шт.

12

A47989

SPRING

SPRING - brush tension

2шт.

13

A45367

WASHER

WASHER - brush holder insulator, 3/16 x 7/16 x 1/16 inch

2шт.

14

A45223

SCREW,Spcl, #8 - 32 x 1 1/8"

SCREW - brush holder (Insulator)

2шт.

15

A49632

CAPTIVE WASHER SCREW,Hex, #8 - 32 x 1.25"

SCREW - brush holder (Grounded)

1шт.

16

A45557

RECTIFIER

RECTIFIER ASSEMBLY - bridge

1шт.

17

A45543

CONNECTOR, ELEC

SPARE PART CONNECTOR - battery terminal to rectifier bridge

1шт.

18

A45368

NUT

NUT - regulator stud, no. 8-32 NC

1шт.

19

A45221

SCREW,Hex Wshr Hd, #8 - 32 x 0.99"

SCREW - rectifier bridge

2шт.

20

A45369

ELECTRICAL WIRE

WIRE LEAD - terminal, Serial Range: stud-rectifier

1шт.

21

A49638

ROD, CONNECTING

CONNECTOR - relay terminal

1шт.

22

A47846

DIODE

DIODE - trio

1шт.

23

129-16

NUT,#8-32

NUT, , Rectifier studs #8-32

3шт.

24

A47734

CAPACITOR

CAPACITOR ASSEMBLY - with bracket

1шт.

25

A45228

SELF-TAP SCREW,Hex Wash Hd, #8-32 x .59", Spc

SCREW - capacitor and lead

3шт.

26

A45562

CAP

CAP - relay terminal cover (Rubber)

1шт.

27

A45549

TERMINAL CONNECTOR

PACKAGE - battery terminal

1шт.

28

A47678

NUT

NUT ASSEMBLY - battery terminal

1шт.

29

A49633

PACKAGE

PACKAGE - relay terminal

1шт.

30

A49629

STATOR

STATOR ASSEMBLY - alternator

1шт.

31

A45545

CLIP

SPARE PART CLIP - stator lead

3шт.

32

A47932

ROTOR

ROTOR ASSEMBLY - alternator

1шт.

33

A49627

FRAME

FRAME - drive end

1шт.

34

A25986

LARGE PLATE

PLATE, LARGE RETAINER - bearing

1шт.

35

A42135

WASHER

WASHER - bearing retainer (Felt)

1шт.

36

A45563

COLLAR - inside

1шт.

37

A43680

BALL BEARING,0.9843" ID x 2.4409" OD x 0.6693"

BEARING - drive end

1шт.

38

A25988

RETAINER

PLATE - bearing

1шт.

39

A25987

GASKET

SPARE PART GASKET - bearing plate

1шт.

40

A49634

GASKET

SCREW - bearing retainer to drive end frame

3шт.

41

A45564

WASHER, LOCK

SPARE PART WASHER - spring

3шт.

42

A45542

FLANGE BOLT

BOLT - through

4шт.

43

A43685

COLLAR

COLLAR - outside

1шт.

44

A45560

SHIELD

SHIELD - dust

1шт.

45

A49636

FAN

FAN - alternator

1шт.

46

A49637

FAN

BAFFLE

1шт.

47

A40792

WASHER

WASHER - shaft drive end

1шт.

48

A49635

NUT

NUT - shaft, drive end

1шт.

Выбрано товаров: 53
